The Fluke Networks TS19 Test Set combines all the essential test set features at an affordable price. This test set was specifically designed for in-house telecom technicians. Its high impedance monitor prevents accidental disruption of service from clipping onto a data line while in monitor mode, thus ensuring the integrity of critical data lines. Features such as tone (DTMF) or pulse operation, talk/monitor capabilities, polarity test button and last number redial make this test set the perfect combination of features and price.
Product Highlights
TS19 telephone test equipment features DataSafe™, Tone or Pulse operation, Talk/Monitor capabilities and last number redial.
- High impedance DataSafeTM operation in monitor mode.
- Tone (DTMF) and pulse operation
- Last number redial
- Polarity indication in talk mode
Electrical
-
Loop Limit: 2.4 kΩ maximum @ 48 V DC (≈15 mA min loop current)
-
DC Resistance (Talk Mode): ~150 Ω at 80 mA
-
AC Impedance (Monitor Mode):
-
Rotary Dial Output:
-
Pulsing rate: 10 pps ±0.5 pps
-
Break: 60% ±2%
-
Interdigit interval: typically 800 ms
-
Leakage during break: > 50 kΩ
-
DTMF Output:
-
Tone frequency error: ±1% max
-
Level per tone pair: +2 dBm max, –8 dBm min
-
Difference high vs low tone: ≤4 dB
Physical
-
Length: 8.75 in (22.2 cm)
-
Width: 2.375 in (6.03 cm)
-
Height: 3.375 in (8.57 cm)
-
Weight: max 10.8 oz (0.307 kg)
Environmental
-
Operating Temperature: –5 °C to +40 °C
-
Storage Temperature: –40 °C to +66 °C
-
Drop Test: 1 m, 4 drops
-
Altitude: up to 3,000 m (10,000 ft)
-
Humidity: 10%–80% RH, non‑condensing
Regulatory & Compliance
-
Complies with:
-
47 CFR 15B, ICES‑003, AS/NZS 3548
-
EMC Directive 89/336/EEC (EN 55022, EN 61326, EN 61000‑4‑2/3)
-
Low‑Voltage Directive 73/23/EEC (EN 61010‑1)
-
Certified under CSA‑C22.2 No. 60950‑1‑03, CSA‑C22.2 No. 1010.1‑92/B‑97, UL/ANSI 3111‑1

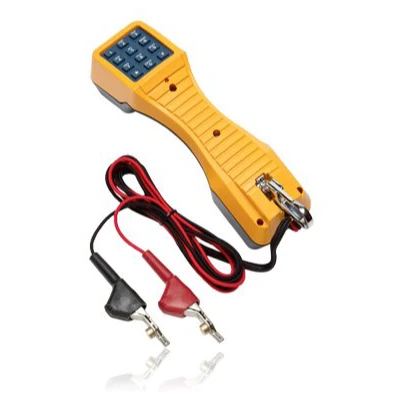

TS19 test set with banana jacks to alligator clips
TS19 test set with banana jacks to alligator clips
