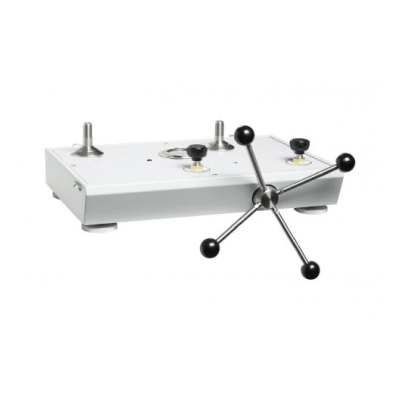

Product overview: Fluke Calibration P5513 Pneumatic Comparison Test Pump

Pressure range 0 to 3,000 psi (210 bar)

This pneumatic comparison test pump is designed for testing pressure measuring instruments against master test instruments. This cost effective instrument provides precise control for important calibration requirements and include many features found in our popular line of pneumatic deadweight testers.

*Note --- Unit requires pressure source (i.e. nitrogen bottle) for operation.

Key Features

  • High pressure pneumatic operation
  • Screw press for fine pressure adjustments
  • High quality needle valves for fine control
  • Test port adapters which require no PTFE tape or wrenches
  • Sturdy carrying case with lid

Specifications: Fluke Calibration P5513 Pneumatic Comparison Test Pump

Specifications
Pressure Range 0 to 3,000 psi (210 bar)
Instrument Size (W x D x H) 17.5 x 12 x 8.5 in (440 x 300 x 215 mm)
Instrument Weight 17 lbs ( 8 kg)
Test Port Adapters 2 sets, 1/8, 1/4, 3/8 and 1/2 NPT or BSP
Gas Supply Connection 1/4 NPT female

Accessories: Fluke Calibration P5513 Pneumatic Comparison Test Pump

Adapters and cables (2)

  • 5540 Metric and 5541 BSP | Adapter Sets
  • P5544 Two Gauge Stand

Accessories: Fluke Calibration P5513 Pneumatic Comparison Test Pump

Adapters and cables (2)

  • 5540 Metric and 5541 BSP | Adapter Sets
  • P5544 Two Gauge Stand

Product overview: Fluke Calibration P5513 Pneumatic Comparison Test Pump

Pressure range 0 to 3,000 psi (210 bar)

This pneumatic comparison test pump is designed for testing pressure measuring instruments against master test instruments. This cost effective instrument provides precise control for important calibration requirements and include many features found in our popular line of pneumatic deadweight testers.

*Note --- Unit requires pressure source (i.e. nitrogen bottle) for operation.

Key Features

  • High pressure pneumatic operation
  • Screw press for fine pressure adjustments
  • High quality needle valves for fine control
  • Test port adapters which require no PTFE tape or wrenches
  • Sturdy carrying case with lid

Specifications: Fluke Calibration P5513 Pneumatic Comparison Test Pump

Specifications
Pressure Range 0 to 3,000 psi (210 bar)
Instrument Size (W x D x H) 17.5 x 12 x 8.5 in (440 x 300 x 215 mm)
Instrument Weight 17 lbs ( 8 kg)
Test Port Adapters 2 sets, 1/8, 1/4, 3/8 and 1/2 NPT or BSP
Gas Supply Connection 1/4 NPT female

Accessories: Fluke Calibration P5513 Pneumatic Comparison Test Pump

Adapters and cables (2)

  • 5540 Metric and 5541 BSP | Adapter Sets
  • P5544 Two Gauge Stand

Accessories: Fluke Calibration P5513 Pneumatic Comparison Test Pump

Adapters and cables (2)

  • 5540 Metric and 5541 BSP | Adapter Sets
  • P5544 Two Gauge Stand
