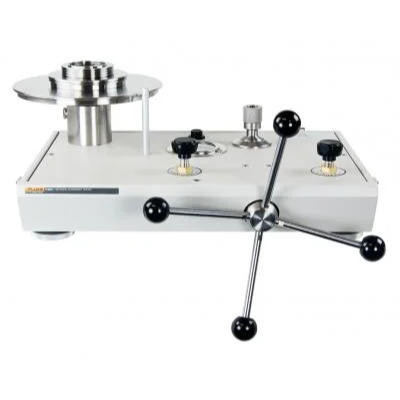

Product overview: Fluke Calibration P3031 and P3032 Pneumatic Deadweight Testers

The Models P3031 and P3032 feature a gas driven oil lubricated piston/cylinder assembly which ensures that the instrument is less susceptible to performance issues due to contamination or the operating environment. These gas driven deadweight testers eliminate the maintenance issues associated with conventional high pressure pneumatic deadweight testers. The supply gas acts directly on the oil lubricated pistons so there is no effect on system accuracy.

Key Features

  • Pressure ranges to 2000 psi (140 bar)
  • 0.015% of reading accuracy (0.008% optional)
  • Screw press for fine pressure control
  • Piston flotation indicator
  • Mounted spirit level with adjustable feet
  • Series 3 non-magnetic stainless steel weights

Specifications: Fluke Calibration P3031 and P3032 Pneumatic Deadweight Testers

Accuracy
Accuracy* ±0.015% of reading (±0.008% optional)
*Accuracy based on % of reading from 10% to 100% of the piston range when used in accordance with the corrections found on the calibration certificate. Below 10% ± (accuracy class) x 10% of the piston range.

Mass and PCU Materials of Construction
Standard weight material Series 3 non-magnetic austenitic stainless steel
Weight density 7.8 g/cm³
Optional fractional weights Solution heat treated aluminum
Weight density 2.7 g/cm³
Models (P) P3031, P3032 (P & V) Piston Material: Tungsten carbide
Cylinder Material: Martensitic steel
Coefficient of Expansion: 16.5 ppm/°C

General
Test port adaptors 1/8, 1/4, 3/8 and ½ NPT or BSP
Instrument weight 24 lbs
Instrument size 17.5 W x 12 D x 8.5 H
Mass set weight (typical) 65 lbs

Minimum Standard Weight Increments
P3016, P3031, P3032 1 psi, (0.1bar)

Optional Fractional Weights
P3014, P3015, P3025 Pressure 0.1 psi (0.01 bar)

Built-in Hand Pumps
Pressure mode Max pressure 300 psi (20 bar)
Vacuum mode To 90% vacuum

Operating Fluid for Liquid Lubricated Models
55-655 mineral oil (standard)
Krytox for oxygen-safe applications (optional)

Options
PressCal Software Windows-based software program that allows users to easily apply all necessary corrections to enhance the deadweight tester performance. Calibration details are then stored and/or used to automatically create a calibration certificate. PressCal is provided as standard with all 0.008% instruments.
Krytox As operating fluid for liquid lubricated gas operated models.
