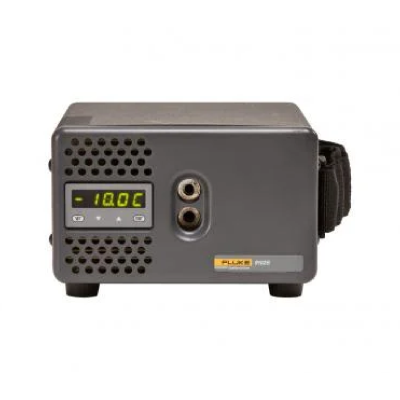

Product overview: Fluke Calibration 9102S Handheld Dry-Well

9102S Dry-Well


For work in the temperature range of –10°C to 122°C, 9102S dry-well is another first in the industry, featuring stability to ±0.05°C.

This dry-well is only four inches high and six inches wide, achieves temperatures as low as –10°C, includes a NIST-traceable calibration, and is stable to ±0.05°C. The Model 9102S is excellent for dial gauges, digital thermometers, bulb switches, and other sensors that need calibration below ambient.

The 9102S has two wells so you can use one for a reference thermometer to increase accuracy. Both wells are 1/2 inch in diameter, and each has inserts available for almost any sensor size.

Key Features

  • Temperature ranges from –10°C to 375°C.
  • Accuracy to ±0.25°C, with stability of ±0.05°C at 0°C.
  • Equipped with an RS-232 interface for connectivity.

Specifications: Fluke Calibration 9102S Handheld Dry-Well

Specifications 9100S 9102S
Range 35°C to 375°C (95°F to 707°F) –10°C to 122°C (14°F to 252°F) at 23°C ambient
Accuracy ±0.25°C at 50°C; ±0.25°C at 100°C; ±0.5°C at 375°C ±0.25°C
Stability ±0.07°C at 50°C; ±0.1°C at 100°C; ±0.3°C at 375°C ±0.05°C
Well-to-well uniformity ±0.2°C with sensors of similar size at equal depths within wells
Heating times 35°C to 375°C: 9.5 minutes Ambient to 100°C: 10 minutes
Stabilization 5 minutes 7 minutes
Cooling times 375°C to 100°C: 14 minutes Ambient to 0°C: 10 minutes
Well depth 102 mm (4 in); 1.6 mm (1/16 in) hole is 89 mm (3.5 in) deep 102 mm (4 in)
Removable inserts N/A Available in sizes from 1.6 mm (1/16 in) to 11.1 mm (7/16 in) [6.4 mm (1/4 in) and 4.8 mm (3/16 in) included]
Power 115 V AC (±10%), 55–65 Hz, 1.5 A or 230 V AC (±10%), 0.8 A, 45–55 Hz, 175 W 94-234 V AC (±10%), 50/60 Hz, 60 W; or 12 V DC
Size (H x W x D) 57 x 125 x 150 mm (2.25 x 4.9 x 6.1 in) 99 x 140 x 175 mm (3.9 x 5.5 x 6.9 in)
Weight 1 kg (2 lb 3 oz) 1.8 kg (4 lb)
Computer interface RS-232 included
NIST-traceable calibration Data at 50°C, 100°C, 150°C, 200°C, 250°C, 300°C and 375°C Data at –10°C, 0°C, 25 °C, 50°C, 75 °C,100°C and 122°C

Accessories: Fluke Calibration 9102S Handheld Dry-Well

Calibration inserts (9)

  • 3102-0 | Insert, AL 1/2" X 4" blank
  • 3102-1 | Insert, AL 1/2" X 4" 1/16"
  • 3102-2 | Insert, AL 1/2" X 4" 1/8"
  • 3102-3 | Insert, AL 1/2" X 4" 3/16"
  • 3102-4 | Insert, AL 1/2" X 4" 1/4"
  • 3102-5 | Insert, AL 1/2" X 4" 5/16"
  • 3102-6 | Insert, AL 1/2" X 4" 3/8"
  • 3102-7 | Insert, AL 1/2" X 4" 7/16"
  • 3102-8 | Insert, AL 1/2" X 4" 5/32"

Cases and holsters (2)

  • 9300 | Rugged Carrying Case: 9100S
  • 9308 |Rugged Carrying Case

Adapters and cables (1)

  • HART DRYWELL CABLE | An interface cable kit that includes a null modem to connect the Fluke 754 with Fluke Calibration dry-wells and Micro-Baths to automate

Accessories: Fluke Calibration 9102S Handheld Dry-Well

Calibration inserts (9)

  • 3102-0 | Insert, AL 1/2" X 4" blank
  • 3102-1 | Insert, AL 1/2" X 4" 1/16"
  • 3102-2 | Insert, AL 1/2" X 4" 1/8"
  • 3102-3 | Insert, AL 1/2" X 4" 3/16"
  • 3102-4 | Insert, AL 1/2" X 4" 1/4"
  • 3102-5 | Insert, AL 1/2" X 4" 5/16"
  • 3102-6 | Insert, AL 1/2" X 4" 3/8"
  • 3102-7 | Insert, AL 1/2" X 4" 7/16"
  • 3102-8 | Insert, AL 1/2" X 4" 5/32"

Cases and holsters (2)

  • 9300 | Rugged Carrying Case: 9100S
  • 9308 |Rugged Carrying Case

Adapters and cables (1)

  • HART DRYWELL CABLE | An interface cable kit that includes a null modem to connect the Fluke 754 with Fluke Calibration dry-wells and Micro-Baths to automate

Product overview: Fluke Calibration 9102S Handheld Dry-Well

9102S Dry-Well


For work in the temperature range of –10°C to 122°C, 9102S dry-well is another first in the industry, featuring stability to ±0.05°C.

This dry-well is only four inches high and six inches wide, achieves temperatures as low as –10°C, includes a NIST-traceable calibration, and is stable to ±0.05°C. The Model 9102S is excellent for dial gauges, digital thermometers, bulb switches, and other sensors that need calibration below ambient.

The 9102S has two wells so you can use one for a reference thermometer to increase accuracy. Both wells are 1/2 inch in diameter, and each has inserts available for almost any sensor size.

Key Features

  • Temperature ranges from –10°C to 375°C.
  • Accuracy to ±0.25°C, with stability of ±0.05°C at 0°C.
  • Equipped with an RS-232 interface for connectivity.

Specifications: Fluke Calibration 9102S Handheld Dry-Well

Specifications 9100S 9102S
Range 35°C to 375°C (95°F to 707°F) –10°C to 122°C (14°F to 252°F) at 23°C ambient
Accuracy ±0.25°C at 50°C; ±0.25°C at 100°C; ±0.5°C at 375°C ±0.25°C
Stability ±0.07°C at 50°C; ±0.1°C at 100°C; ±0.3°C at 375°C ±0.05°C
Well-to-well uniformity ±0.2°C with sensors of similar size at equal depths within wells
Heating times 35°C to 375°C: 9.5 minutes Ambient to 100°C: 10 minutes
Stabilization 5 minutes 7 minutes
Cooling times 375°C to 100°C: 14 minutes Ambient to 0°C: 10 minutes
Well depth 102 mm (4 in); 1.6 mm (1/16 in) hole is 89 mm (3.5 in) deep 102 mm (4 in)
Removable inserts N/A Available in sizes from 1.6 mm (1/16 in) to 11.1 mm (7/16 in) [6.4 mm (1/4 in) and 4.8 mm (3/16 in) included]
Power 115 V AC (±10%), 55–65 Hz, 1.5 A or 230 V AC (±10%), 0.8 A, 45–55 Hz, 175 W 94-234 V AC (±10%), 50/60 Hz, 60 W; or 12 V DC
Size (H x W x D) 57 x 125 x 150 mm (2.25 x 4.9 x 6.1 in) 99 x 140 x 175 mm (3.9 x 5.5 x 6.9 in)
Weight 1 kg (2 lb 3 oz) 1.8 kg (4 lb)
Computer interface RS-232 included
NIST-traceable calibration Data at 50°C, 100°C, 150°C, 200°C, 250°C, 300°C and 375°C Data at –10°C, 0°C, 25 °C, 50°C, 75 °C,100°C and 122°C

Accessories: Fluke Calibration 9102S Handheld Dry-Well

Calibration inserts (9)

  • 3102-0 | Insert, AL 1/2" X 4" blank
  • 3102-1 | Insert, AL 1/2" X 4" 1/16"
  • 3102-2 | Insert, AL 1/2" X 4" 1/8"
  • 3102-3 | Insert, AL 1/2" X 4" 3/16"
  • 3102-4 | Insert, AL 1/2" X 4" 1/4"
  • 3102-5 | Insert, AL 1/2" X 4" 5/16"
  • 3102-6 | Insert, AL 1/2" X 4" 3/8"
  • 3102-7 | Insert, AL 1/2" X 4" 7/16"
  • 3102-8 | Insert, AL 1/2" X 4" 5/32"

Cases and holsters (2)

  • 9300 | Rugged Carrying Case: 9100S
  • 9308 |Rugged Carrying Case

Adapters and cables (1)

  • HART DRYWELL CABLE | An interface cable kit that includes a null modem to connect the Fluke 754 with Fluke Calibration dry-wells and Micro-Baths to automate

Accessories: Fluke Calibration 9102S Handheld Dry-Well

Calibration inserts (9)

  • 3102-0 | Insert, AL 1/2" X 4" blank
  • 3102-1 | Insert, AL 1/2" X 4" 1/16"
  • 3102-2 | Insert, AL 1/2" X 4" 1/8"
  • 3102-3 | Insert, AL 1/2" X 4" 3/16"
  • 3102-4 | Insert, AL 1/2" X 4" 1/4"
  • 3102-5 | Insert, AL 1/2" X 4" 5/16"
  • 3102-6 | Insert, AL 1/2" X 4" 3/8"
  • 3102-7 | Insert, AL 1/2" X 4" 7/16"
  • 3102-8 | Insert, AL 1/2" X 4" 5/32"

Cases and holsters (2)

  • 9300 | Rugged Carrying Case: 9100S
  • 9308 |Rugged Carrying Case

Adapters and cables (1)

  • HART DRYWELL CABLE | An interface cable kit that includes a null modem to connect the Fluke 754 with Fluke Calibration dry-wells and Micro-Baths to automate
