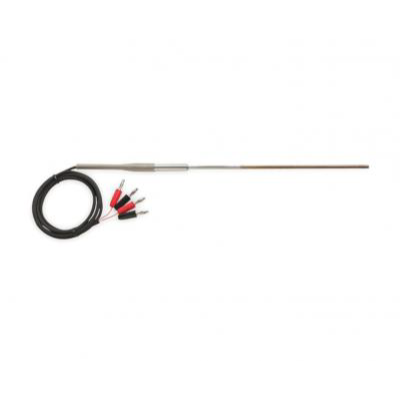

Fluke 884X-RTD 100 Ohm RTD Temperature Probe

Key Features

Manufactured using a coil suspension element design for increased shock and vibration resistance, Mineral-insulated sheath with a minimum bend radius of 19 mm (3/4 in) for flexibility and durability

Specifications: Fluke 884X-RTD 100 Ohm RTD Temperature Probe

Specifications
Resistance	Nominal 100 Ω
Temperature coefficient	0.00385 Ω/Ω ºC nominal
Temperature range	-200 C to 300 ºC (transition and cable temperature: 0 ºC to 25% ºC)
Drift rate	+ 0.13 ºC at 0 ºC after 1000 hours at 300 ºC
Sheath Material	316 stainless steel
Leads	PTFE-insulated, nickel-plated stranded copper, 22 AWG
Termination	4-wire banana
Time constant	Four seconds maximum for 63.2% response to step change in water moving at 3 fps
Bending radius	19 mm (3/4 in) except for 50 mm (2 in) area of sheath near tip
Calibration	Includes manufacturer’s NIST-traceable calibration and table with R vs. T values in 1 ºC increments from -196 ºC to 300 ºC. Callendar-van Dusen coefficients included
Immersion	At least 100 mm (4 in) recommended
Accuracy (includes calibration uncertainty and short-term stability)	±0.50 ºC at -196 ºC ±0.050 ºC at 0 ºC ±0.052 ºC at 200 ºC ±0.055 ºC at 300 ºC
Size	9 in L x 3/16 in diameter
Marking	Each RTD is marked with the Fluke name and part number

N/A

Fluke 884X-RTD 100 Ohm RTD Temperature Probe

Key Features

Manufactured using a coil suspension element design for increased shock and vibration resistance, Mineral-insulated sheath with a minimum bend radius of 19 mm (3/4 in) for flexibility and durability

Specifications: Fluke 884X-RTD 100 Ohm RTD Temperature Probe

Specifications
Resistance	Nominal 100 Ω
Temperature coefficient	0.00385 Ω/Ω ºC nominal
Temperature range	-200 C to 300 ºC (transition and cable temperature: 0 ºC to 25% ºC)
Drift rate	+ 0.13 ºC at 0 ºC after 1000 hours at 300 ºC
Sheath Material	316 stainless steel
Leads	PTFE-insulated, nickel-plated stranded copper, 22 AWG
Termination	4-wire banana
Time constant	Four seconds maximum for 63.2% response to step change in water moving at 3 fps
Bending radius	19 mm (3/4 in) except for 50 mm (2 in) area of sheath near tip
Calibration	Includes manufacturer’s NIST-traceable calibration and table with R vs. T values in 1 ºC increments from -196 ºC to 300 ºC. Callendar-van Dusen coefficients included
Immersion	At least 100 mm (4 in) recommended
Accuracy (includes calibration uncertainty and short-term stability)	±0.50 ºC at -196 ºC ±0.050 ºC at 0 ºC ±0.052 ºC at 200 ºC ±0.055 ºC at 300 ºC
Size	9 in L x 3/16 in diameter
Marking	Each RTD is marked with the Fluke name and part number

N/A
