Fluke 830 Laser Shaft Alignment Tool Cable
The Fluke 830 Laser Shaft Alignment Tool is the ideal exam tool to accurateness-align rotating shafts in your gift. It's a known fact - all rotating machinery is susceptible to misalignment. If you'regarding still using rulers and dial indicators to ensure your rotating machinery is properly related, you could be losing thousands of dollars per year in replacement bearing costs, hours of unnecessary repair era, and crippling inadvertent downtime, not to mention taking years off your robot's useful vigor.
The Fluke 830 Laser Shaft Alignment tool is easy-to-use, giving you fast, accurate and actionable answers that will save your tree-tree-reforest taking place and dispensation. When it comes to laser shaft alignment, data is allowable but answers are greater than before. Now you can explore the Fluke 830 Laser Shaft Alignment Tool Cable Price in Bangladesh, then this is the great place to get the best one with reliability From Tools Bangladesh.
Unlike using the straightedge method or dial indicators the Fluke 830 performs the complicated alignment calculations for you, meaning you'll have the answers you habit to unexpectedly align your robot and profit your plant taking place and doling out fast. An enhanced fanatic interface provides easy to appointment results that don't require extensive alignment knowledge and the unique "All-in-One" upshot screen that shows you both coupling results and feet corrections (vertical and horizontal) in definite terms making it easy to meet the expense of a complimentary right of entry corrective perform.
Since robot downtime is costly, exam repeatability is valuable. The Fluke 830 uses a patented single laser accuracy alignment system that provides accurate and repeatable measurement results appropriately you can be assured you'regarding addressing misalignment problems properly.
Other useful features:

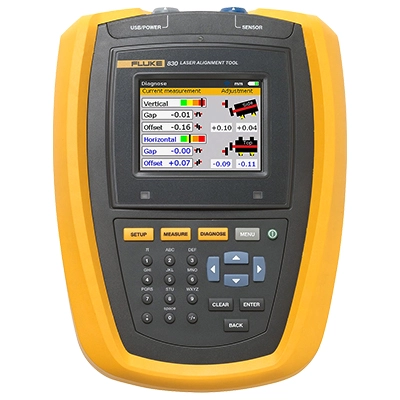

Includes a unique All-in-One result screen that shows both coupling results and vertical and horizontal feet corrections, making it easy at the forefront to an friendship corrective feint
Features a working robot tolerance check that provides continuous evaluation of alignment adjustments correspondingly you know later your robot is in the enough range
Offers unique extend mode to handle terrifying misalignment by nearly increasing laser detector size
Provides auto save and resume deed to ensure your data is there together amid you need it
Key Features: Fluke 830 Laser Shaft Alignment Tool Cable
- Easy to use tool for precision alignment of rotating shafts
- Features single laser measurement technology to reduce errors from backlash and enhance accuracy
- Provides an intuitive, guided user interface to quickly and easily complete machine alignments
- Includes compass measurement mode to enable flexible, reliable, and repeatable measurements using an activated electronic inclinometer
Specifications: Fluke 830 Laser Shaft Alignment Tool Cable
| Computer |
| CPU |
Intel XScale PXA270 running at 312 MHz |
| Memory |
64 MB RAM, 64 MB flash |
| Display |
Type: TFT, transmissive (sunlight-readable), 65,535 colors, backlit LED |
| Integrated light sensor for automated adjustment of the brightness to the display according to the lighting conditions which extends battery life |
Resolution: 320 x 240 pixel;
Dimensions: 89 mm (3.5 in) diagonal |
| Keyboard elements: Setup, measure, diagnose, menu, clear, enter, back keys, navigation cursor cross, alphanumeric keyboard and on/off button |
| LED indicators |
Multicolor LED for laser status and alignment condition |
| Multicolor LED for battery status |
| Power supply |
Integrated Lithium-ion polymer rechargeable battery: 7.4 V/ 2.6 Ah (for optional computer) with typical operating time of 17 hours (based upon an operating cycle of 33 % measurement, 33 % computation and 33 % 'sleep' mode) |
| External interface |
USB host and USB device (slave) |
| Direct communication cable between the sensor module and the 830 Laser Alignment Tool |
| RS232 (serial) for sensor |
| AC adapter/charger socket |
| Environmental protection |
IP 65 (dustproof and water spray resistant), shockproof |
| Relative humidity 10 % to 90 % |
| Operating temperature |
-10 °C to 50 °C (14 °F to 122 °F) |
| Storage temperature |
-20 °C to 60 °C (-4 °F to 140 °F) |
| Dimensions |
220 mm x 165 mm x 45 mm (8.7 in x 6.5 in x 1.8 in) |
| Weight |
742 g (1.64 lb) |
| Sensor |
| Measurement principle |
Coaxial, reflected laser beam |
| Environmental protection |
IP 67 (submersible, dustproof) |
| Ambient light protection |
Yes |
| Storage temperature |
-20 °C to 80 °C (-4 °F to 176 °F) |
| Operating temperature |
0 °C to 55 °C (32 °F to 131 °F) |
| Dimensions |
107 mm x 70 mm x 49 mm (4 1/4 in x 2 3/4 in x 2 in) |
| Weight |
177 g (6 1/2 oz) |
| Laser |
Type: Ga-Al-As semiconductor laser |
| Wavelength (typical) 675 nm (red, visible) |
| Safety class: Class 2, FDA 21 CFR 1000 and 1040 |
| Beam power: < 1 mW |
| Safety precautions: Do not look into laser beam |
| Detector |
Measurement area: unlimited, dynamically extendible
(U.S. Patent 6,040,903) |
| Resolution: 1 μm; Accuracy (avg): > 98 % |
| Inclinometer |
Measurement range: 0° to 360°; Resolution: < 1° |
| Prism |
| Type |
90° roof prism; Accuracy (avg): > 99 % |
| Environmental protection |
IP 67 (submersible, dustproof) |
| Operating temperature |
-20 °C to 60 °C (-4 °F to 140 °F) |
| Storage temperature |
-20 °C to 80 °C (-4 °F to 176 °F) |
| Dimensions |
100 mm x 41 mm x 35 mm (4 in x 1 5/8 in x 1 3/8 in) |
| Weight |
65 g (2 1/2 oz.) |
| Carrying case |
| Dimensions |
565 mm x 343 mm x 127 mm (22 1/4 in x 13 1/2 in x 5 in) |
| Weight, including all standard parts |
5.6 kg (12.3 lb) |
Models: Fluke 830 Laser Shaft Alignment Tool Cable
Fluke 830/CABLE
Fluke 830 CABLE Laser Shaft Alignment Tool

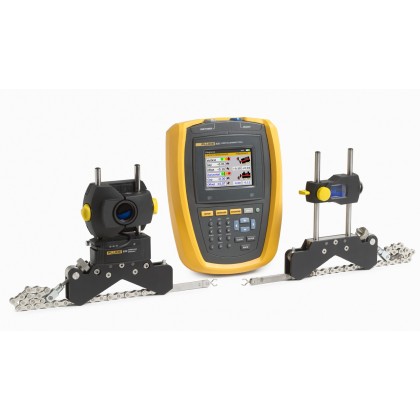

Includes:
- Fluke 830 Laser Alignment Tool
- Laser sensor
- Laser prism
- Chain-type mounting bracket with 150 mm support posts (2x)
- 300 mm support post (4x)
- Micro fiber cleaning cloth
- Sensor cable
- PC cable
- USB drive
- USB drive cable
- Tape measure
- Wireless Bluetooth® module
- Power adapter
- Instruction kit and carrying case
