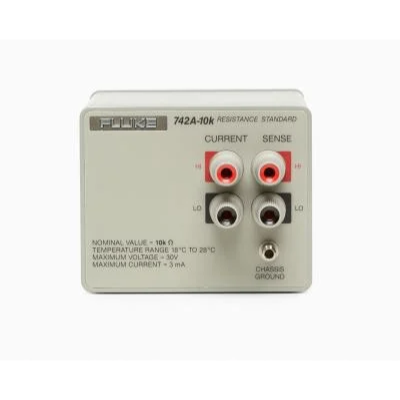

Product overview: 742A Resistance Standards

High accuracy working standards for on-site resistance calibration

  • Small and rugged resistance calibrators
  • No oil or air baths required
  • 18° to 28° C operating range
  • Six-month stability to 2.5 ppm
  • Supplied with temperature characterization

742A Resistance Standards are high accuracy working standards for precision, on-site resistance calibration. Their excellent temperature stability allows them to be used from 18°C to 28°C with typically less than 2 ppm degradation. Using the calibration table supplied with the standards, which lists corrections in 0.5°C increments, this uncertainty can be reduced to near zero. No cumbersome oil or air baths are required.

Because 742A Resistance Standards are small and rugged, they are easy to transport. Care has been taken to reduce resistance changes brought about by thermal and mechanical shock. Retrace (permanent shift in resistance) is typically less than 2 ppm after cycling between 0°C and 40°C.

The 742A-1 1 Ω and the 742A-10k 10 kΩ units are ideally suited for Artifact Calibration of 5700A/5720A Calibrators. The other values can be used to verify the calibration if you desire.

Key Features

  • High-accuracy working standards for on-site resistance calibration.
  • Small, rugged, and easy to transport.
  • Temperature stability and six-month stability to 2.5 ppm.
  • Temperature range: 18°C to 28°C.
  • Designed to reduce resistance changes caused by thermal and mechanical shock.

Specifications: 742A Resistance Standards

General Specifications
12 Values from 1Ω to 19 MΩ in x1 and x1.9 Best 1 Year Specification: ±4 ppm
Operating Temperature 18-28°C
Storage Temperature  0-40°C
Retrace Error (hysteresis) 23°C-18°C-23°C cycle: Negligible resistance shift
23°C-28°C-23°C cycle: Negligible resistance shift
23°C-0°C-23°C cycle: < 2 ppm resistance shift
23°C-40°C-23°C cycle: < 2 ppm resistance shift
Calibration Documentation 17025 accredited report of calibration included
Size 8.6 cm H x 10.5 cm W x 12.7 cm D (3.4 in H x 4.15 in W x 5 in D
Weight .68 kg to .91 kg (1.5 lbs. to 2 lbs.) depending on the model

Accessories: 742A Resistance Standards

Test leads, probes and clips (1)

  • 5440A-7002 | Low Thermal Test Leads

Adapters and cables (1)

  • 5440A-7003 | Low Thermal Copper EMF Plug-In Cables, Spade Connectors

Cases and holsters (1)

  • 742A-7002 | Transit Case (holds 2 units)

Accessories: 742A Resistance Standards

Test leads, probes and clips (1)

  • 5440A-7002 | Low Thermal Test Leads

Adapters and cables (1)

  • 5440A-7003 | Low Thermal Copper EMF Plug-In Cables, Spade Connectors

Cases and holsters (1)

  • 742A-7002 | Transit Case (holds 2 units)

Product overview: 742A Resistance Standards

High accuracy working standards for on-site resistance calibration

  • Small and rugged resistance calibrators
  • No oil or air baths required
  • 18° to 28° C operating range
  • Six-month stability to 2.5 ppm
  • Supplied with temperature characterization

742A Resistance Standards are high accuracy working standards for precision, on-site resistance calibration. Their excellent temperature stability allows them to be used from 18°C to 28°C with typically less than 2 ppm degradation. Using the calibration table supplied with the standards, which lists corrections in 0.5°C increments, this uncertainty can be reduced to near zero. No cumbersome oil or air baths are required.

Because 742A Resistance Standards are small and rugged, they are easy to transport. Care has been taken to reduce resistance changes brought about by thermal and mechanical shock. Retrace (permanent shift in resistance) is typically less than 2 ppm after cycling between 0°C and 40°C.

The 742A-1 1 Ω and the 742A-10k 10 kΩ units are ideally suited for Artifact Calibration of 5700A/5720A Calibrators. The other values can be used to verify the calibration if you desire.

Key Features

  • High-accuracy working standards for on-site resistance calibration.
  • Small, rugged, and easy to transport.
  • Temperature stability and six-month stability to 2.5 ppm.
  • Temperature range: 18°C to 28°C.
  • Designed to reduce resistance changes caused by thermal and mechanical shock.

Specifications: 742A Resistance Standards

General Specifications
12 Values from 1Ω to 19 MΩ in x1 and x1.9 Best 1 Year Specification: ±4 ppm
Operating Temperature 18-28°C
Storage Temperature  0-40°C
Retrace Error (hysteresis) 23°C-18°C-23°C cycle: Negligible resistance shift
23°C-28°C-23°C cycle: Negligible resistance shift
23°C-0°C-23°C cycle: < 2 ppm resistance shift
23°C-40°C-23°C cycle: < 2 ppm resistance shift
Calibration Documentation 17025 accredited report of calibration included
Size 8.6 cm H x 10.5 cm W x 12.7 cm D (3.4 in H x 4.15 in W x 5 in D
Weight .68 kg to .91 kg (1.5 lbs. to 2 lbs.) depending on the model

Accessories: 742A Resistance Standards

Test leads, probes and clips (1)

  • 5440A-7002 | Low Thermal Test Leads

Adapters and cables (1)

  • 5440A-7003 | Low Thermal Copper EMF Plug-In Cables, Spade Connectors

Cases and holsters (1)

  • 742A-7002 | Transit Case (holds 2 units)

Accessories: 742A Resistance Standards

Test leads, probes and clips (1)

  • 5440A-7002 | Low Thermal Test Leads

Adapters and cables (1)

  • 5440A-7003 | Low Thermal Copper EMF Plug-In Cables, Spade Connectors

Cases and holsters (1)

  • 742A-7002 | Transit Case (holds 2 units)
