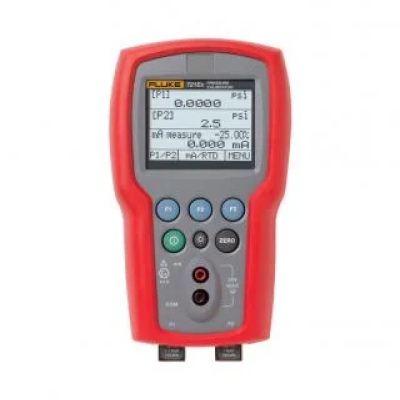

Product overview: Fluke 721Ex Precision Pressure Calibrator

Pressure calibration and temperature measurement for custody transfer applications

The ideal tool for gas custody transfer applications in potentially explosive atmospheres is the Fluke 721Ex Precision Pressure Calibrator. With dual isolated pressure sensors, it allows you to take simultaneous static and differential pressure measurements with a single tool.

Key Features

The 721Ex can be configured by selecting either a 16 PSI (1.1 bar) or 36 psi (2.48 bar) low pressure sensor then add any of 7 high pressure ranges including 100, 300, 500, 1000, 1500, 3000 or 5000 psi (6.9, 20, 24.5, 69, 103.4, 200, 345 bar).

  • Intrinsically Safe (721Ex version only) – IECEx and Atex Ex ia IIB T3 Gb (Zone 1)
  • Ideal for gas flow calibration (custody transfer) applications
  • Two isolated, stainless steel, pressure sensors with 0.025 % accuracy
  • Pt100 RTD input for temperature measurement, (probe optional)
  • Switch test on both pressure inputs
  • Pressure displayed in the user’s choice of 19 engineering units
  • Large backlit graphic display can display up to three inputs simultaneously
  • Store five instrument setups for recall and use

Specifications: Fluke 721Ex Precision Pressure Calibrator

Specifications 1-Year
Fluke-721Ex-1615 Low pressure sensor
Range Resolution Accuracy
-14 psi to +16 psi,
-0.97 bar to 1.1 bar		 0.001 psi,
0.0001 bar		 0.025% of full scale
High pressure sensor
0 psi to +1500 psi,
0.00 bar to 103.4 bar		 0.1 psi,
0.001 bar		 0.025% of full scale
Fluke-721Ex-1630 Low pressure sensor
-14 psi to +16 psi,
-0.97 bar to 1.1 bar		 0.001 psi,
0.0001 bar		 0.025% of full scale
High pressure sensor
0 psi to +3000 psi,
0.00 bar to 200 bar		 0.1 psi,
0.01 bar		 0.025% of full scale
Fluke-721Ex-1650 Low pressure sensor
-14 psi to +16 psi,
-0.97 bar to 1.1 bar		 0.001 psi,
0.0001 bar		 0.025% of full scale
High pressure sensor
0 psi to +5000 psi,
0.00 bar to 345 bar		 0.1 psi,
0.01 bar		 0.035% of full scale
Fluke-721Ex-3615 Low pressure sensor
-14 psi to +36 psi,
-0.97 bar to 2.48 bar		 0.001 psi,
0.0001 bar		 0.025% of full scale
High pressure sensor
0 psi to +1500 psi,
0.00 bar to 103.4 bar		 0.1 psi,
0.01 bar		 0.025% of full scale
Fluke-721Ex-3630 Low pressure sensor
-14 psi to +36 psi,
-0.97 bar to 2.48 bar		 0.001 psi,
0.0001 bar		 0.025% of full scale
High pressure sensor
0 psi to +3000 psi,
0.00 bar to 200 bar		 0.1 psi,
0.01 bar		 0.025% of full scale
Fluke-721Ex-3650 Low pressure sensor
-14 psi to +36 psi,
-0.97 bar to 2.48 bar		 0.001 psi,
0.0001 bar		 0.025% of full scale
High pressure sensor
0 psi to +5000 psi,
0.00 bar to 345 bar		 0.1 psi,
0.01 bar		 0.035% of full scale
General Specifications
Instrument setup recall Last used on power-up
Environmental Operating temperature -10°C to +45°C
Storage temperature (without batteries) -20°C to +60°C
Altitude 2,000 m
Ingress protection IP-40
Power requirements 6.0 V DC
Battery life >35 hours, typical usage
Batteries required (4) Standard AA cells
Dimensions (H x W x D) 7.9 x 4.3 x 2.3 in (20 x 11 x 5.8 cm)
Weight 03539 kg (1 lb 3 oz)
Connectors/ports pressure Two, 1/8 in NPT, 700P Series Pressure Module; RTD Probe
Electrical and Temperature Measurement 1-Year
Function Range Resolution Accuracy
mA measure 0 to 24 mA 0.001 mA ±0.015% of rdg
±0.002mA
Temperature Effect
No effect on accuracy on all functions from 15°C to 35°C
Add ±0.002% F.S./°C for temps outside of 15°C to 35°C
Available Pressure Engineering Units
psi, bar, mbar, kPa, kgcm2, cmH2O @ 4°C, cmH2O @ 20°C, mH2O @ 4°C, mH2O @ 20°C, inH2O @ 4°C, inH2O @ 20°C, inH2O @ 60°F, mmHg @ 0°C, inHg @ 0°C, ftH2O @ 4°C, ftH2O @ 20°C, ftH2O @ 60°F
Available Pressure Engineering Units
ATEX Ex ia IIB T3 Gb (Ta= -10… +45 °C)
KEMA 10 ATEX 0168X
IECEx Ex ia IIB T3 Gb (Ta= -10…+45 °C)
II 2 G IECEx CSA 10.0013X

Accessories: Fluke 721Ex Precision Pressure Calibrator

Accessories: Fluke 721Ex Precision Pressure Calibrator

Product overview: Fluke 721Ex Precision Pressure Calibrator

Pressure calibration and temperature measurement for custody transfer applications

The ideal tool for gas custody transfer applications in potentially explosive atmospheres is the Fluke 721Ex Precision Pressure Calibrator. With dual isolated pressure sensors, it allows you to take simultaneous static and differential pressure measurements with a single tool.

Key Features

The 721Ex can be configured by selecting either a 16 PSI (1.1 bar) or 36 psi (2.48 bar) low pressure sensor then add any of 7 high pressure ranges including 100, 300, 500, 1000, 1500, 3000 or 5000 psi (6.9, 20, 24.5, 69, 103.4, 200, 345 bar).

  • Intrinsically Safe (721Ex version only) – IECEx and Atex Ex ia IIB T3 Gb (Zone 1)
  • Ideal for gas flow calibration (custody transfer) applications
  • Two isolated, stainless steel, pressure sensors with 0.025 % accuracy
  • Pt100 RTD input for temperature measurement, (probe optional)
  • Switch test on both pressure inputs
  • Pressure displayed in the user’s choice of 19 engineering units
  • Large backlit graphic display can display up to three inputs simultaneously
  • Store five instrument setups for recall and use

Specifications: Fluke 721Ex Precision Pressure Calibrator

Specifications 1-Year
Fluke-721Ex-1615 Low pressure sensor
Range Resolution Accuracy
-14 psi to +16 psi,
-0.97 bar to 1.1 bar		 0.001 psi,
0.0001 bar		 0.025% of full scale
High pressure sensor
0 psi to +1500 psi,
0.00 bar to 103.4 bar		 0.1 psi,
0.001 bar		 0.025% of full scale
Fluke-721Ex-1630 Low pressure sensor
-14 psi to +16 psi,
-0.97 bar to 1.1 bar		 0.001 psi,
0.0001 bar		 0.025% of full scale
High pressure sensor
0 psi to +3000 psi,
0.00 bar to 200 bar		 0.1 psi,
0.01 bar		 0.025% of full scale
Fluke-721Ex-1650 Low pressure sensor
-14 psi to +16 psi,
-0.97 bar to 1.1 bar		 0.001 psi,
0.0001 bar		 0.025% of full scale
High pressure sensor
0 psi to +5000 psi,
0.00 bar to 345 bar		 0.1 psi,
0.01 bar		 0.035% of full scale
Fluke-721Ex-3615 Low pressure sensor
-14 psi to +36 psi,
-0.97 bar to 2.48 bar		 0.001 psi,
0.0001 bar		 0.025% of full scale
High pressure sensor
0 psi to +1500 psi,
0.00 bar to 103.4 bar		 0.1 psi,
0.01 bar		 0.025% of full scale
Fluke-721Ex-3630 Low pressure sensor
-14 psi to +36 psi,
-0.97 bar to 2.48 bar		 0.001 psi,
0.0001 bar		 0.025% of full scale
High pressure sensor
0 psi to +3000 psi,
0.00 bar to 200 bar		 0.1 psi,
0.01 bar		 0.025% of full scale
Fluke-721Ex-3650 Low pressure sensor
-14 psi to +36 psi,
-0.97 bar to 2.48 bar		 0.001 psi,
0.0001 bar		 0.025% of full scale
High pressure sensor
0 psi to +5000 psi,
0.00 bar to 345 bar		 0.1 psi,
0.01 bar		 0.035% of full scale
General Specifications
Instrument setup recall Last used on power-up
Environmental Operating temperature -10°C to +45°C
Storage temperature (without batteries) -20°C to +60°C
Altitude 2,000 m
Ingress protection IP-40
Power requirements 6.0 V DC
Battery life >35 hours, typical usage
Batteries required (4) Standard AA cells
Dimensions (H x W x D) 7.9 x 4.3 x 2.3 in (20 x 11 x 5.8 cm)
Weight 03539 kg (1 lb 3 oz)
Connectors/ports pressure Two, 1/8 in NPT, 700P Series Pressure Module; RTD Probe
Electrical and Temperature Measurement 1-Year
Function Range Resolution Accuracy
mA measure 0 to 24 mA 0.001 mA ±0.015% of rdg
±0.002mA
Temperature Effect
No effect on accuracy on all functions from 15°C to 35°C
Add ±0.002% F.S./°C for temps outside of 15°C to 35°C
Available Pressure Engineering Units
psi, bar, mbar, kPa, kgcm2, cmH2O @ 4°C, cmH2O @ 20°C, mH2O @ 4°C, mH2O @ 20°C, inH2O @ 4°C, inH2O @ 20°C, inH2O @ 60°F, mmHg @ 0°C, inHg @ 0°C, ftH2O @ 4°C, ftH2O @ 20°C, ftH2O @ 60°F
Available Pressure Engineering Units
ATEX Ex ia IIB T3 Gb (Ta= -10… +45 °C)
KEMA 10 ATEX 0168X
IECEx Ex ia IIB T3 Gb (Ta= -10…+45 °C)
II 2 G IECEx CSA 10.0013X

Accessories: Fluke 721Ex Precision Pressure Calibrator

Accessories: Fluke 721Ex Precision Pressure Calibrator
