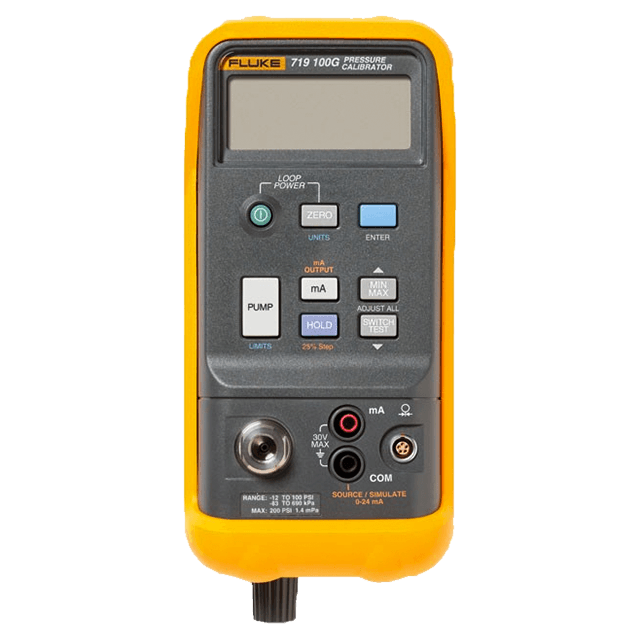

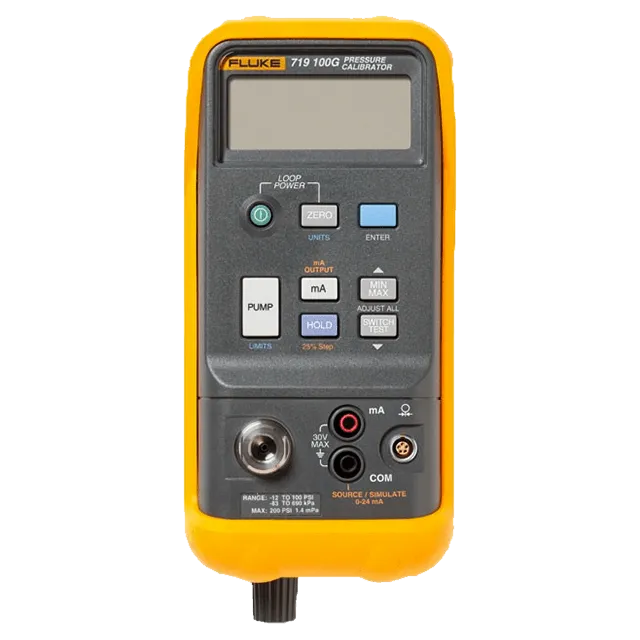

Model: Fluke 719 Pressure Calibrator
Fluke 719 Pressure Calibrator offers best-in-class pressure measurement uncertainty of 0.025%. This Pressure Calibrator measures and sources mA with best in class 0.015% accuracy to test valves and I/Ps
Surely you can forget the hassle of hand pumping. Now you can calibrate and test pressure devices quickly and easily with one hand, saving valuable time. With the innovative, built-in electric pump, the Fluke 719 Electric Pressure Calibrator provides pressure calibration at your fingertips!
Do you know who is the authorized distributor fo Fluke Brand in Bangladesh? Iconic Engineering has a shop at Tools Bangladesh and we only one authorized distributor in Bangladesh. You may keep trust here that you can't the amazing product of Fluke.
Key features: Fluke 719 Pressure Calibrator
- Pressure calibrator with built-in electric pump for one-handed pressure calibration
- Offers best-in-class pressure measurement uncertainty of 0.025%
- Measures and sources mA with best in class 0.015% accuracy to test valves and I/Ps
- Calibrates 30 psi and 100 psi pressure ranges
- Features precision pressure adjustment vernier for easy and accurate pressure calibration
Specifications: Fluke 719 Pressure Calibrator
| General Specifications |
| Storage temperature |
-30°C to 60°C |
| Operating temperature |
-10°C to 55°C |
| Relative humidity |
95% (-10°C to 30°C) |
| 75% (30°C to 40°C) |
| 45% (40°C to 50°C) |
| 35% (50°C to 55°C) |
| Shock |
1 meter drop test |
| Safety |
CSA C22.2 No. 1010.1:1992 |
| EMC |
EN50082-1:1992 and EN55022:1994 Class B |
| Size (H x W x L) |
60 x 87 x 210 mm |
| (2.19 x 3.41 x 8.28 in) |
| Weight |
912 g (2 lb) |
| Battery |
Two 9 V alkaline batteries |
| Battery life |
12 hours with 12 mA into 500 Ω, 200 pump cycles to 100 psi, 500 pump cycles to 30 psi |
| Warranty |
Three-years, one year for pump |
| Specifications |
| Fluke-719 30G |
Range |
-12 to 36 psi, -850 mbar to 2.4 bar |
| Resolution |
0.001 psi, 0.1 mbar |
| Accuracy |
0.025% range for 6 months
0.035% of range for one (1) year |
| Fluke-719 100G |
Range |
-12 to 120 psi, -850 mbar to 8 bar |
| Resolution |
0.01 psi, 1 mbar |
| Accuracy |
0.025% range for 6 months
0.035% of range for one (1) year |
| mA |
Range |
0 to 24 mA |
| Resolution |
0.001 mA |
| Accuracy |
.015% Rdg + 2 counts |
| Max load, 1000 Ω, 750 Ω ohm in HART mode |
| Loop supply |
Range |
24 V DC |
| Resolution |
N/A |
| Accuracy |
±10% |
| Pump Specifications |
| Maximum pressure generation |
120 psi (8 BAR) (100 psi model) |
| Pump to |
-30 psi in less than 15 seconds1 |
| -100 psi in less than 45 seconds1 |
| 1. With 1 meter of 1/8 inch test hose |
| Pump cycles between rebuilds |
5000 |
| Total pump life |
20,000 calibration cycle |
Includes: Fluke 719 Pressure Calibrator
- Protective yellow holster
- Instructions sheet (15 languages)
- Test leads and alligator clip
- Two 9V alkaline batteries
- Hose Kit
- NIST - Traceable calibration report and data
Accessories: Fluke 719 Pressure Calibrator
Pressure (4)
- Fluke 71X Hose Kit Accessory
- Fluke 700PCK Pressure Calibration Kit
- Fluke 700HTH-1 Hydraulic Test Hose
- Fluke 700PRV Pressure Relief Valve Kit
Pumps (3)
- Fluke 700 PMP Pressure Pump
- Fluke 700HTP-2 Hydraulic Test Pump
- Fluke 700PTP-1 Pneumatic Test Pump
Other (1)
- Fluke 700ILF In-Line Filter
