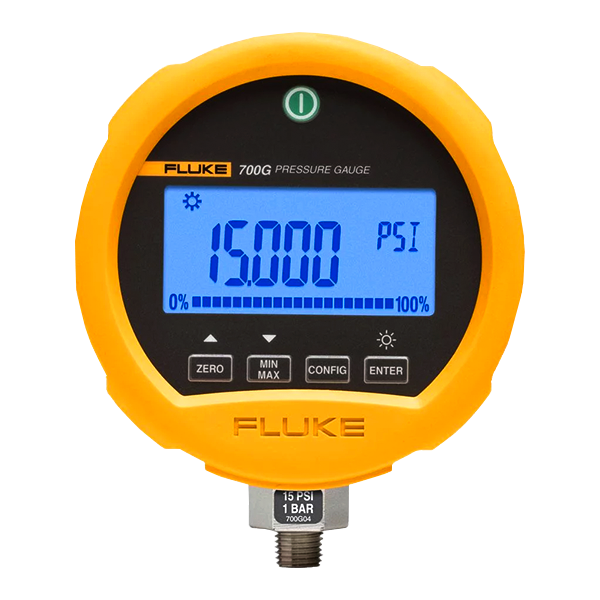

Fluke 700G Pressure Gauge Calibrator
Fluke 700G Pressure Gauge Calibrator is the most reliable product that always provides the accurate result. We offer the lowest price Pressure Gauge Calibrator in bd..
Model: Fluke 700G Pressure Gauge Calibrator
Fluke 700G is a rugged, easy-to-use, and reliable pressure gauge calibrator that offers 23 ranges from ±10 inH 2 O/ 20 bar to 10,000 psi/690 bar with an accuracy of 0.05% of full scale. Reference class models offer gauge accuracies to 0.04% of reading.
The 700G is compatible with most hydraulic and pneumatic test pumps. And it combines with one of the Fluke test pump kits (700PTPK or 700HTPK) to provide a complete pressure testing and calibration solution. You can use 700G/TRACK Software to upload more than 8,000 pressure measurements to a PC.
The 700G runs on three standard AA alkaline batteries to deliver 1,500 hours without backlight (continuous on) or 2,000 hours at a slow sample rate. Amazing products that are out of your hand so quick order now at Tools Bangladesh before sold out this model.
Key features: Fluke 700G Pressure Gauge Calibrator
- Rugged, high-quality pressure gauge calibrator for fast and accurate test results
- Delivers precision pressure measurements in 23 ranges from ±10 inH2O/20 mbar to 10,000 psi/690 bar
- Delivers high accuracy—0.05% total measurement uncertainty for one year
- Provides bright backlit display for easy viewing
- Features rugged, durable design with protective holster
Specifications: Fluke 700G Pressure Gauge Calibrator
Model | Range | Resolution | Accuracy | Burst Pressure |
---|---|---|---|---|
Fluke-700G01 | -10 to +10 inH2O -20 mbar to 20 mbar |
0.001 inH2O, 0.001 mbar |
Positive pressure ±0.1% of range, Vacuum ±0.1% of range |
3 psi, 210 mbar |
Fluke-700G02 | -1 to +1 psi, -70 mbar to 70 mbar |
0.0001 psi, 0.001 mbar |
Positive pressure ±0.1% of range, Vacuum ±0.1% of range |
5 psi, 350 mbar |
Fluke-700G04 | -14 to 15 psi, -0.97 to 1 bar |
0.001 psi, 0.0001 bar |
Positive pressure ±0.05% FS Vacuum ±0.1% FS |
60 psi, 4 bar |
Fluke-700G05 | -14 to 30 psi, -0.97 to 2 bar |
0.001 psi, 0.0001 bar |
Positive pressure ±0.05% FS Vacuum ±0.1% FS |
120 psi, 8 bar |
Fluke-700G06 | -12 to 100 psi, -0.83 to 6.9 bar |
0.01 psi, 0.0001 bar |
Positive pressure ±0.05% FS Vacuum ±0.1% FS |
400 psi, 26 bar |
Fluke-700G27 | -12 to 300 psi, -0.83 to 20 bar |
0.01 psi, 0.001 bar |
Positive pressure ±0.05% FS Vacuum ±0.1% FS |
1200 psi, 80 bar |
Fluke-700G07 | -12 to 500 psi, -0.83 to 34 bar |
0.01 psi, 0.001 bar |
Positive pressure ±0.05% FS Vacuum ±0.1% FS |
2000 psi, 138 bar |
Fluke-700G08 | -14 to 1000 psi, -0.97 to 69 bar |
0.1 psi, 0.001 bar |
Positive pressure ±0.05% FS Vacuum ±0.1% FS |
4000 psi, 266 bar |
Fluke-700G10 | -14 to 2000 psi, -.97 bar to 140 bar |
0.1 psi, 0.01 bar |
Positive pressure ±0.05% FS Vacuum ±0.1% FS |
8000 psi, 550 bar |
Fluke-700G29 | -14 to 3000 psi, -0.97 to 200 bar |
0.1 psi, 0.01 bar |
Positive pressure ±0.05% FS Vacuum ±0.1% FS |
10000 psi, 690 bar |
Fluke-700G30 | -14 to 5000 psi, -0.97 to 340 bar |
0.1 psi, 0.01 bar |
Positive pressure ±0.05% FS Vacuum ±0.1% FS |
10000 psi, 690 bar |
Fluke-700G31 | -14 to 10000 psi, -0.97 to 690 bar |
1 psi, 0.01 bar |
Positive pressure ±0.05% FS Vacuum ±0.1% FS |
20000 psi, 1035 bar |
Fluke-700GA4 | 0 to 15 psia, 0 to 1 bar absolute |
0.001 psi, 0.0001 bar |
±0.05% of range | 60 psi, 4 bar |
Fluke-700GA5 | 0 to 30 psia 0 to 2 bar absolute |
0.001 psi, 0.0001 bar |
±0.05% of range | 120 psi, 8 bar |
Fluke-700GA6 | 0 to 100 psia, 0 to 6.9 bar absolute |
0.01 psi, 0.0001 bar |
±0.05% of range | 400 psi, 27 bar |
Fluke-700GA27 | 0 to 300 psia, 0 to 20 bar absolute |
0.01 psi, 0.001 bar |
±0.05% of range | 1200 psi, 80 bar |
Fluke-700RG05 | -14 to +30 psi, -0.97 to +2 bar |
0.001 psi, 0.0001 bar |
Positive pressure, ±0.04% of reading +.01% of range, Vacuum ±0.05% of range |
90 psi, 6 bar |
Fluke-700RG06 | -12 to 100 psi, -0.83 to 6.9 bar |
0.01 psi, 0.0001 bar |
Positive pressure, ±0.04% of reading +.01% of range, Vacuum ±0.1% of range |
400 psi, 27 bar |
Fluke-700RG07 | -12 to 500 psi, -0.83 to 34 |
0.01 psi, 0.001 bar |
Positive pressure, ±0.04% of reading +.01% of range, Vacuum ±0.1% of range |
2000 psi, 138 bar |
Fluke-700RG08 | -14 to 1000 psi, -0.97 to 69 bar |
0.1 psi, 0.001 bar |
Positive pressure, ±0.04% of reading +.01% of range, Vacuum ±0.1% of range |
4000 psi, 275 bar |
Fluke-700RG29 | -14 to 3000 psi, -0.97 to 200 bar |
0.1 psi, 0.01 bar |
Positive pressure, ±0.04% of reading +.01% of range, Vacuum ±0.1% of range |
10000 psi, 690 bar |
Fluke-700RG30 | -14 to 5000 psi, -0.97 to 340 bar |
0.1 psi, 0.01 bar |
Positive pressure, ±0.04% of reading +.01% of range, Vacuum ±0.1% of range |
15000 psi, 1035 bar |
Fluke-700RG31 | -14 to 10000 psi, -0.97 to 690 bar |
1 psi, 0.01 bar |
Positive pressure, ±0.04% of reading +.01% of range, Vacuum ±0.1% of range |
20000 psi, 1380 bar |
Media compatibility |
---|
|
Mechanical Specifications | |
---|---|
Dimensions (H x W x D) | 12.7 x 11.4 x 3.7 cm (5 x 4.5 x 1.5 in) |
Pressure connection | ¼ in NPT Male |
Housing/Weight | Cast ZNAL 0.56 kg (1.22 lb) with holster |
Display | 5-1/2 digits, 16.53 mm (0.65 in) high 20-segment bar graph, 0 to 100% |
Power | Three (3) AA alkaline batteries |
Battery life | 1,500 hours without backlight (continuous on), 2,000 hours at slow sample rate |
Includes: Fluke 700G Pressure Gauge Calibrator
- Manual on CD-ROM in 14 languages
- Traceable certificate of calibration
- 1/4˝ NPT to 1/4˝ ISO adapter
Accessories: Fluke 700G Pressure Gauge Calibrator
Software (1)
- Fluke 700G/TRACK Logging Software
