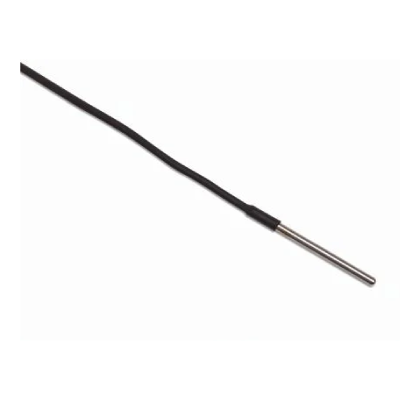

Fluke 5606 Full Immersion PRT

Home › Fluke
Thumbnail
Shop : Tools Bangladesh
Product ID : 3965
Brand : Fluke
Availability : In Stock (1)
Price BDT : Ask for Price
Reviews :
Share :
Request Quote

  • Customer Support

    +8801965656380

  • Cash One Delivery

    Pay after getting the product on hand

  • Warranty

    1 Year warranty by manufacturer

  • Secured Payment Method

    Your cart is always secure to shop

  • Easy Return Policy

    24 hours return without physical defect.

Product overview: 5606 Full Immersion PRT

Ultra-Compact, Reliable, and Designed for Complete Immersion

Total Flexibility for Extreme Environments

The Fluke 5606 Full Immersion Platinum Resistance Thermometer (PRT) offers an unmatched solution for applications where full immersion of the probe—including transition junction and lead wires—is required. With a compact length of just two inches (50 mm) and a sheath diameter of only 1/8 inch (3.1 mm), the 5606 delivers accuracy and durability in the tightest spaces.

Key Features and Benefits

  • Truly Full Immersion – No need to calculate minimum immersion depth. Simply immerse the entire probe, transition junction, and lead wires over the entire operating range—from –200 °C to 160 °C—in either non-corrosive liquids or dry mediums.
  • High Accuracy in a Compact Size – Achieve calibration accuracies as good as ±0.05 °C, thanks to the specially constructed 100 Ω precision sensing element (alpha = 0.00385) that also blocks moisture ingress.
  • Superior Moisture Protection – Single-conductor enameled copper lead wires prevent moisture from wicking into the sensing element, offering better protection than traditional stranded leads.
  • Flexible and Easy Installation – Lead wires measure no greater than 0.2 mm in diameter, making it simple to route through tight spaces—such as a freezer door—without energy loss.
  • Proven Durability – The 5606 has demonstrated excellent performance in heat transfer fluids like silicone oil, mineral oil, ethanol, and even liquid nitrogen, with no loss of integrity in the transition junction or lead wire insulation.

Engineered for Demanding Applications

The 5606 Full Immersion PRT is specifically designed to thrive in extreme environments. Both the transition junction and lead wires are built to endure temperatures covering the full probe range, ensuring complete reliability in challenging conditions.

Key Features

  • Operate in temperatures ranging from -200 °C to 160 °C.
  • Accuracy of ± 0.05 °C.
  • Both the transition junction and lead wires of these PRTs can withstand the full PRT temperature range.
  • Unique probe seal prevents moisture ingress.
  • Come with NVLAP-accredited calibration.
  • Suitable for calibration/validation of sensors in laboratory or bio freezers, autoclaves, ovens, test chambers, IQ/OQ/PQ qualification procedures, temperature mapping, and data logging in temperature-controlled spaces, and more.

Specifications: 5606 Full Immersion PRT

General Specifications
Temperature range -200°C to 160°C
Nominal resistance at 0.01°C 100 Ω ±0.1 Ω
Temperature coefficient 0.00385 Ω/Ω/°C
Accuracy1 ±0.04°C at 0.01°C
±0.06°C at 160°C
Short-term repeatability2 ±0.03°C at 0.01°C
±0.04°C at 160°C
Drift3 ±0.03°C at 0.01°C
±0.04°C at 160°C
Hysteresis ±0.015°C
Sheath length 50 mm ±5 mm
(2 in ±0.2 in)
Sheath diameter 3.1 mm ±0.1 mm (1/8 in ±0.004 in)
Sheath material 316 SST
Transition junction temperature range4 -200°C to 160°C
Transition junction dimensions No transition
Sensor length 30 mm ±3mm (1.2 in ±0.1 in)
Sensor location 3 mm ±1 mm from tip (1.2 in ±0.04 in)
Minimum insulation resistance 20 MΩ at 23°C
Minimum immersion length Full immersion
Maximum immersion depth in liquid medium Full immersion
Maximum immersion depth in dry Medium Full immersion
Response time5 12 seconds typical
Self heating (in 0°C bath) ±0.003°C
Lead-wire cable type Enameled copper wire
Lead-wire length 2.4 meters (8 ft)
Lead-wire temperature range 160°C
Calibration Calibration not included. NVLAP accredited calibration available. See ordering information.
1. Includes calibration and 100 hr drift (k = 2).
2. Three thermal cycles from min to max temp, includes hysteresis, 95% confidence (k = 2).
3. After 100 hours at max temp, 95% confidence (k = 2).
4. Temperatures outside this range will cause irreparable damage.
5. Per ASTM E 644.
Calibration Uncertainty
Temperature -197°C 1924 Calibration Uncertainty6 0.03°C
Tolerance w/out Calibration7 0.4°C
  -38°C 1924 Calibration Uncertainty6 0.03°C
Tolerance w/out Calibration7 0.2°C
  0°C 1924 Calibration Uncertainty6 0.03°C
Tolerance w/out Calibration7 0.1°C
  100°C 1924 Calibration Uncertainty6 0.045°C
Tolerance w/out Calibration7 0.3°C
  157°C 1924 Calibration Uncertainty6 0.05°C
Tolerance w/out Calibration7 0.4°C
6. Lab code 200348-0
7. Each PRT includes a certificate with a measured R0 value.
An uncalibrated 5606 meets ASTM E 1137 Grade A Classification of Tolerances.
Use the coefficients below to achieve the tolerances listed in the “No Calibration” column or calculate the Grade A tolerance using the following formula:
Grade A = ±[0.13 + 0.0017|t|]°C
where: |t| = value of temperature (°C) without regard to sign. See ASTM E 1137.
R0: Enter the R0 value provided
A: 3.9083 x 10–3
B: –5.775 x 10–7
C: –4.183 x 10–12

Accessories: 5606 Full Immersion PRT

Cases and holsters (1)

  • 2603 | Small Probe Carrying Case

Accessories: 5606 Full Immersion PRT

Cases and holsters (1)

  • 2603 | Small Probe Carrying Case
