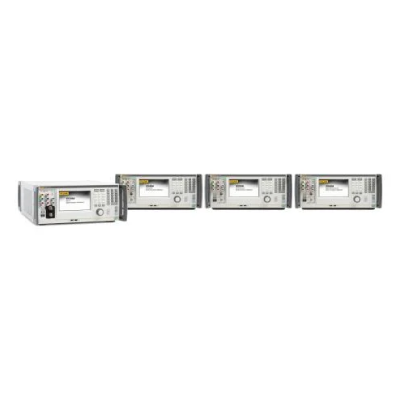

Product overview: Fluke 5560A Multi-Product Calibrator for Labs

Most comprehensive workload coverage, latest technology, intuitive redesigned front panel, MET/CAL™ compatibility and much more

5560A: The next generation high-performing calibrator supporting your most demanding workload

The 5560A Calibrator defines a new class of high-performance multi-product calibrator, providing the broadest electrical workload coverage and highest accuracy for calibrating the most demanding modern workloads.

5550A: Provides Fluke legacy performance with modern enhancements

The 5550A Performance Multi-Product Calibrator enhances the 5522A with new calibration ranges optimized to better match your existing digital multimeter workload in a modern, ruggedized instrument with intuitive graphical interface.

5540A: Perfectly suited for common electrical workload with lowest cost of ownership

The 5540A Standard Multi-Product Calibrator offers performance to cover todays most common DMM and Scope workload. Verification is easier with performance matched to most popular 4.5 digit DMMs.

5530A: Basic Multi-Product Calibrator for common workload including power

The 5530A Basic Multi-Product Calibrator offers analog performance identical to the 5540A without capabilities to address Oscilloscopes. The addition of power extends workload to more "industrial" devices than the 5540A.

5560A: The most comprehensive workload coverage

The 5560A calibrates the most popular benchtop 6.5-digit multimeters with better than 4:1 test uncertainty ratio (TUR), oscilloscopes to 2 GHz, and clamp meters to 1500 A. Technical improvements include 30 A continuous current output with no duty cycle and synthesized inductance functionality. These improvements enable you to calibrate modern and full-functional benchtop multimeters and clamp meters. Oscilloscope bandwidth to 2 GHz and edge rise time of <175 pS allows the 5560A to handle an even broader workload. A large variety of thermocouple types and a new thermocouple connector enables easier connection and broadens the temperature workload coverage. The workload is expanded even further when the 5560A is used with a 52120A amplifier and appropriate coil to increase the current output to 6000 A, for calibrating high-current devices such as Rogowski coils.

5550A: Optimized for your multimeter workload

The 5550A Performance Multi-Product Calibrator enhances the 5522A Multi-Product Calibrator with new calibration ranges optimized to better match your existing digital multimeter workload in a modern, ruggedized instrument with an intuitive graphical interface. It calibrates the most popular benchtop digital multimeters with improved test uncertainty ratios (TURs), oscilloscopes to 1 GHz, and clamp meters to 1500 A with continuous current output. Technical improvements include 30 A continuous current output, which reduces wait time during heavy usage. A range redesign enables you to calibrate your existing benchtop multimeters with greater confidence. A larger variety of thermocouple types and a new thermocouple connector enables easier connection and broadens the temperature workload coverage. The workload is expanded even further when the 5550A is used with a 52120A amplifier to increase the current output to 6000 A, for calibrating high-current components such as Rogowski coils.

5540A: Standard performance optimized for common handheld DMMs and Scopes

The 5540A Standard Multi-Product Calibrators has performance tailored to cover most common handheld DMMs and Scopes. These performance capabilities reduces the accuracy of standards needed to verify and adjust the 5540A, reducing cost of ownership. it calibrates most popular handheld digital multimeters with appropriate test uncertainty ratios (TURs), oscilloscopes to 600 MHz and clamp meters to 1500A with continuous current output. Technical improvements include a current range increase from 20 A to 30 A of continuous current output, which reduces wait time during heavy usage. A range redesign enables you to calibrate your existing handheld digital multimeters with greater confidence. A larger variety of thermocouple types and a new thermocouple connector enables easier connection and broadens the temperature workload coverage. The workload is expanded even further when the 5540A is used with the 52120A amplifier to increase the current output to 6000 A, for calibrating high-current components such as Rogowski coils.

5530A: Basic Calibrator

5530A is our Basic calibrator covering handheld DMMs and Power measurement devices. With performance similar to the 5540A, it is a good choice for customers that do not need to cover Oscilloscopes.
