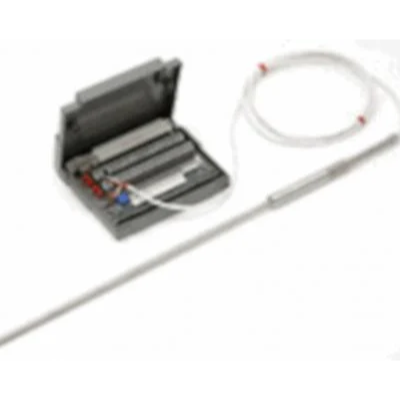

Product overview: Fluke 2600A-101 Sprt Probe

Secondary Platinum Resistance Thermometer Probe
The 2600A-101 is a precision four-wire, 100 Ohm SPRT (Secondary Platinium Resistance Thermometer) probe that have been designed and tested to meet the precision required as a secondary reference standard. The 2600A-101 has stripped leads suitable for connection to any Fluke data acquisition product or other screw terminal connector. This probe comes with calibration certificates and data for -200 to 6600°C.

Probe hook up diagram:
The probe connects to channel 1(input) and 11(excitation) on the Hydra input connector.

Key Features

  • The 2600A-101 is a precision four-wire, 100 Ohm SPRT (Secondary Platinum Resistance Thermometer) probe that have been designed and tested to meet the precision required as a secondary reference standard.

Specifications: Fluke 2600A-101 Sprt Probe

General Specifications
Use Temperature 200 °C to 660 °C
Stability Typical draft < 0.01°C after 100 times from 25 to 660 °C
Calibrated Accuracy
Temperature Uncertainty
- 183°C +/- 0.01°C
0°C +/- 0.007°C
200°C +/- 0.024°C
75%°C +/- 0.033°C
660 °C +/- 0.050 °C
Performance Specifications (nominal)
Ice point resistance: 100 Ω ± 0.1 Ω
Alpha value: 0.00385 ± 0.00001 Ω /Ω /C
Insulation resistance: 1000 Meg Ω at 100 Vdc at 20°C
  100 Meg Ohms at 100 Vdc at 400°C
Hysteresis: 0.01°C Max. using 0, 400°C as the end points
Self heating: 0.02°C / mw in well stirred bath
Thermoelectric voltage: When tested in an ice bath, with immersion depth from 4 to 10 inches (10 to 25 cm), thermo-electric voltage will not exceed 2 µV
Time constant: 9 seconds typical for 63.2% response to step change
Long term stability: Stability at 0°C after exposure to upper temperature limits
Dimensions
Sheath diameter (D): .25 inches (6.3 mm)
Length (L): 12 inches (0.3 m)
Cable length (Y): 6 feet (1.83 m)
Wire: 22 AWG, PTFE jacketed, rated to 200 C
Wire terminations: flying lead; stripped / tinned

N/A

N/A
