Electrical Specifications |
AC voltage measurement |
Range |
600.0 mV |
Resolution |
0.1 mV |
Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts) |
±(1% + 3) |
Accuracy 60 Hz to 5000 Hz ±(% of Rdg + Counts) |
±(2% + 3) |
6.000 V |
Resolution |
0.001 V |
Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts) |
±(1% + 3) |
Accuracy 60 Hz to 5000 Hz ±(% of Rdg + Counts) |
±(2% + 3) |
60.00 V |
Resolution |
0.01 V |
Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts) |
±(1% + 3) |
Accuracy 60 Hz to 5000 Hz ±(% of Rdg + Counts) |
±(2% + 3) |
600.0 V |
Resolution |
0.1 V |
Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts) |
±(1% + 3) |
Accuracy 60 Hz to 5000 Hz ±(% of Rdg + Counts) |
±(2% + 3)¹ |
1000 V |
Resolution |
1 V |
Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts) |
±(2% + 3) |
Accuracy 60 Hz to 5000 Hz ±(% of Rdg + Counts) |
±(2% + 3)¹ |
¹ 1 kHz bandwidth |
Low-Pass Filter Voltage |
Range |
600.0 mV |
Resolution |
0.1 mV |
Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts) |
±(1% + 3) |
Accuracy 60 Hz to 400 Hz ±(% of Rdg + Counts) |
+(2% + 3), -(6% - 3) |
6.000 V |
Resolution |
0.001 V |
Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts) |
±(1% + 3) |
Accuracy 60 Hz to 400 Hz ±(% of Rdg + Counts) |
+(2% + 3), -(6% - 3) |
60.00 V |
Resolution |
0.01 V |
Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts) |
±(1% + 3) |
Accuracy 60 Hz to 400 Hz ±(% of Rdg + Counts) |
+(2% + 3), -(6% - 3) |
600.0 V |
Resolution |
0.1 V |
Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts) |
±(1% + 3) |
Accuracy 60 Hz to 400 Hz ±(% of Rdg + Counts) |
+(2% + 3), -(6% - 3) |
1000 V |
Resolution |
1 V |
Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts) |
±(2% + 3) |
Accuracy 60 Hz to 400 Hz ±(% of Rdg + Counts) |
+(2% + 3), -(6% - 3) |
DC Voltage Measurement |
Range |
Resolution |
Accuracy ±(% of Rdg + Counts) |
6.000 V dc |
0.001 V |
±(0.09% + 2) |
60.00 V dc |
0.01 V |
±(0.09% + 2) |
600.0 V dc |
0.1 V |
±(0.09% + 2) |
1000 V dc |
1 V |
±(0.09% + 2) |
Input impedance |
10 MΩ (nominal), <100 pF |
Normal mode rejection ratio |
>60 dB @ 50 Hz or 60 Hz |
Common mode rejection ratio |
>120 dB @ dc, 50 Hz or 60 Hz (1 k unbalance) |
Accuracies apply to ± 100% of range |
DC Millivolts Measurement |
Range |
Resolution |
Accuracy ±(% of Rdg + Counts) |
600.0 mVdc |
0.1 mV |
±(0.1% + 1) |
DC and AC Current Measurement |
AC 45 Hz to 1000 Hz |
Range |
400 mA |
Resolution |
0.1 mA |
Accuracy ±(% of Rdg+Counts) |
±(1.5% + 2)¹ |
Burden voltage (Typical) |
2 mV/mA |
Range |
60 mA |
Resolution |
0.01 mA |
Accuracy ±(% of Rdg+Counts) |
±(1.5% + 2)¹ |
Burden voltage (Typical) |
2 mV/mA |
DC |
Range |
400 mA |
Resolution |
0.1 mA |
Accuracy ±(% of Rdg+Counts) |
±(0.2% + 2) |
Burden voltage (Typical) |
2 mV/mA |
Range |
60 mA |
Resolution |
0.01 mA |
Accuracy ±(% of Rdg+Counts) |
±(0.2% + 2) |
Burden voltage (Typical) |
2 mV/mA |
Overload |
600 mA for 2 minutes maximum |
Fuse protection for mA input |
0.44 mA, 1000 V, IR 10 kA |
AC conversion |
Inputs are ac-coupled and calibrated to the rms value of sine wave input |
Conversions are true-rms responding and specified from 5% to 100% of range. Input signal crest factor can be up to 3 up to 300 mA, decreasing linearly to crest factor ≤1.5 at 600 mA. For non-sinusoidal waveforms add +(2% reading + 2% FS) typical, for a crest factor up to 3. |
¹ 1 kHz bandwidth |
Ohms Measurement |
Range |
Resolution |
Accuracy +(% of Rdg+Counts)¹ |
600.0 Ω |
0.1 Ω |
±(0.9% + 2) |
6.000 kΩ |
0.001 kΩ |
±(0.9% + 2) |
60.00 kΩ |
0.01 kΩ |
±(0.9% + 2) |
600.0 kΩ |
0.1 KΩ |
±(0.9% + 2) |
6.000 MΩ |
0.001 MΩ |
±(0.9% + 2) |
50.0 MΩ ² |
0.01 MΩ |
±(1.5% + 3) |
Overload protection |
1000 V rms or dc |
Open circuit test voltage |
&l
t;8.0 V dc |
Short circuit current |
<1.1 mA |
¹ Accuracies apply from 0% to 100% of range ² Up to 80% relative humidity |
Diode Test |
Diode test indication |
Display voltage drop: 0.6 V at1.0 mA nominal test current: |
Accuracy |
±(2% + 3) |
Continuity Test |
Continuity indication |
Continuous audible tone for testresistance below 25 Ω and off above 100 Ω. Maximum Reading; 1000 Ω |
Open circuit voltage |
<8.0 V |
Short circuit current |
1.0 mA typical |
Overload protection |
1000 V rms |
Response time |
>1 m sec |
Frequency Measurement |
Range |
Resolution |
Accuracy ±(% of Rdg+Counts) |
99.99 Hz |
0.01 Hz |
±(0.1% + 1) |
999.9 Hz |
0.1 Hz |
±(0.1% + 1) |
9.999 kHz |
0.001 kHz |
±(0.1% + 1) |
99.99 kHz |
0.01 kHz |
±(0.1% + 1) |
Frequency Counter Sensitivity |
600.0 mV ac |
V ac Sensitivity (RMS Sine Wave)¹ 5 Hz to 20 kHz |
100.0 mV |
V ac Sensitivity (RMS Sine Wave)¹ 20 kHz to 100 kHz |
150.0 mV |
DC Trigger Levels¹ to 20 kHz² |
NA |
6.0 V |
V ac Sensitivity (RMS Sine Wave)¹ 5 Hz to 20 kHz |
1.0 V |
V ac Sensitivity (RMS Sine Wave)¹ 20 kHz to 100 kHz |
1.5 V |
DC Trigger Levels¹ to 20 kHz² |
-400.0 mV and 2.5 V |
60.0 V |
V ac Sensitivity (RMS Sine Wave)¹ 5 Hz to 20 kHz |
10.0 V |
V ac Sensitivity (RMS Sine Wave)¹ 20 kHz to 100 kHz |
36.0 V |
DC Trigger Levels¹ to 20 kHz² |
1.2 V and 4.0 V |
600.0 V |
V ac Sensitivity (RMS Sine Wave)¹ 5 Hz to 20 kHz |
100.0 V |
V ac Sensitivity (RMS Sine Wave)¹ 20 kHz to 100 kHz |
- |
DC Trigger Levels¹ to 20 kHz² |
12.0 V and 40.0 V |
1000.0 V |
V ac Sensitivity (RMS Sine Wave)¹ 5 Hz to 20 kHz |
300.0 V |
V ac Sensitivity (RMS Sine Wave)¹ 20 kHz to 100 kHz |
- |
DC Trigger Levels¹ to 20 kHz² |
12.0 V and 40.0 V |
¹ Maximum input for specified accuracy = 10x range (1000 V max). Noise at low frequencies and amplitudes may affect accuracy ² Usable to 100 kHz with full scale input |
Capacitance |
Range |
Resolution |
Accuracy ±(% of Rdg+Counts) |
1000 nF |
1 nF |
±(1.2% + 2) |
10.00 μF |
0.01 μF |
±(1.2% + 2) |
100.0 μF |
0.1 μF |
±(1.2% ±90 counts) |
9999 μF |
1 μF |
±(1.2% ±90 counts) |
Temperature Measurement |
Range |
Resolution |
Accuracy ±(% of Rdg+Counts)¹ |
-40 ° C to 537 ° C |
0.1 °C |
±(1% + 10 counts) |
-40 ° F to 998 ° F |
0.1 °F |
±(1% + 18 counts) |
¹ Accuracies apply following 90 minutes settling time after a change in the ambient temperature of the instrument |
Insulation Specifications |
Measurement range |
0.01 MΩ to 2 GΩ |
Test voltages |
50, 100, 250, 500, 1000 V |
Test voltage accuracy |
+20%, -0% |
Short-circuit test current |
1 mA nominal |
Auto discharge |
Discharge time <0.5 second for C = 1 μF or less |
Live circuit detection |
Inhibit test if terminal voltage > 30 V prior to initialization of test |
Maximum capacitive load |
Operable with up to 1 μF load |
Output Voltage |
50 V (0% to +20%) |
Display range |
0.01 to 6.00 MΩ |
Resolution |
0.01 MΩ |
Test current |
1 mA @ 50 kΩ |
Resistance accuracy ±(% of Rdg + Counts) |
±(3% + 5 counts) |
Display range |
6.0 to 50.0 MΩ |
Resolution |
0.1 MΩ |
Test current |
1 mA @ 50 kΩ |
Resistance accuracy ±(% of Rdg + Counts) |
±(3% + 5 counts) |
100 V (0% to +20%) |
Display range |
0.01 to 6.00 MΩ |
Resolution |
0.01 MΩ |
Test current |
1 mA @ 100 kΩ |
Resistance accuracy ±(% of Rdg + Counts) |
±(3% + 5 counts) |
Display range |
6.0 to 60.0 MΩ |
Resolution |
0.1 MΩ |
Test current |
1 mA @ 100 kΩ |
Resistance accuracy ±(% of Rdg + Counts) |
±(3% + 5 counts) |
Display range |
60 to 100 MΩ |
Resolution |
1 MΩ |
Test current |
1 mA @ 100 kΩ |
Resistance accuracy ±(% of Rdg + Counts) |
±(3% + 5 counts) |
250 V (0% to +20%) |
Display range |
0.1 to 60.0 MΩ |
Resolution |
0.1 MΩ |
Test current |
1 mA @ 250 kΩ |
Resistance accuracy ±(% of Rdg + Counts) |
±(1.5% + 5 counts) |
<

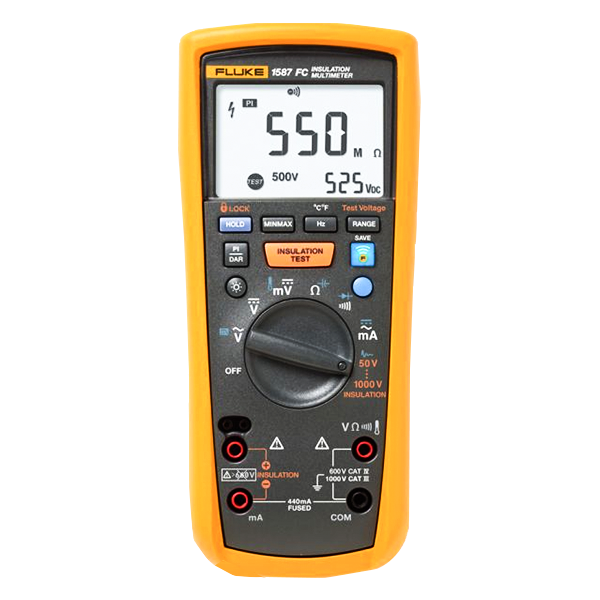

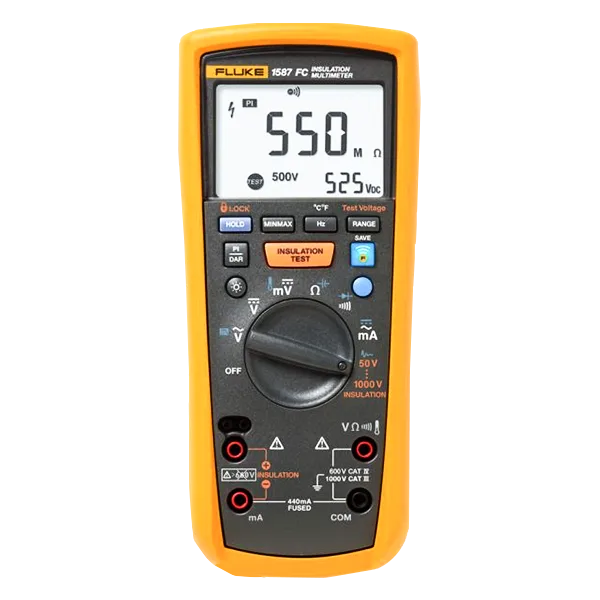

Model: Fluke 1587 FC Insulation Multimeter
Includes:
- Remote probe
- Test Leads
- Alligator clips
- K-type thermocouple
- Hard case
- User documentation
Accessories: Fluke 1587 FC Insulation Multimeter
Cases (1)
- Fluke C25 Large Soft Case for DMMs
Other (1)
- Fluke TPAK ToolPak™ Magnetic Meter Hanger
Current clamps (1)
- Fluke i400 AC Current Clamp
Model: Fluke 1587 FC Insulation Multimeter
Fluke 1587 FC Insulation Multimeter is rugged reliable and trusted that are providing the best result to the test point and the Fluke 1587 prove your job is done right by quickly seeing and sharing measurement results wirelessly with your smartphone.
Fluke 1587 dose not only for the good performance and the significance of it you will catch on the spot. So, not be confuse order it from Tools Bangladesh without hesitation hope you will get the best performance.
Model: Fluke 1587 FC Insulation Multimeter
Key Features:
- Prove your job is done right by quickly seeing and sharing measurement results wirelessly with your smartphone.
- Safety first. Keep yourself out of harm's way by monitoring your test measurements remotely.
- Quickly find problems by saving and comparing measurements over time on a wireless device.
Specification: Fluke 1587 FC Insulation Multimeter
Electrical Specifications |
AC voltage measurement |
Range |
600.0 mV |
Resolution |
0.1 mV |
Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts) |
±(1% + 3) |
Accuracy 60 Hz to 5000 Hz ±(% of Rdg + Counts) |
±(2% + 3) |
6.000 V |
Resolution |
0.001 V |
Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts) |
±(1% + 3) |
Accuracy 60 Hz to 5000 Hz ±(% of Rdg + Counts) |
±(2% + 3) |
60.00 V |
Resolution |
0.01 V |
Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts) |
±(1% + 3) |
Accuracy 60 Hz to 5000 Hz ±(% of Rdg + Counts) |
±(2% + 3) |
600.0 V |
Resolution |
0.1 V |
Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts) |
±(1% + 3) |
Accuracy 60 Hz to 5000 Hz ±(% of Rdg + Counts) |
±(2% + 3)¹ |
1000 V |
Resolution |
1 V |
Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts) |
±(2% + 3) |
Accuracy 60 Hz to 5000 Hz ±(% of Rdg + Counts) |
±(2% + 3)¹ |
¹ 1 kHz bandwidth |
Low-Pass Filter Voltage |
Range |
600.0 mV |
Resolution |
0.1 mV |
Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts) |
±(1% + 3) |
Accuracy 60 Hz to 400 Hz ±(% of Rdg + Counts) |
+(2% + 3), -(6% - 3) |
6.000 V |
Resolution |
0.001 V |
Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts) |
±(1% + 3) |
Accuracy 60 Hz to 400 Hz ±(% of Rdg + Counts) |
+(2% + 3), -(6% - 3) |
60.00 V |
Resolution |
0.01 V |
Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts) |
±(1% + 3) |
Accuracy 60 Hz to 400 Hz ±(% of Rdg + Counts) |
+(2% + 3), -(6% - 3) |
600.0 V |
Resolution |
0.1 V |
Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts) |
±(1% + 3) |
Accuracy 60 Hz to 400 Hz ±(% of Rdg + Counts) |
+(2% + 3), -(6% - 3) |
1000 V |
Resolution |
1 V |
Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts) |
±(2% + 3) |
Accuracy 60 Hz to 400 Hz ±(% of Rdg + Counts) |
+(2% + 3), -(6% - 3) |
DC Voltage Measurement |
Range |
Resolution |
Accuracy ±(% of Rdg + Counts) |
6.000 V dc |
0.001 V |
±(0.09% + 2) |
60.00 V dc |
0.01 V |
±(0.09% + 2) |
600.0 V dc |
0.1 V |
±(0.09% + 2) |
1000 V dc |
1 V |
±(0.09% + 2) |
Input impedance |
10 MΩ (nominal), <100 pF |
Normal mode rejection ratio |
>60 dB @ 50 Hz or 60 Hz |
Common mode rejection ratio |
>120 dB @ dc, 50 Hz or 60 Hz (1 k unbalance) |
Accuracies apply to ± 100% of range |
DC Millivolts Measurement |
Range |
Resolution |
Accuracy ±(% of Rdg + Counts) |
600.0 mVdc |
0.1 mV |
±(0.1% + 1) |
DC and AC Current Measurement |
AC 45 Hz to 1000 Hz |
Range |
400 mA |
Resolution |
0.1 mA |
Accuracy ±(% of Rdg+Counts) |
±(1.5% + 2)¹ |
Burden voltage (Typical) |
2 mV/mA |
Range |
60 mA |
Resolution |
0.01 mA |
Accuracy ±(% of Rdg+Counts) |
±(1.5% + 2)¹ |
Burden voltage (Typical) |
2 mV/mA |
DC |
Range |
400 mA |
Resolution |
0.1 mA |
Accuracy ±(% of Rdg+Counts) |
±(0.2% + 2) |
Burden voltage (Typical) |
2 mV/mA |
Range |
60 mA |
Resolution |
0.01 mA |
Accuracy ±(% of Rdg+Counts) |
±(0.2% + 2) |
Burden voltage (Typical) |
2 mV/mA |
Overload |
600 mA for 2 minutes maximum |
Fuse protection for mA input |
0.44 mA, 1000 V, IR 10 kA |
AC conversion |
Inputs are ac-coupled and calibrated to the rms value of sine wave input |
Conversions are true-rms responding and specified from 5% to 100% of range. Input signal crest factor can be up to 3 up to 300 mA, decreasing linearly to crest factor ≤1.5 at 600 mA. For non-sinusoidal waveforms add +(2% reading + 2% FS) typical, for a crest factor up to 3. |
¹ 1 kHz bandwidth |
Ohms Measurement |
Range |
Resolution |
Accuracy +(% of Rdg+Counts)¹ |
600.0 Ω |
0.1 Ω |
±(0.9% + 2) |
6.000 kΩ |
0.001 kΩ |
±(0.9% + 2) |
60.00 kΩ |
0.01 kΩ |
±(0.9% + 2) |
600.0 kΩ |
0.1 KΩ |
±(0.9% + 2) |
6.000 MΩ |
0.001 MΩ |
±(0.9% + 2) |
50.0 MΩ ² |
0.01 MΩ |
±(1.5% + 3) |
Overload protection |
1000 V rms or dc |
Open circuit test voltage |
&l
t;8.0 V dc |
Short circuit current |
<1.1 mA |
¹ Accuracies apply from 0% to 100% of range ² Up to 80% relative humidity |
Diode Test |
Diode test indication |
Display voltage drop: 0.6 V at1.0 mA nominal test current: |
Accuracy |
±(2% + 3) |
Continuity Test |
Continuity indication |
Continuous audible tone for testresistance below 25 Ω and off above 100 Ω. Maximum Reading; 1000 Ω |
Open circuit voltage |
<8.0 V |
Short circuit current |
1.0 mA typical |
Overload protection |
1000 V rms |
Response time |
>1 m sec |
Frequency Measurement |
Range |
Resolution |
Accuracy ±(% of Rdg+Counts) |
99.99 Hz |
0.01 Hz |
±(0.1% + 1) |
999.9 Hz |
0.1 Hz |
±(0.1% + 1) |
9.999 kHz |
0.001 kHz |
±(0.1% + 1) |
99.99 kHz |
0.01 kHz |
±(0.1% + 1) |
Frequency Counter Sensitivity |
600.0 mV ac |
V ac Sensitivity (RMS Sine Wave)¹ 5 Hz to 20 kHz |
100.0 mV |
V ac Sensitivity (RMS Sine Wave)¹ 20 kHz to 100 kHz |
150.0 mV |
DC Trigger Levels¹ to 20 kHz² |
NA |
6.0 V |
V ac Sensitivity (RMS Sine Wave)¹ 5 Hz to 20 kHz |
1.0 V |
V ac Sensitivity (RMS Sine Wave)¹ 20 kHz to 100 kHz |
1.5 V |
DC Trigger Levels¹ to 20 kHz² |
-400.0 mV and 2.5 V |
60.0 V |
V ac Sensitivity (RMS Sine Wave)¹ 5 Hz to 20 kHz |
10.0 V |
V ac Sensitivity (RMS Sine Wave)¹ 20 kHz to 100 kHz |
36.0 V |
DC Trigger Levels¹ to 20 kHz² |
1.2 V and 4.0 V |
600.0 V |
V ac Sensitivity (RMS Sine Wave)¹ 5 Hz to 20 kHz |
100.0 V |
V ac Sensitivity (RMS Sine Wave)¹ 20 kHz to 100 kHz |
- |
DC Trigger Levels¹ to 20 kHz² |
12.0 V and 40.0 V |
1000.0 V |
V ac Sensitivity (RMS Sine Wave)¹ 5 Hz to 20 kHz |
300.0 V |
V ac Sensitivity (RMS Sine Wave)¹ 20 kHz to 100 kHz |
- |
DC Trigger Levels¹ to 20 kHz² |
12.0 V and 40.0 V |
¹ Maximum input for specified accuracy = 10x range (1000 V max). Noise at low frequencies and amplitudes may affect accuracy ² Usable to 100 kHz with full scale input |
Capacitance |
Range |
Resolution |
Accuracy ±(% of Rdg+Counts) |
1000 nF |
1 nF |
±(1.2% + 2) |
10.00 μF |
0.01 μF |
±(1.2% + 2) |
100.0 μF |
0.1 μF |
±(1.2% ±90 counts) |
9999 μF |
1 μF |
±(1.2% ±90 counts) |
Temperature Measurement |
Range |
Resolution |
Accuracy ±(% of Rdg+Counts)¹ |
-40 ° C to 537 ° C |
0.1 °C |
±(1% + 10 counts) |
-40 ° F to 998 ° F |
0.1 °F |
±(1% + 18 counts) |
¹ Accuracies apply following 90 minutes settling time after a change in the ambient temperature of the instrument |
Insulation Specifications |
Measurement range |
0.01 MΩ to 2 GΩ |
Test voltages |
50, 100, 250, 500, 1000 V |
Test voltage accuracy |
+20%, -0% |
Short-circuit test current |
1 mA nominal |
Auto discharge |
Discharge time <0.5 second for C = 1 μF or less |
Live circuit detection |
Inhibit test if terminal voltage > 30 V prior to initialization of test |
Maximum capacitive load |
Operable with up to 1 μF load |
Output Voltage |
50 V (0% to +20%) |
Display range |
0.01 to 6.00 MΩ |
Resolution |
0.01 MΩ |
Test current |
1 mA @ 50 kΩ |
Resistance accuracy ±(% of Rdg + Counts) |
±(3% + 5 counts) |
Display range |
6.0 to 50.0 MΩ |
Resolution |
0.1 MΩ |
Test current |
1 mA @ 50 kΩ |
Resistance accuracy ±(% of Rdg + Counts) |
±(3% + 5 counts) |
100 V (0% to +20%) |
Display range |
0.01 to 6.00 MΩ |
Resolution |
0.01 MΩ |
Test current |
1 mA @ 100 kΩ |
Resistance accuracy ±(% of Rdg + Counts) |
±(3% + 5 counts) |
Display range |
6.0 to 60.0 MΩ |
Resolution |
0.1 MΩ |
Test current |
1 mA @ 100 kΩ |
Resistance accuracy ±(% of Rdg + Counts) |
±(3% + 5 counts) |
Display range |
60 to 100 MΩ |
Resolution |
1 MΩ |
Test current |
1 mA @ 100 kΩ |
Resistance accuracy ±(% of Rdg + Counts) |
±(3% + 5 counts) |
250 V (0% to +20%) |
Display range |
0.1 to 60.0 MΩ |
Resolution |
0.1 MΩ |
Test current |
1 mA @ 250 kΩ |
Resistance accuracy ±(% of Rdg + Counts) |
±(1.5% + 5 counts) |
<
Model: Fluke 1587 FC Insulation Multimeter
Includes:
- Remote probe
- Test Leads
- Alligator clips
- K-type thermocouple
- Hard case
- User documentation
Accessories: Fluke 1587 FC Insulation Multimeter
Cases (1)
- Fluke C25 Large Soft Case for DMMs
Other (1)
- Fluke TPAK ToolPak™ Magnetic Meter Hanger
Current clamps (1)
- Fluke i400 AC Current Clamp
