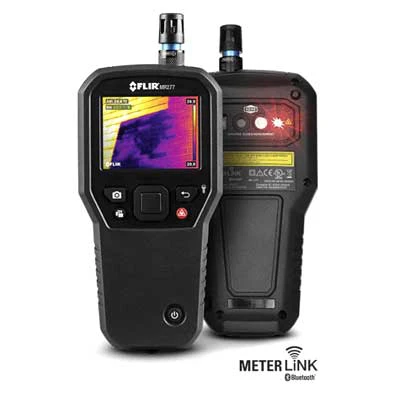

Name: FLIR MR277 Building Inspection System with Moisture Hygrometer & MSX® IR Camera
Brand: Flir
Availability: InStock

FLIR MR277 Building Inspection System

The MR277 is the first FLIR building inspection system to combine the advantages of Infrared Guided Measurement (IGM) and our patented Multi-Spectral Dynamic Imaging (MSX) with advanced environmental sensors to help you quickly locate, clearly identify, and easily document problems. IGM technology and a laser pointer isolate the area where you can use the integrated pinless moisture sensor for non-invasive readings or external pin probe for invasive measurements. With automatically calculated environmental readings and a field-replaceable humidity/temperature sensor, the MR277 lets you finish the job and minimize downtime. Connect to the FLIR METERLiNK® App to monitor readings and share critical data with your team members. Are you looking for the moisture meter? Tools Bangladesh offering this meter at the best price in Bangladesh and now you may discover FLIR MR277 Building Inspection System in Bangladesh, find moisture, diagnose issues & explore with MSX® IR imaging.

Key Features: FLIR MR277 Building Inspection System

Locate Problem Areas Faster
Quickly find moisture, air leaks, insulation voids, and more with thermal imaging that's 4× the resolution of earlier IGM moisture meters.
Diagnose Efficiently and Accurately
Pinpoint moisture issues with integrated non-invasive sensor, and capture accurate readings across the problem area with provided external pin probe and optional specialty moisture probes.
Do More in Less Time
A single tool accelerates finding issues and documenting problems in one file with thermal and comprehensive visual imagery along with accurate hygrometer readings and laser location.

Specifications: FLIR MR277 Building Inspection System

MSX

Embosses visual details on full resolution thermal image

Thermal image palettes

Iron, Rainbow, Arctic, White-Hot, Black-Hot

Pin Moisture

Range 7% to 30% / Basic Accuracy ±1.5% MC / Range 30% to 100% / Basic Accuracy Reference only

Pin Moisture Groups

11 Material Groups

Air Temperature

Range 32 to 122°F (0 to 50°C) / Basic Accuracy ±1.1°F (±0.6°C)

Relative Humidity

Range 10% to 90% / Basic Accuracy 2.5% RH

Dew Point

Range -30°C to 50°C (-22°F to 122°F) / Basic Accuracy ±1.0°C (±1.8°F)

Includes

FLIR MR13 Replaceable Temperature and Relative Humidity Sensor, FLIR MR02 Standard Pin Probe, quick start guide, international USB charger, USB cable, and lanyard

Imaging & Optical

Display Type

QVGA (320 × 240 pixels) 2.8 in. color TFT graphical display

Field of View [W x H]

57° × 44°

Image Modes

Thermal, Visual, MSX®

Image Update Speed Frequency

9 Hz

Imaging Detector

FLIR Lepton microbolometer

Laser Orientation

Single laser pointer to center of thermal image

MSX

Embosses visual details on full resolution thermal image

Sensitivity

<150 mK

Spectral Response

8 to 14µm

Thermal image minimum focus distance

10 cm (4 in)

Thermal image palettes

Iron, Rainbow, Arctic, White-Hot, Black-Hot

Thermal Image Resolution [W x H]

19200 pixels (160 × 120)

Measurement & Analysis

Air Temperature

Range 32 to 122°F (0 to 50°C) / Basic Accuracy ±1.1°F (±0.6°C)

Dew Point

Range -30°C to 50°C (-22°F to 122°F) / Basic Accuracy ±1.0°C (±1.8°F)

Image Calibration

Automatic with manual lock scale option

Measurement Resolution

0.1

Pin Moisture

Range 7% to 30% / Basic Accuracy ±1.5% MC / Range 30% to 100% / Basic Accuracy Reference only

Pin Moisture Groups

11 Material Groups

Pinless Measurement Depth

19 mm (0.75 in) max

Pinless Moisture Range

0 to 100

Response Time Pin Mode

750 ms

Response Time Pinless

100 ms

Communication & Data Storage

Saved Image File format

Radiometric JPEG

Stored Image Capacity

15000 images

Power

Auto Power Off

Programmable: Off, 5, 10, 20, or 30 minutes

Battery

Rechargeable 3.7 V, 5400 mAh LiPo

Continuous Run Time

8 hours max

Typical Usage

4 work weeks

General

Dimensions (H x W x L)

17.5 cm × 9.0 cm × 4.2 cm (6.9 in × 3.5 in × 1.7 in)

Includes

FLIR MR13 Replaceable Temperature and Relative Humidity Sensor, FLIR MR02 Standard Pin Probe, quick start guide, international USB charger, USB cable, and lanyard

Packaging Size

55 × 31 × 32 cm (21.6 × 12.3 × 12.4 in)

Weight

400 g (14.1 oz)

Environmental & Certifications

Agency Approvals

CE, FCC Class B, RCM

Certification Standards

EN 61326 (EMC), EN 60825-1 Class 2 (Laser)

Drop test

2 m (6.6 ft)

Mixing Ratio

Range 0 to 560 GPP (0.0 to 80.0 g/kg) / Basic Accuracy ±2 GPP (0.25 g/kg)

Operating Temperature

0°C to 45°C

Relative Humidity

Range 10% to 90% / Basic Accuracy 2.5% RH

Storage Temperature

-20°C to 60°C

Vapor Pressure

Range 0.0 to 12.0 kPa / Basic Accuracy ±0.05 kPa

Warranty

10 year

N/A

Accessories: FLIR MR277 Building Inspection System

Probes

Baseboard Probe (MR09)
Extension Pole (MR04)
Hammer and Wall Cavity Probe Combo (MR08)
Hammer Probe (MR07)
Wall Cavity Probe (MR06)

Cases and Pouches

MR10-2_Protective Case for FLIR Moisture Meters

Sensors

Ball Probe Moisture Sensor (MR12)
MR13_Temperature and Humidity Sensor
Temperature / RH Sensor and Extension Assembly (MR01-EXT)

Pins

2" pins, 1 pair (MR-PINS2)
2" pins, 10 pairs (MR-PINS2-10)
4" pins, 1 pair (MR-PINS4)
6" pins, 1 pair (MR-PINS6)
Impact Pin Moisture Probe (MR05)
Replaceable External Moisture Pin Probe (MR02)
