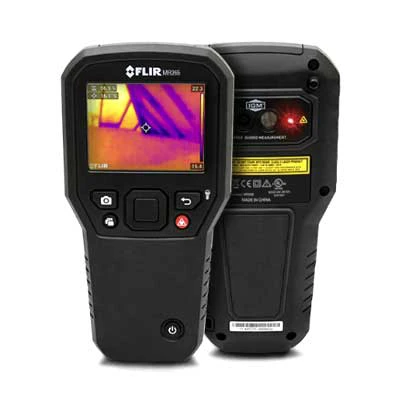

Key Features: FLIR MR265 Moisture Meter & Thermal Imager with MSX®

• Get to the problem faster

  Pinpoint problems at the source using the 160 × 120 (19,200 pixels) built-in thermal camera, 2 MP visual camera, bright worklight, laser, and MSX, which embosses visual details onto thermal images

• Work smarter

  Assess moisture with pinless or pin measurements, and choose from a variety of optional, compatible probe accessories for flexibility and convenience on the job

• Improve communication with customers

  Document both thermal and visual images before and after repairs, and create professional reports using FLIR Thermal Studio to better communicate problems and repairs

Specifications: FLIR MR265 Moisture Meter & Thermal Imager with MSX®

MSX

Embosses visual details on full resolution thermal image

Thermal image palettes

Iron, Rainbow, Arctic, White-Hot, Black-Hot

Pin Moisture

Range 7% to 30% / Basic Accuracy ±1.5% MC / Range 30% to 100% / Basic Accuracy Reference only

Pin Moisture Groups

11 Material Groups

Includes

FLIR MR265, FLIR MR02 Standard Pin Probe, quick start guide, international USB charger, USB cable, and lanyard

Imaging & Optical

Digital Camera

2MP, 83° FOV (70.5° HFOV x 56° VFOV)

Display Type

QVGA (320 × 240 pixels) 2.8 in. color TFT graphical display

Field of View [W x H]

Thermal FOV 57° x 44°

Image Modes

Thermal, Visual, MSX®

Image Update Speed Frequency

9 Hz

Imaging Detector

FLIR Lepton microbolometer

Laser Orientation

Single laser pointer to center of thermal image

MSX

Embosses visual details on full resolution thermal image

Sensitivity

<150 mK

Spectral Response

8 to 14 µm

Thermal image minimum focus distance

10 cm (4 in)

Thermal image palettes

Iron, Rainbow, Arctic, White-Hot, Black-Hot

Thermal Image Resolution [W x H]

19,200 pixels (160 × 120)

Measurement & Analysis

Image Calibration

Automatic with manual lock scale option

Measurement Resolution

0.1

Pin Moisture

Range 7% to 30% / Basic Accuracy ±1.5% MC / Range 30% to 100% / Basic Accuracy Reference only

Pin Moisture Groups

11 Material Groups

Pinless Measurement Depth

19 mm (0.75 in) max

Pinless Moisture Range

0 to 100

Response Time Pin Mode

750 ms

Response Time Pinless

100 ms

Communication & Data Storage

Internal Memory

8 GB

Saved Image File format

Radiometric JPEG

Stored Image Capacity

15000 images

Power

Auto Power Off

Programmable: off, 5, 10, 20 and 30 minutes

Battery

Rechargeable 3.7 V nominal, 5400 mAh LiPo

Continuous Run Time

10 hours maximum

Typical Usage

4 work weeks

General

Includes

FLIR MR265, FLIR MR02 Standard Pin Probe, quick start guide, international USB charger, USB cable, and lanyard

Packaging Size

28.5 × 14.5 × 10.5 cm (11.2 × 5.7 × 4.7 in)

Environmental & Certifications

Agency Approvals

CE, RCM, FCC Part 15B, UKCA

Certification Standards

EN 61326 (EMC), EN 60825-1 Class 2 (laser), IEC61010-1

Drop test

2 m (6.6 ft)

Warranty

10 year

N/A

Accessories: FLIR MR265 Moisture Meter & Thermal Imager with MSX®

Probes

• Baseboard Probe (MR09)
• Extension Pole (MR04)
• Hammer and Wall Cavity Probe Combo (MR08)
• Hammer Probe (MR07)
• Wall Cavity Probe (MR06)

Cases and Pouches

• MR10-2_Protective Case for FLIR Moisture Meters

Sensors

• Ball Probe Moisture Sensor (MR12)

Pins

• 2" pins, 1 pair (MR-PINS2)
• 2" pins, 10 pairs (MR-PINS2-10)
• 4" pins, 1 pair (MR-PINS4)
• 6" pins, 1 pair (MR-PINS6)
• Impact Pin Moisture Probe (MR05)
• Replaceable External Moisture Pin Probe (MR02)

Software

• FLIR Thermal Studio Suite
