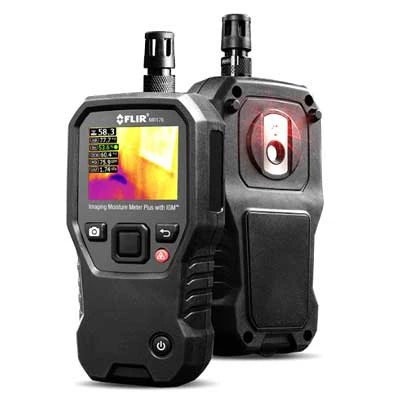

Key Features: FLIR MR176 IGM™ Moisture Meter with Replaceable Hygrometer

• Investigate Issues and Troubleshoot Quickly

  IGM helps you visually identify hidden moisture so you’ll know exactly where to place the meter probe for further investigation

• Minimize Downtime

  The field-replaceable temperature and relative humidity sensor can simply be removed and replaced when needed to reduce unnecessary downtime.

• Convenient, Flexible, Easy to Operate

  Get more done with the easy-to-navigate menu system. Share readings and images, and quickly create reports with free FLIR Tools software.

Specifications: FLIR MR176 IGM™ Moisture Meter with Replaceable Hygrometer

Thermal image palettes

Iron, Rainbow, Ice, Greyscale

Pin Moisture

Range 7% to 30% / Basic Accuracy ±1.5% MC / Range 30% to 100% / Basic Accuracy Reference only

Pin Moisture Groups

9 Material Groups

Air Temperature

Range 32 to 122°F (0 to 50°C) / Basic Accuracy ±1.1°F (±0.6°C)

Relative Humidity

Range 0 to 100% / Basic Accuracy 2.5%RH

Dew Point

Range -22 to 122°F (-30 to 50°C) / Basic Accuracy ±1.8°F (±1.0°C)

Includes

MR01 Replaceable Temperature and Relative Humidity Sensor, MR02 Standard Pin Probe, Quick Start Guide,International USB Charger, USB Cable

Imaging & Optical

Display Type

QVGA (320 x 240 pixel) 2.3" color TFT graphical display

Field of View [W x H]

51° × 38°

Gallery

17540

Image Update Speed Frequency

9Hz

Imaging Detector

FLIR Lepton microbolometer

Laser Orientation

Single laser pointer to center of thermal image

Sensitivity

<150mK

Spectral Response

8 to 14µm

Thermal image minimum focus distance

4" (10cm)

Thermal image palettes

Iron, Rainbow, Ice, Greyscale

Thermal Image Resolution [W x H]

4800 pixels (80 × 60)

Measurement & Analysis

Air Temperature

Range 32 to 122°F (0 to 50°C) / Basic Accuracy ±1.1°F (±0.6°C)

Detection Limit

19.7in2 (49cm2) (Wet Area Detection @ 32ft (10m)

Dew Point

Range -22 to 122°F (-30 to 50°C) / Basic Accuracy ±1.8°F (±1.0°C)

Image Calibration

Automatic with manual lock scale option

Measurement Resolution

0.1

Pin Moisture

Range 7% to 30% / Basic Accuracy ±1.5% MC / Range 30% to 100% / Basic Accuracy Reference only

Pin Moisture Groups

9 Material Groups

Pinless Measurement Depth

0.75" (19mm) Max

Pinless Moisture Range

0 to 100

Response Time Pin Mode

750ms

Response Time Pinless

100ms

Communication & Data Storage

Saved Image File format

BMP with measurement values overlaid

Stored Image Capacity

9999 images

Power

Battery

3.7V, 3000mAh Li-ion rechargeable via micro USB

Continuous Run Time

18 hours max

Typical Usage

4 work weeks

General

Includes

MR01 Replaceable Temperature and Relative Humidity Sensor, MR02 Standard Pin Probe, Quick Start Guide,International USB Charger, USB Cable

Packaging Size

33 cm x 14 cm x 12 cm (13 in. x 5.5 in. x 4.75 in.)

Environmental & Certifications

Agency Approvals

CE, FCC Class B, RCM

Certification Standards

EN 61326 (EMC), EN 60825-1 Class 2 (Laser)

Mixing Ratio

Range 0 to 560GPP (0.0 to 80.0 g/kg) / Basic Accuracy ±2GPP (0.25 g/kg)

Relative Humidity

Range 0 to 100% / Basic Accuracy 2.5%RH

Vapor Pressure

Range 0.0 to 12.0kPa / Basic Accuracy ±0.05kPa

Warranty

10 year
