Name: FLIR EM54 HVAC/R Environmental Meter
Brand: Flir
Availability: InStock

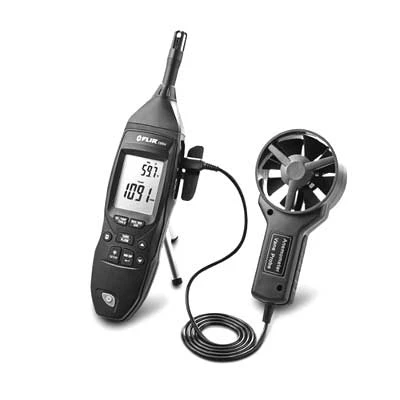

FLIR EM54 HVAC/R Environmental Meter

The FLIR EM54 is ideal for inspecting and troubleshooting HVAC/R ducting systems within residential, commercial, and industrial facilities. This meter can help you verify that duct inlets and outlets have the specified volumetric flow a prerequisite to an efficient functional system. Featuring humidity, wet bulb, and dew point functions, the EM54 can measure deviations from proper relative humidity levels. Plus, the included Type-K contact temperature probe is useful to check electric motors and thermal equipment components for proper operating temperatures. Explore FLIR EM54 HVAC/R Environmental Meter price in Bangladesh, discover precise environmental measurements and find HVAC/R issues quickly.

Key Features: FLIR EM54 HVAC/R Environmental Meter

ACCURATE AND RELIABLE
Receive high-quality data consistently, and work without interruption. Using the tripod, place the meter away from objects that may influence relative humidity measurements.
INSPECT AND TROUBLESHOOT EFFICIENTLY
Work on a wide range of systems more efficiently using the contact temperature probe and wet bulb/dew point calculations.
EASY TO USE
Intuitively operate this simple, ergonomic meter with a backlit display, a ‘hold’ function that freezes readings, and well-marked function keys.

Specifications: FLIR EM54 HVAC/R Environmental Meter

Air Velocity (Vane Anemometer Probe)

0.4 to 30 m/s, ±3% +0.2 m/s ; 79 to 5906 ft/min, ±3% +40 ft/min; 1.4 to 108 km/h, ±3% +0.8 km/h; 0.9 to 67.2 mph, ±3% +0.4 mph; 0.8 to 58.3 knots, ±3% +0.4 knots

Air Flow

0 to 999900 CMM (0 to 999900 CFM)

Air Temperature

10 to 30°C (50 to 86°F), ±1°C (1.8°F); -30 to 9.9°C (-22 to 50°F) and 31 to 60°C (88 to 140°F), ±2°C (3.6°F)

Relative Humidity

5% to 98% ±3.5%

Dew Point

-30 to 60°C (-22 to 140°F), ±3°C (4.8°F)

Wet Bulb (Calculated)

-30 to 50°C (-22 to 122°F), ±3°C (4.8°F)

Measurement & Analysis

Air Temperature

10 to 30°C (50 to 86°F), ±1°C (1.8°F); -30 to 9.9°C (-22 to 50°F) and 31 to 60°C (88 to 140°F), ±2°C (3.6°F)

Air Velocity (Vane Anemometer Probe)

0.4 to 30 m/s, ±3% +0.2 m/s ; 79 to 5906 ft/min, ±3% +40 ft/min; 1.4 to 108 km/h, ±3% +0.8 km/h; 0.9 to 67.2 mph, ±3% +0.4 mph; 0.8 to 58.3 knots, ±3% +0.4 knots

Dew Point

-30 to 60°C (-22 to 140°F), ±3°C (4.8°F)

Relative Humidity

5% to 98% ±3.5%

Temperature Type K thermocouple

-99.9 to 99.9°C (-148 to 212°F), ±1.5% +1°C (1.8°F); 100 to 1372°C (212 to 2502°F), ±1.5% +2°C (3.6°F)

Wet Bulb (Calculated)

-30 to 50°C (-22 to 122°F), ±3°C (4.8°F)

Imaging & Optical

Display Type

Backlit, multifunction LCD

Power

Auto Power Off (APO)

Configurable from 5 to 60 min in 8 increments

Battery life

120 hours typical

Battery status indicator

Low battery indication

Battery type

1x 9 V

General

Air Flow

0 to 999900 CMM (0 to 999900 CFM)

Anemometer Body Length

150 mm (5.9 in)

Anemometer Cable Length

950 mm (37.4 in)

Anemometer Vane Diameter

70 mm (2.8 in)

Dimensions (L x W x H)

275 × 65 × 45 mm (10.8 × 2.6 × 1.8 in)

Housing material

Impact-resistant plastic

Includes

Vane anemometer probe, Type-K thermocouple probe, soft carrying pouch, 9 V battery, tripod mount

Weight

283.9 g (10 oz) with battery installed, no external probes

Environmental & Certifications

Certifications

CE, RCM

Drop test

1 m (3.3 ft), not including removeable probes

Operating Temperature

0 to 50°C (32 to 122°F)

Storage Temperature Range

-10 to 60°C (14 to 140°F)

Warranty

Limited 3 years
