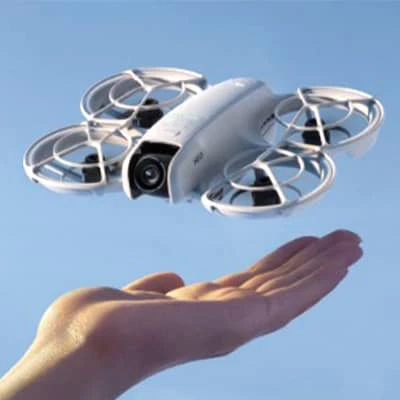

DJI Neo Fly More Combo

Key Features: Dji Neo Fly More Combo

• 135 g, Light & Portable
• Palm Takeoff & Landing
• AI Subject Tracking, QuickShots
• Multiple Control Options
• 4K Ultra-Stabilized Video
• Full-Coverage Propeller Guards

Specifications: Dji Neo Fly More Combo

Aircraft

• Takeoff Weight

• Approx. 135 g

• Dimensions

• 130×157×48.5 mm (L×W×H)

• Max Ascent Speed

• 0.5 m/s (Cine mode)
  2 m/s (Normal mode)
  3 m/s (Sport mode)

• Max Descent Speed

• 0.5 m/s (Cine mode)
  2 m/s (Normal mode)
  2 m/s (Sport mode)

• Max Horizontal Speed (near sea level, no wind)

• 6 m/s (Normal mode)
  8 m/s (Sport mode)
  16 m/s (Manual mode)


• Max Takeoff Altitude

• 2000 m

  Measured in a windless environment when taking off from an altitude of 2000 m and ascending vertically by 120 m, using Sport mode, and from 100% battery level until 20%. Data is for reference only. Always pay attention to reminders on the camera view during your flight.

• Max Flight Time

• Approx. 18 mins (approx. 17 mins with the Propeller Guards)*
  Each battery allows the drone to perform at least 20 palm takeoff and landing for shoots in succession**

  * Measured when flying forward at a speed of 2 m/s in a windless environment 20 m above sea level, with camera parameters set to 1080p/30fps, video mode off, and from 100% battery level until 0%. Results may vary depending on the environment, actual use, and firmware version.
  ** Measured after DJI Neo is activated, with a fully charged battery and default settings, and using Circle, Rocket, and Dronie modes, and is for reference only.

• Max Hovering Time

• Approx. 18 mins (approx. 17 mins with the Propeller Guards)

  Measured when hovering in a windless environment 20 m above sea level, with camera parameters set to 1080p/30fps, video mode off, and from 100% battery level until 0%. Results may vary depending on the environment, actual use, and firmware version.

• Max Flight Distance

• 7 km‌

  Measured when flying forward at a speed of 8 m/s in a windless environment 20 m above sea level, with camera parameters set to 1080p/30fps, video mode off, and from 100% battery level until 0%. Results may vary depending on the environment, actual use, and firmware version.

• Max Wind Speed Resistance

• 8 m/s (Level 4)

• Operating Temperature

• -10° to 40° C (14° to 104° F)

• Global Navigation Satellite System

• GPS + Galileo + BeiDou

• Hovering Accuracy Range

• Vertical:
  ±0.1 m (with vision positioning)
  ±0.5 m (with GNSS positioning)

  Horizontal:
  ±0.3 m (with vision positioning)
  ±1.5 m (with GNSS positioning)

• Internal Storage

• 22 GB

• Class

• C0 (EU)

Camera

• Image Sensor

• 1/2-inch image sensor

• Lens

• FOV: 117.6°
  Format Equivalent: 14 mm
  Aperture: f/2.8
  Focus: 0.6 m to ∞

• ISO Range

• 100-6400 (Auto)
  100-6400 (Manual)

• Shutter Speed

• Video: 1/8000-1/30 s
  Photo: 1/8000-1/10 s

• Max Image Size

• 12 MP Photo
  4000×3000 (4∶3)
  4000×2256 (16∶9)

• Still Photography Modes

• Single/Timed Shot

• Photo Format

• JPEG

• Video Resolution

• EIS Off:
  4K (4:3): 3840×2880@30fps
  1080p (4:3): 1440×1080@60/50/30fps

  EIS On:
  4K (16:9): 3840×2160@30fps
  1080p (16:9): 1920×1080@60/50/30fps

• Video Format

• MP4

• Max Video Bitrate

• 75Mbps

• Supported File System

• exFAT

• Color Mode

• Normal

• EIS

• Supports RockSteady, HorizonBalancing, and turning stabilization off.*

  * When using a 16:9 aspect ratio, only RockSteady or HorizonBalancing can be enabled. Stabilization is not available in 4:3 aspect ratio. When stabilization is turned off, footage captured supports offline stabilization with Gyroflow.

Gimbal

• Stabilization

• Single-axis mechanical gimbal (tilt)

• Mechanical Range

• Tilt: -120° to 120°

• Controllable Range

• Tilt: -90° to 60°

• Max Control Speed (tilt)

• 100°/s

• Angular Vibration Range

• ±0.01°

• Image Roll Correction

• Supports correction of footage recorded on the drone
  Live view correction is unavailable only when using with goggles

Sensing

• Sensing Type

• Downward visual positioning

• Downward

• Precise Hovering Range: 0.5-10 m

• Operating Environment

• Downward:
  Non-reflective, discernible surfaces with diffuse reflectivity of >20% (such as walls, trees, or people)
  Adequate lighting (lux > 15, normal indoor lighting conditions)

Video Transmission

• Video Transmission System

• O4

• Live View Quality

• With DJI RC-N3 Remote Controller: Up to 1080p/60fps
  With DJI Goggles 3 plus DJI RC Motion 3/DJI FPV Remote Controller 3: Up to 1080p/60fps

• Operating Frequency

• 2.400-2.4835 GHz
  5.170-5.250 GHz
  5.725-5.850 GHz

  Operating frequency allowed varies among countries and regions. Please refer to local laws and regulations for more information.

• Transmitter Power (EIRP)

• 2.4 GHz:
  ＜26 dBm (FCC)
  < 20 dBm (CE/SRRC/MIC)

  5.1 GHz:
  < 23 dBm (CE)

  5.8 GHz:
  ＜26 dBm (FCC)
  < 14 dBm (CE)
  < 26 dBm (SRRC)

• Communication Bandwidth

• Max 40 MHz

• Max Transmission Distance (unobstructed, free of interference)

• FCC: 10 km
  CE: 6 km
  SRRC: 6 km
  MIC: 6 km

  The data was measured in an unobstructed outdoor environment free of interference and sho wed the farthest communication range for one-way, non-return flights under each standard. The maximum video transmission distance in the actual flight scenarios is limited by the drone's maximum flight distance. Always pay attention to RTH reminders on the live view during your flight.

• Max Transmission Distance (unobstructed, with interference)

• Strong Interference (urban landscape): Approx. 1.5-3 km
  Medium Interference (suburban landscape): Approx. 3-6 km
  Low Interference (suburb/seaside): Approx. 6-10 km

  Data tested under FCC standard in unobstructed environments with typical interference. Used for reference purposes only and provides no guarantee for actual flight distance.

• Max Transmission Distance (obstructed, with interference)

• Low Interference and Obstructed by Buildings: Approx. 0-0.5 km
  Low Interference and Obstructed by Trees: approx. 0.5-3 km

  Data tested under FCC standard in environments with typical low interference. Used for reference purposes only and provides no guarantee for actual transmission distance.

• Max Download Speed

• Wi-Fi: 25 MB/s

  Measured in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz. Download speeds may vary depending on the actual conditions.

• Lowest Latency

• With DJI RC-N3 Remote Controller: Approx. 120 ms

  Depending on the actual environment and mobile device.

• Max Video Bitrate

• 50Mbps

• Antennas

• Two antennas, 1T2R

Wi-Fi:

• Protocol

• 802.11a/b/g/n/ac

• Operating Frequency

• 2.400-2.4835 GHz
  5.725-5.850 GHz

  Operating frequency allowed varies among countries and regions. Please refer to local laws and regulations for more information.

• Transmitter Power (EIRP)

• 2.4 GHz:
  < 20 dBm (FCC/CE/SRRC/MIC)

  5.8 GHz:
  ＜20 dBm (FCC/SRRC)
  ＜14 dBm (CE)

• Effective Operating Range

• 50 m

  Tested in an outdoor open environment free of interference. The video transmission distance varies by operating environment.

Bluetooth

• Protocol

• Bluetooth 5.1

• Operating Frequency

• 2.400-2.4835 GHz

  Operating frequency allowed varies among countries and regions. Please refer to local laws and regulations for more information.

• Transmitter Power (EIRP)

• ＜ 10 dBm

Battery

• Capacity

• 1435 mAh

• Weight

• Approx. 45 g

• Nominal Voltage

• 7.3 V

• Max Charging Voltage

• 8.6 V

• Type

• Li-ion

• Energy

• 10.5 Wh

• Charging Temperature

• 5° to 40° C (41° to 104° F)

• Charging Time

• When Using the Two-Way Charging Hub (60W max charging power): Approx. 60 minutes to charge three batteries simultaneously from 0% to 100%
  When Directly Charging the Aircraft Body (15W max charging power): Approx. 50 minutes to charge from 0% to 100%

Charger

• Recommended Charger

• DJI 65W Portable Charger
  USB Power Delivery charger

Battery Charging Hub

• Input

• 5 V, 3 A
  9 V, 3 A
  12 V, 3 A
  15 V, 3 A
  20 V, 3 A

• Output (charging)

• 5 V, 2 A

• Charging Type

• 3 batteries charged simultaneously

  The number of batteries that can be charged simultaneously depends on the power of the charger used. Using a charger of more than 45 W allows for charging three batteries at once while using a charger of less than 45 W can only charge two batteries simultaneously. Refer to the charging protocols supported by the charger.

• Compatibility

• DJI Neo Intelligent Flight Battery

Storage

• Recommended microSD Cards

• Does not support storage expansion with an external SD card

DJI RC-N3 Remote Controller

• Max Operating Time

• Without Charging Any Mobile Device: 3.5 hours
  When Charging a Mobile Device: 1.5 hours

• Operating Temperature

• -10° to 40° C (14° to 104° F)

• Charging Temperature

• 5° to 40° C (41° to 104° F)

• Charging Time

• 2 hours

• Charging Type

• 5 V, 2 A

• Battery Capacity

• 2600 mAh

• Weight

• Approx. 320 g

• Dimensions

• 104.2×150×45.2 mm (L×W×H)

• Operating Frequency

• 2.400-2.4835 GHz
  5.170-5.250 GHz
  5.725-5.850 GHz

  Operating frequency allowed varies among countries and regions. Please refer to local laws and regulations for more information.

• Transmitter Power (EIRP)

• 2.4 GHz:
  ＜33 dBm (FCC)
  < 20 dBm (CE/SRRC/MIC)

  5.1 GHz:
  < 23 dBm (CE)

  5.8 GHz:
  ＜33 dBm (FCC)
  < 14 dBm (CE)
  < 30 dBm (SRRC)
