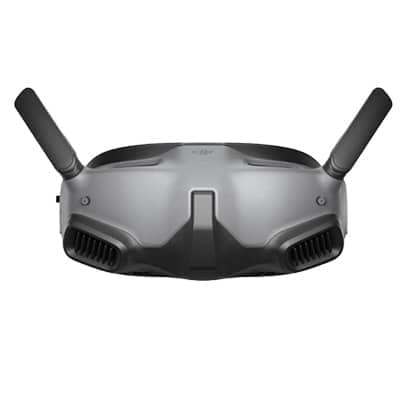

DJI Goggles Integra

Key Features:

• Lightweight and Portable
• Integrated Design
• Micro-OLED Screens
• DJI O3+ Video Transmission
• HD Low-Latency

Specifications:

Goggles

• Model

• RCDS13

• Weight

• Approx. 410 g (battery included)

• Dimensions (L×W×H)

• With antennas folded: 170×104×75 mm
  With antennas unfolded: 205×104×104 mm

• Screen Size (single screen)

• 0.49-inch

• Resolution (single screen)

• 1920×1080

• Refresh Rate

• Up to 100 Hz

• IPD Range

• 56-72 mm

• FOV (single screen)

• 44°

• Video Recording Format

• MOV

• Supported Video Playback Formats

• MP4, MOV (video formats: H.264, H.265; audio formats: AAC, PCM)

• Operating Temperature

• -10° to 40° C (14° to 104° F)

• Power Input

• Built-in battery

• Supported SD Cards

• microSD (up to 512 GB)

• Recommended microSD Cards

• SanDisk Extreme U3 V30 A1 32GB microSDXC
  SanDisk Extreme Pro U3 V30 A1 32GB microSDXC
  Lexar 1066x U3 V30 A2 64GB microSDXC
  Lexar 1066x U3 V30 A2 128GB microSDXC
  Lexar 1066x U3 V30 A2 256GB microSDXC
  Lexar 1066x U3 V30 A2 512GB microSDXC
  Kingston Canvas Go! Plus U3 V30 A2 64GB microSDXC
  Kingston Canvas Go! Plus U3 V30 A2 128GB microSDXC
  Kingston Canvas React Plus U3 V90 A1 64GB microSDXC
  Kingston Canvas React Plus U3 V90 A1 128GB microSDXC
  Kingston Canvas React Plus U3 V90 A1 256GB microSDXC
  Samsung EVO Plus U3 V30 A2 512GB microSDXC

Video Transmission

• Video Transmission

• When used with different aircraft, the goggles will automatically select the corresponding firmware to match the video transmission specification of the aircraft.
  DJI Avata: O3+

• Operating Frequency

• 2.4000-2.4835 GHz
  5.725-5.850 GHz
  The 5.8 GHz frequency band is currently banned in certain countries or regions. For details, please refer to local laws and regulations.

• Transmitter Power (EIRP)

• 2.4000-2.4835 GHz:
  < 30 dBm (FCC)
  < 20 dBm (CE/SRRC/MIC/KC)
  5.725-5.850 GHz:
  < 30 dBm (FCC)
  < 23 dBm (SRRC)
  < 14 dBm (CE/KC)

• Transmission Latency

• 1080p/100fps: as low as 30 ms
  1080p/60fps: as low as 40 ms
  Measured in an open outdoor environment without interference. Actual data varies with different aircraft models.

• Max Transmission Distance

• When used with DJI Avata or the DJI O3 Air Unit, DJI Goggles Integra can achieve the following max video transmission distance:
  10 km (FCC), 2 km (CE), 6 km (SRRC)
  When used with DJI FPV, DJI Goggles Integra can achieve the following max video transmission distance:
  10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC)

• Max Video Bitrate

• 50 Mbps
  Measured in an open outdoor environment without interference. Actual data varies with operating environment.

Battery

• Weight

• Approx. 185 g (headband included)

• Dimensions (L×W×H)

• 120×51×71 mm

• Capacity

• 2450 mAh

• Voltage

• 5.6-8.4 V

• Type

• Li-ion

• Chemical System

• LiNiMnCoO2

• Energy

• 17.64 Wh

• Charging Temperature

• 5° to 45° C (41° to 113° F)

• Max Charging Power

• 15 W (charging when powered off)

• Operating Time

• Approx. 2 hours
  Measured with an ambient temperature of 25° C (77° F), screen brightness at 4, connection to DJI Avata, the video transmission mode set to 1080p/100fps, head tracking off, and the goggles' battery fully charged and not supplying power to external devices such as smartphones.

Includes:

• DJI Goggles Integra × 1
• USB-C OTG Cable × 1
• DJI Goggles Integra Eyeglass Frames (Pair) × 2
• DJI Goggles Integra Corrective Lenses (Pair) × 11
• DJI Goggles Integra Top Headband × 1
• Lens Cleaning Cloth × 1
