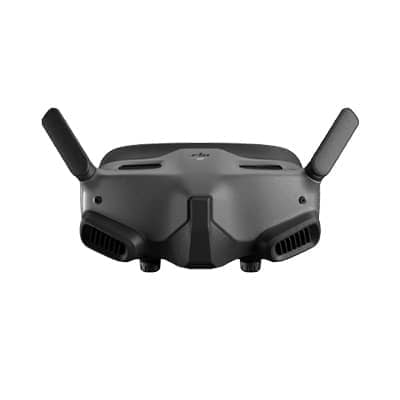

DJI Goggles 2

Key Features:

• 290g Compact and Portable Design
• Dual 1080p Micro-OLED Screens
• Diopter Adjustment from +2.0 to -8.0 D
• 1080p/100fps Video Transmission with Latency as Low as 30 ms
• Wi-Fi Wireless Streaming Supporting DLNA Protocol


Specifications:

DJI Goggles 2

• Model

• RCDS18

• Weight

• Approx. 290 g (headband included)

• Dimensions (L×W×H)

• With antennas folded: 167.40×103.90×81.31 mm
  With antennas unfolded: 196.69×103.90×104.61 mm

• Screen Size (single screen)

• 0.49-inch

• Resolution (single screen)

• 1920×1080

• Refresh Rate

• Up to 100 Hz

• Interpupillary Distance Range

• 56-72 mm

• Diopter Adjustment Range

• -8.0 D to +2.0 D

• FOV (single screen)

• 51°

• Communication Frequency

• 2.400-2.4835 GHz
  5.725-5.850 GHz [1]

• Transmission Power (EIRP)

• 2.4 GHz: < 30 dBm (FCC), < 20 dBm (CE/SRRC/MIC/KC)
  5.8 GHz: < 30 dBm (FCC), < 23 dBm (SRRC), < 14 dBm (CE/KC)

• Video Recording Format

• MOV

• Supported Video and Audio Playback Formats

• MP4, MOV (video coding formats: H.264, H.265; audio formats: AAC, PCM)

• Wi-Fi Wireless Streaming

• Supports DLNA protocol

• Operating Temperature

• -10° to 40° C (14° to 104° F)

• Power Input

• DJI Goggles 2 Battery

• Supported SD Cards

• microSD (up to 256 GB)

Wi-Fi

• Protocol

• Wi-Fi 802.11b/a/g/n/ac

• Communication Frequency

• 2.400-2.4835 GHz
  5.150-5.250 GHz (indoor use only) [2]
  5.725-5.850 GHz

• Transmission Power (EIRP)

• 2.4 GHz: < 20 dBm (FCC/CE/SRRC/MIC/KC)
  5.1 GHz: < 20 dBm (FCC/CE/MIC/KC)
  5.8 GHz: < 20 dBm (FCC/SRRC/KC), < 14 dBm (CE)

Bluetooth

• Protocol

• Bluetooth 5.2

• Communication Frequency

• 2.400-2.4835 GHz

• Transmission Power (EIRP)

• < 8 dBm

Video Transmission

• Video Transmission Latency [3]

• 1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.
  1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.

• Max Video Transmission Bitrate [3]

• 50 Mbps

• Video Transmission Range [3]

• When used with DJI Avata or the DJI O3 Air Unit, DJI Goggles 2 can achieve the following max video transmission distance:
  10 km (FCC), 2 km (CE), 6 km (SRRC)
  When used with DJI FPV, DJI Goggles 2 can achieve the following max video transmission distance:
  10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC)

DJI Goggles 2 Battery

• Capacity

• 1800 mAh

• Voltage

• 7-9 V (1.5 A)

• Type

• Li-ion

• Chemical System

• LiNiMnCoO2

• Energy

• 18 Wh

• Charging Temperature

• 0° to 45° C (32° to 113° F)

• Max Charging Power

• 12.6 W (5 V/2 A, 9 V/1.4 A)

• Operating Time

• Approx. 2 hours [4]

• Weight

• Approx. 122 g

• Dimensions (L×W×H)

• 73.04×40.96×26 mm

DJI Motion Controller

• Weight

• Approx. 167 g

• Communication Frequency

• 2.400-2.4835 GHz
  5.725-5.850 GHz

• Transmission Power (EIRP)

• 2.4 GHz: ≤ 28.5 dBm (FCC), ≤ 20 dBm (CE/SRRC/MIC)
  5.8 GHz: ≤ 31.5 dBm (FCC), ≤ 19 dBm (SRRC), ≤ 14 dBm (CE)

• Operating Temperature

• -10° to 40° C (14° to 104° F)

Other

• Footnotes

• 1. The 5.8 GHz frequency band is currently banned in certain countries or regions. For details, please refer to local laws and regulations.
  2. The 5.1 GHz frequency band is currently banned in Thailand. For details, please refer to local laws and regulations.
  3. Tested in an outdoor open environment without interference. Please refer to actual use.
  4. Tested with a fully charged battery in a 25°C (77°F) environment, screen brightness at 6, in 1080p/100fps video transmission mode, without supplying power to any external equipment. Actual operating time may vary due to differences in the number of charge cycles, environment temperature, or external factors.
