Amprobe UAT-505 Underground Utilities Locator Kit
The Amprobe UAT-505 Underground Utility Locator Kit is the rugged, economical solution for locating underground energized and de-energized wires, cables and pipes. The Transmitter utilizes the proven 33 kHz frequency, which is ideal for most locating applications. With the Receiver, trace the signal in Induction or Direct Test Leads Connection Modes. The Receiver features fast sound and meter response and easy depth measurements to 20 feet at the push of a button, as well as highly sensitive Power and Radio Modes which detect energized wires and radio signals on underground lines.
Discover precision and reliability with the Amprobe UAT-505 Underground Utilities Locator Kit, designed to make locating buried utilities fast, safe, and hassle-free. Perfect for construction professionals, surveyors, and electricians, this advanced locator kit detects underground cables, pipes, and other utilities with high accuracy, helping prevent costly damage and ensuring project safety.
Equipped with intuitive controls and a durable design, the Amprobe UAT-505 offers versatile functionality in any environment. Its ergonomic receiver provides clear signal feedback, while the transmitter ensures strong and consistent signal penetration for deeper utility lines. Lightweight and portable, the kit is ideal for on-site operations and repeated daily use, making it an essential tool for professionals in Bangladesh.
Looking for pricing? The Amprobe UAT-505 Underground Utilities Locator Kit Price in Bangladesh is highly competitive at Tools Bangladesh, offering excellent value for professionals seeking dependable utility detection solutions. We ensure quick delivery and authentic products, giving you peace of mind with every purchase.
Key Features
- Locates underground energized and de-energized wires and cables
- Locates underground metal pipes
- Multiple tracing modes for locating and tracing energized and de-energized utilities in a variety of applications: Power Mode, Radio Mode, Induction Mode and Direct Test Leads Connection Mode
- Depth measurement up to 20 ft, detect and trace utilities buried up to 100 ft deep (Direct Test Leads Connection Mode only)

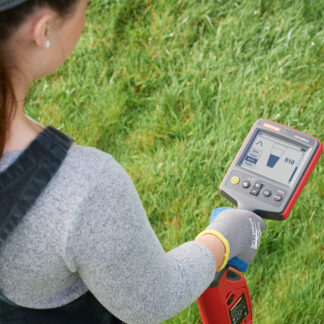

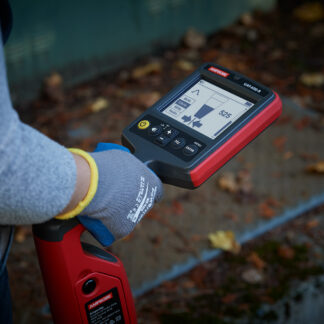

- Receiver features a high-contrast display with an automatic backlight and semi-automatic gain control for fast signal location and control
- 33 kHz transmitting frequency: best frequency for general locating
- Complete ready-to-use kit: Receiver, Transmitter, test leads, batteries and carrying case
Specifications
| Features |
UAT-600-R Receiver |
UAT-500-T Transmitter |
| Measurement category |
CAT IV 600 V |
N/A |
| Operating voltage/current |
0 to 600 V |
De-energized circuit only for Direct Connection Mode |
| Operating frequency/tracing modes |
Active tracing: 33 kHz and 8 kHz
Passive tracing: 50/60 Hz and Radio |
De-energized:
– Induction Mode
– Direct Connection Mode
– Clamp Mode |
| Locating modes |
Peak and Null |
– |
| Depth measurement and accuracy |
Up to 20 ft
4 in to 10 ft: pm; 3 %
10 ft to 20 ft: pm; 5 % |
– |
| Display backlight |
Automatic |
N/A |
| Audio indication |
Increasing closer to the signal |
Continuous Signal Mode: Continuous audio tone
Pulse Signal Mode: Fast pulsed audio tone |
| Transmitting mode power output |
– |
Max. 1 watt |
| Output voltage |
– |
Max. 35 V rms |
| Output current |
– |
Max. 100 mA rms |
| Sensitivity adjustment (gain control) |
Yes |
– |
| Sensitivity at 1 m (typical) |
Power: 2 mA
Radio: 20 μA
8 kHz: 5 μA
33 kHz: 5 μA |
– |
| Display |
4.3 in, 320 x 240 BW outdoor LCD display with auto backlight |
N/A |
| Update rate |
Instantaneous |
– |
| Operating temperature and humidity |
-4 °F to 122 °F (-20 °C to 50 °C), ≤90% RH |
-4 °F to 122 °F (-20 °C to 50 °C), ≤80% RH |
| Storage temperature and humidity |
-40 °F to 140 °F (-40 °C to 60 °C), ≤90% RH |
-40 °F to 140 °F (-40 °C to 60 °C), ≤80% RH |
| Operating altitude |
< 6561 ft (< 2000 m) |
| Pollution degree |
2 |
| Water and dust resistance |
IP54 |
| Power supply |
(6) 1.5 V AA alkaline batteries |
(4) 1.5 V D cell alkaline batteries |
| Auto power off |
15 minutes idle |
– |
| Battery life |
Approx. 35 hours at 70 °F (21 °C) (Typical) |
Approx. 12 hours at 70 °F (21 °C) (Typical) |
| Agency approval |
    |
| Safety compliance |
IEC 61010-1, IEC 61010-2-033
CSA/UL 61010-1, CSA/UL 61010-2-033 |
IEC 61010-1, CSA/UL 61010-1
IEC 61010-031, CSA/UL 61010-031 (test leads) |
| Size (H x W x L) |
Approx. 11.9 x 4.7 x 30.7 in (302 x 120 x 779 mm) |
Approx. 18.1 x 3.5 x 2.6 in (460 x 90 x 65 mm) |
| Weight |
Approx. 4.2 lb (1.9 kg) (batteries installed) |
Approx. 3.9 lb (1.77 kg) (batteries installed) |
What's Included
- UAT-600-R Receiver
- UAT-500-T Transmitter
- CC-UAT-500 Carrying Case
- TL-UAT-500 Test Leads Kit (green test lead with detachable green alligator clip, gray test lead with permanently attached gray alligator clip, ground stake)
- 6 x AA Batteries
- 4 x D Batteries
Optional Accessories:
- AF-600 A-Frame Ground Fault Locator
- TL-600-25M Extension test lead, 80′ (25 m)
- SC-600 Signal Clamp
- UAT-600-T UAT-600 Series CAT IV 600 V Transmitter
What's Included
- UAT-600-R Receiver
- UAT-500-T Transmitter
- CC-UAT-500 Carrying Case
- TL-UAT-500 Test Leads Kit (green test lead with detachable green alligator clip, gray test lead with permanently attached gray alligator clip, ground stake)
- 6 x AA Batteries
- 4 x D Batteries
Optional Accessories:
- AF-600 A-Frame Ground Fault Locator
- TL-600-25M Extension test lead, 80′ (25 m)
- SC-600 Signal Clamp
- UAT-600-T UAT-600 Series CAT IV 600 V Transmitter
