Name: Amprobe AF-600 A-Frame Cable Ground Fault Locator
Brand: Amprobe
Availability: OutOfStock

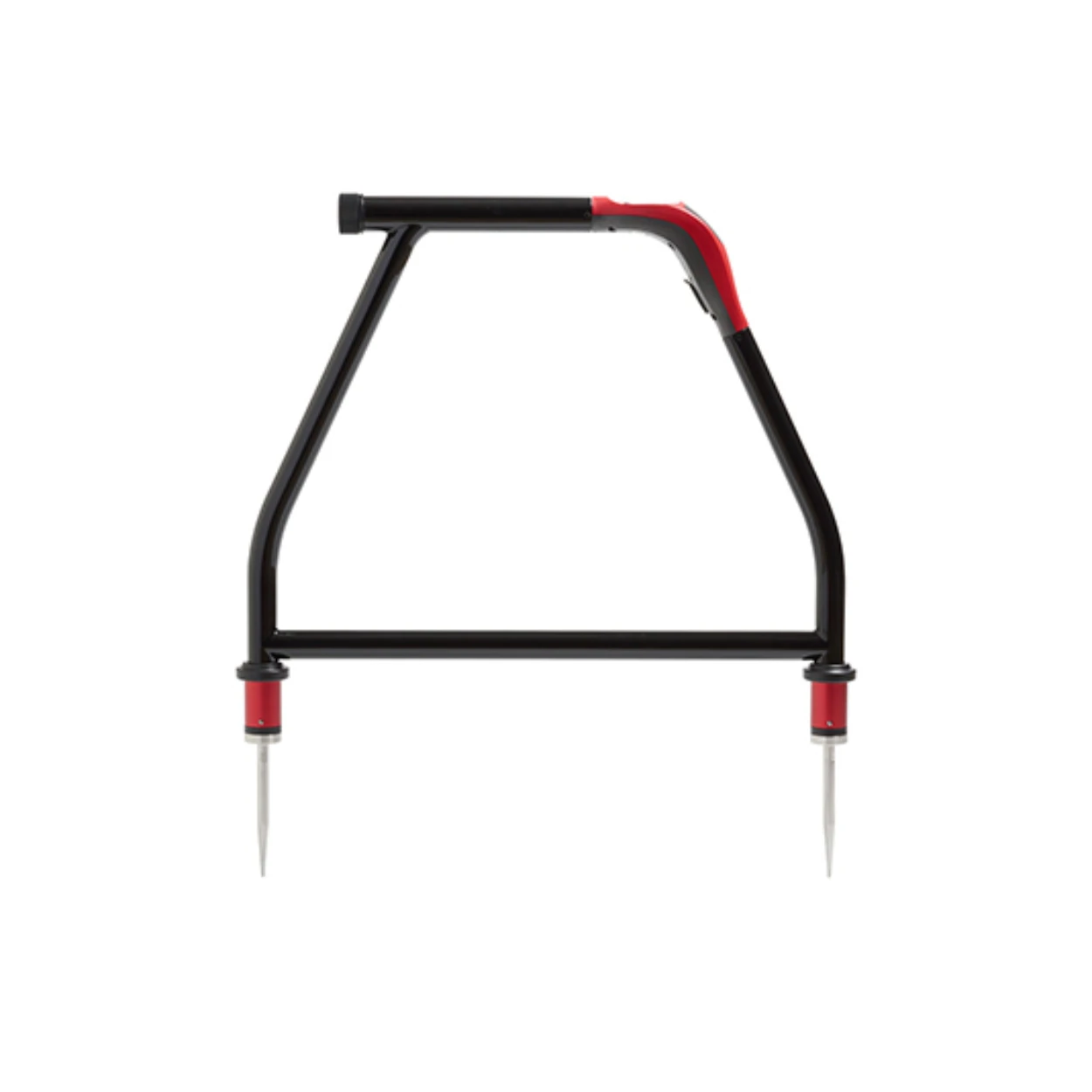

Amprobe AF-600 A-Frame Cable Ground Fault Locator

The AF-600 A-Frame cable ground fault finder is specifically designed for the Amprobe UAT-600 Underground Utilities Locator Series. In combination with the UAT-600 Transmitter, it will pinpoint the place where a cable metal conductor (either a sheath or a metallic conductor of the wire) touches the ground. It can also detect other conductors to ground faults such as pipeline coating defects.

The Amprobe AF-600 A-Frame Cable Ground Fault Locator is a professional-grade tool designed for electrical contractors, utility technicians, and maintenance teams to locate ground faults in underground or insulated cables quickly. Engineered for precision, this device allows you to pinpoint cable faults without unnecessary excavation, saving both time and cost. Its ergonomic A-frame design ensures comfort during extended use, while the robust construction guarantees durability in tough field conditions. With intuitive operation and high sensitivity, the AF-600 provides reliable readings even in challenging environments, making it an essential tool for cable maintenance and troubleshooting.

At Tools Bangladesh, we offer the Amprobe AF-600 A-Frame Cable Ground Fault Locator at a competitive price, ensuring you get top-quality equipment without stretching your budget. Check our Amprobe AF-600 A-Frame Cable Ground Fault Locator Price in Bangladesh for the best deal and enjoy fast delivery and dedicated customer support.

Whether you are upgrading your electrical tool kit or starting a professional project, the AF-600 delivers accurate fault location, improved workflow efficiency, and peace of mind. Trusted by professionals worldwide, this locator is perfect for utility networks, industrial plants, and commercial installations.

Key Features

Optional accessory for Amprobe UAT-600 Underground Utilities Locator Series
Works in conjunction with the UAT-600-T Transmitter
Locate cable and wires ground faults, sheath faults or pipeline coating defects (direct contact of the utility with the ground is required to pinpoint a fault)
Used to find the point where metal is touching the ground (shield is rusted/rubber buffer is broken) and power is leaking, creating noise on a cable
Find the point of leakage around a cable (ground faults are common problems with electric cables) – saves money by pinpointing leakage point
Adjustable volume control
Advanced technology and digital signal processing makes pinpointing process fast, accurate and unambiguous:
- 1. Compass guidance with numeric fault field strength indicates direction to the place of the fault
  2. Distance sensitive left/right guidance guides the user to precisely follow the path of the buried utility
  3. Automatic gain control quickly detects tracing signal and precisely adjust A-Frame sensitivity

Specifications

Features	AF-600 A-Frame
Tracing mode (de-energized)	8 kHz
Locating mode	Ground fault locating
Sensitivity (typical)	Cable locate mode at 1 meter depth: 10 uA Fault locate mode: up to 2 MΩ fault
Display backlight	Automatic
Audio indication	Speaker indicates left/right by pulsed/continuous tone
Compatible transmitter	UAT-600-T Transmitter
Display	1.28 in, 128 x 128 BW outdoor LCD display with auto backlight
Update rate	Instantaneous
Operating temperature and humidity	-4 °F to 122 °F (-20 °C to 50 °C), ≤90% RH
Storage temperature and humidity	-40 °F to 140 °F (-40 °C to 60 °C), ≤90% RH
Operating altitude	< 6561 ft (< 2000 m)
Pollution degree	2
Water and dust resistance	IP54
Drop proof	3.28 ft (1 m)
Power supply	(6) 1.5 V AA alkaline batteries
Auto power off	15 minutes idle
Battery life	Approx. 60 hours at 70 °F (21 °C) (Typical)
Agency approval
Safety compliance	IEC 61010-1 CSA/UL 61010-1
Size (H x W x L)	Approx. 14 x 9 x 4.7 in (355 x 230 x 120 mm)
Weight	Approx. 4.2 lb (1.9 kg) (batteries installed)
