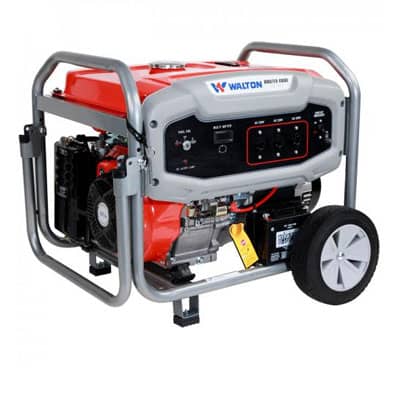

WALTON Igniter 5500E:
The WALTON Igniter 5500E is a gasoline generator with a non-contact transistor ignition system for easy and reliable starting. It features an automatic voltage regulator (AVR) to maintain a stable output voltage, reducing the risk of power fluctuations. With a frequency of 50 Hz, the generator delivers consistent power.
The generator's maximum AC output power is 5.5 kW, with a rated output power of 5.0 kW, making it suitable for a range of applications, from powering tools to providing backup power for homes. It can operate continuously for up to 8 hours at its rated load, offering extended use for various needs.
Are you trying to find a good Generator? Yes, this is the perfect moment and place for you. Tools Bangladesh is offering testing supplies and apparatus. As a result, you may get the best shipping options and fair pricing on the tool you want from us in Bangladesh.
Key Features:
- - Non-contact transistor ignition system
- - Automatic voltage regulator (AVR)
- - Frequency: 50 Hz
- - Max. AC output power: 5.5 KW
- - Rated output power: 5.0 KW
- - Operating time: 8 hours continuous at rated load
Specifications:
Start:
| Starting System |
Electric & Recoil Start |
| Fuel : |
| Fuel Tank capacity |
25 L |
| Fuel Option |
Petrol/Octane |
| Fuel Consumption |
2.6 L/Hr. at rated load |
| Time : |
| Operating Time |
8 Hours Continuously at rated load |
| Battery : |
| Battery rating |
12 Volt, 9 Ah |
| Engine : |
| Engine Type |
Single-cylinder; 4-stroke gasoline engine |
| Engine Displacement |
420 cc |
| Cooling system |
Air cooling |
| Shaft position |
Horizontal shaft |
| Engine oil capacity |
1 L |
| Ignition : |
| Ignition Mode |
Transistorized Magneto |
| Load Capacity : |
| Capacity Output (Rated) |
5000 Watt |
| Capacity Output (Maximum) |
5500 Watt |
| Frequency : |
| Frequency in hertz |
50 Hz |
| Voltage : |
| Rated output voltage |
230V |
| Noise : |
| Noise Level (dB) |
80 decibel (maximum) |
| Speed : |
| Speed per minute |
3000 RPM |
| Carton Dimension (mm) |
| Length |
780 mm |
| Width |
535 mm |
| Height |
560 mm |
| Product Dimension (mm) |
| Length |
765 mm |
| Width |
525 mm |
| Height |
530 mm |
| Weight (kg) |
| Gross Weight |
85 kg |
| Net Weight |
80 kg |
