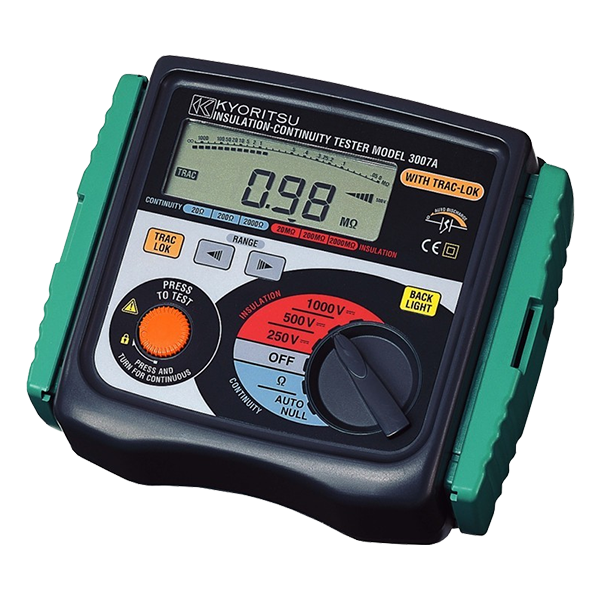

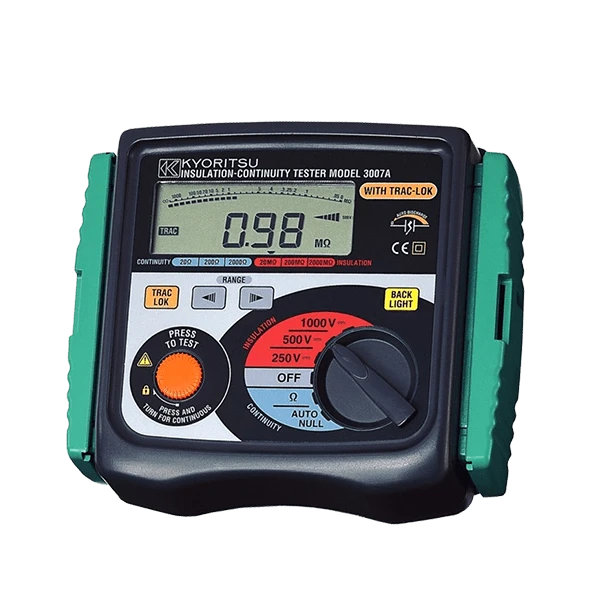

Kyoritsu 3007A Digital Insulation Tester
Supplier: TMI Biotech Corporation
Brand: Kyoritsu
Category: Insulation, Resistance And Battery
Sub Category: Insulation Resistance Tester
Out of Stock Ask for PriceKyoritsu 3007A Digital Insulation Tester the ideal tool for your reliable result. The best thing about this meter not only provide the best result but also the value is always spot on.
We provide the best Kyoritsu 3007A Digital Insulation Tester for our customers. Do you know the delivery is fully free? This is not the end! We also provide lifetime support for our all kind of our customers through Tools Bangladesh.
Features
Key Features: Kyoritsu 3007A Digital Insulation Tester
• Bargraph to display insulation resistance.
• Displays the value of external AC voltage along with flashing symbol.
• Auto null function to automatically subtract the test lead resistance before displaying the real continuity resistance value.
• Trac-Lok mode to conserve battery life on insulation and continuity tests.
• Live circuit warning beeper.
• Releasing the test button automatically discharges the charges stored in the circuit under test.
• Backlight function to view the test results in dimly lit areas.
• 200mA continuity measuring current to IEC 61557.
• Minimum 1mA current on insulation tests to IEC 61557.
Specifications
Specifications: Kyoritsu 3007A Digital Insulation Tester
Insulation Resistance
Test voltage | 250V/500V/1000V |
---|---|
Measuring ranges (Mid-scale value) |
20MΩ/200MΩ/2000MΩ |
Output voltage on open circuit | Rated test voltage+20%, -0% |
Nominal current | 1mA DC min. |
Output short circuit current | 1.5 mA DC approx. |
Accuracy | ±1.5%rdg±5dgt (20MΩ/200MΩ) ±10%rdg±3dgt (2000MΩ) |
Continuity Test
Measuring ranges (Mid-scale value) |
20Ω/200Ω/2000Ω |
---|---|
Output voltage on open circuit | 7 - 12V DC |
Measuring current | 200mA DC min. |
Accuracy | ±1.5%rdg±5dgt (20Ω) ±1.5%rdg±3dgt (200Ω/2000Ω) |
AC Voltage
AC voltage range | 0-600V AC |
---|---|
Accuracy | ±5%rdg±3dgt |
General
Safety Standard | IEC 61010-1 CAT III 300V Pollution Degree 2 IEC 61010-2-031 IEC 61557-1/2/4 |
---|---|
IP Rating | IEC 60529-IP54 |
EMC Standard | IEC 61326-1 |
Power source | R6 (AA) (1.5V) × 8 |
Dimensions | 167(L) × 185(W) × 89(D)mm |
Weight | 990g approx |
Included Accessories | 7122B (Test leads) Pouch for test leads 8923 (F500mA/600V fuse) × 2 R6 (AA) × 8 Shoulder Strap Instruction Manual |
Includes
Includes: Kyoritsu 3007A Digital Insulation Tester
- Kyoritsu 3007A Digital Insulation Tester
Accessories
Accessories: Kyoritsu 3007A Digital Insulation Tester
• Test leads
• 1,220mm
