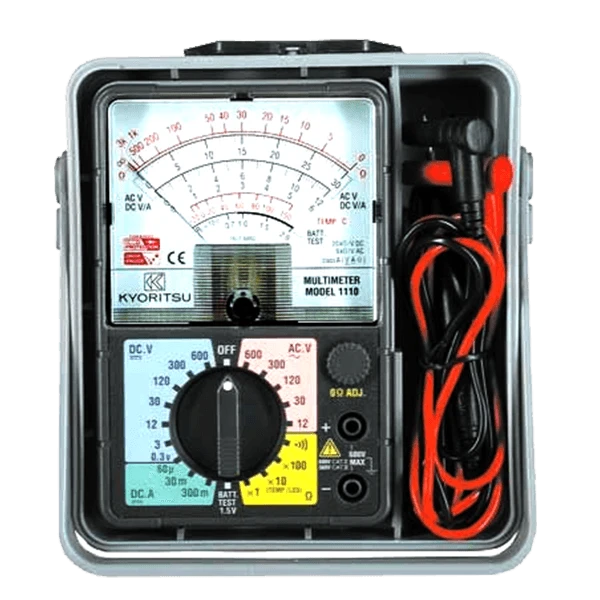

Kyoritsu 1110 Analogue Multimeters is a rugged and reliable tool. Capable of measuring lineage voltage going on to 600V AC, this multimeter features a continuity panic, battery check, LED check, and temperature measurement function.
Features
Key Features: Kyoritsu 1110 Analogue Multimeters
• High sensitivity DC20kΩ/V.
• 1m drop-proof heavy duty designed taut-band movement.
• Can measure line voltage up to AC 600V.
(Voltage to ground MAX AC300V)
(Protected by 600V ceramic fuse against accidental overload)
• Continuity buzzer, battery check, LED check function.
• Skeleton type robust and clear case
with carrying handle furnished as a standard accessory.
Specifications
Specifications: Kyoritsu 1110 Analogue Multimeters
DC V |
0.3V (16.7kΩ/V) ±3% of FS 3/12/30/120/300/600V (20kΩ/V) ±3% of FS |
AC V |
12V (9kΩ/V) ±4% of FS 30/120/300/600V (9kΩ/V) ±3% of FS |
DC A |
60µA/30/300mA ±3% of FS |
Ω |
3/30/300kΩ ±3% of scale length |
Continuity buzzer |
Buzzer sounds below 100Ω |
Battery Test |
1.5V (0.7 - 2V) ±3% of FS (10Ω load) |
Temperature |
Note: The MODEL1110 includes a temperature measurement scale, but it is not available for new customers due to the discontinue of the Temperature Probe 7060. |
LED |
10mA approx. at 0 Ω (at 3V of battery voltage) |
Applicable standards |
IEC 61010-1 CAT III 300V Pollution Degree 2 CAT II 600V Pollution Degree 2 IEC 61010-2-031 |
Power source |
R6 (AA) (1.5V) × 2 |
Dimensions |
140(L) × 94(W) × 39(D) mm |
Weight |
280g approx. |
Included Accessories |
7066A (Test leads) 8923 (F500mA/600V fuse) × 2 R6 (AA) × 2 9103 (Carrying case) Instruction Manual |
