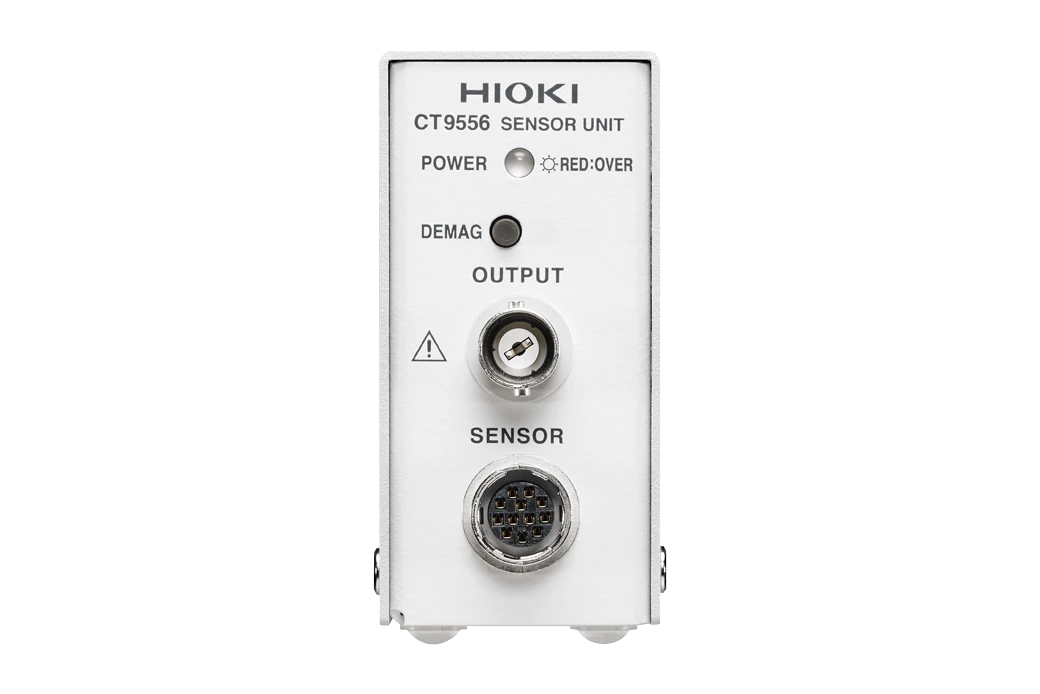

Hioki pass-through current sensors and clamp on current probes are best-in-class current sensing devices for use with power meters, Memory HiCorders and high performance oscilloscopes. The CT9556 is 1-channel sensor unit and power adapter for any of the CT686x series, 9709 and CT684x series current sensors and probes that provides waveform and RMS output. HIOKI SENSOR UNIT CT9556 Price in Bangladesh offers exceptional value for precision current measurements. Ideal for advanced electrical testing, this sensor ensures reliable performance in industrial environments. Compact design and seamless compatibility make it a top choice for professionals. Get the best HIOKI SENSOR UNIT CT9556 Price in Bangladesh today.
Key Features
- Power supply for high-precision current sensors with waveform output / RMS output functionality
Basic specifications
Accuracy guaranteed: 1 year
| Connectable current sensors |
Current sensors with a Hioki ME15W (male) output connector (CT686x-05, 9709-05, CT684x-05, etc.)
*The separately available Conversion Cable CT9900 is required in order to use a current sensor equipped with a PL23 (10-pin) terminal |
| Output Terminal |
BNC Terminal |
| Output voltage |
Waveform output: 2 V f.s.

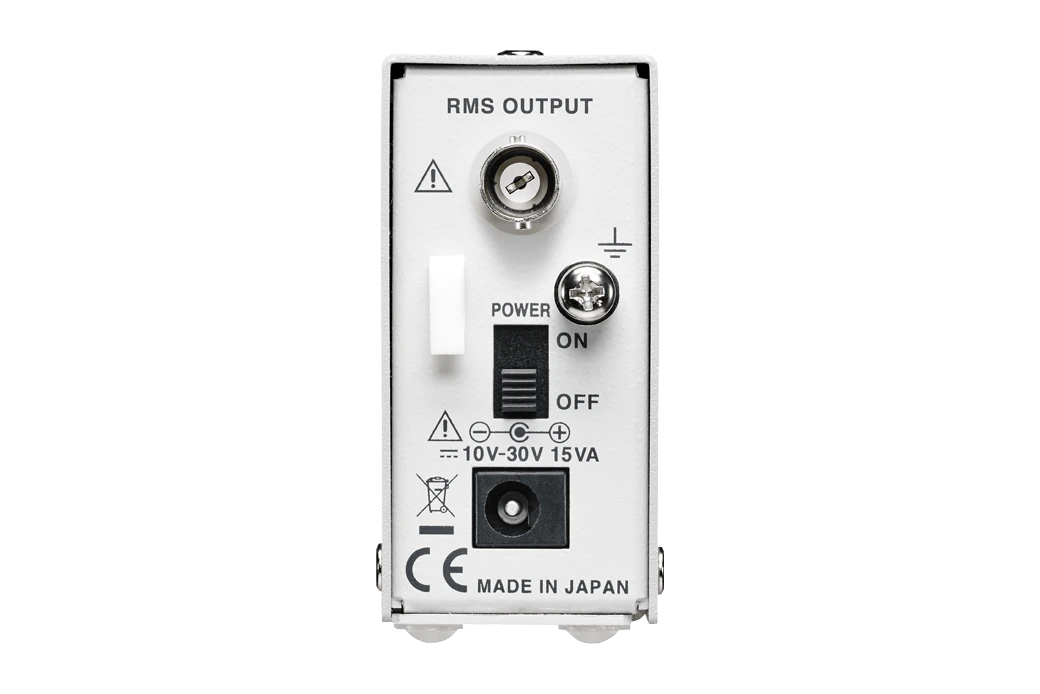

RMS output: 2 V DC f.s.
Waveform output and RMS output can be used simultaneously |
| Output resistance |
50 Ω |
| Operating temperature range |
-10°C to 50°C (14°F to 122°F) |
| Power supply |
AC Adapter Z1008 (100 to 240 V AC, 50/60 Hz, maximum rated power when used with sensors: 45 VA)
External power supply (10 to 30 V DC; maximum rated power: 15 VA) |
| Dimensions and mass |
33 mm (1.30 in)W × 67 mm (2.64 in)H × 132 mm (5.20 in)D (excluding protruding parts), 200 g (7.1 oz) |
| Included accessories |
AC Adapter Z1008 ×1, Power cord ×1, Instruction manual ×1 |
| Included accessories |
AC Adapter Z1008 ×1, Power cord ×1, Instruction manual ×1 |
| Included accessories |
AC Adapter Z1008 ×1, Power cord ×1, Instruction manual ×1 |
