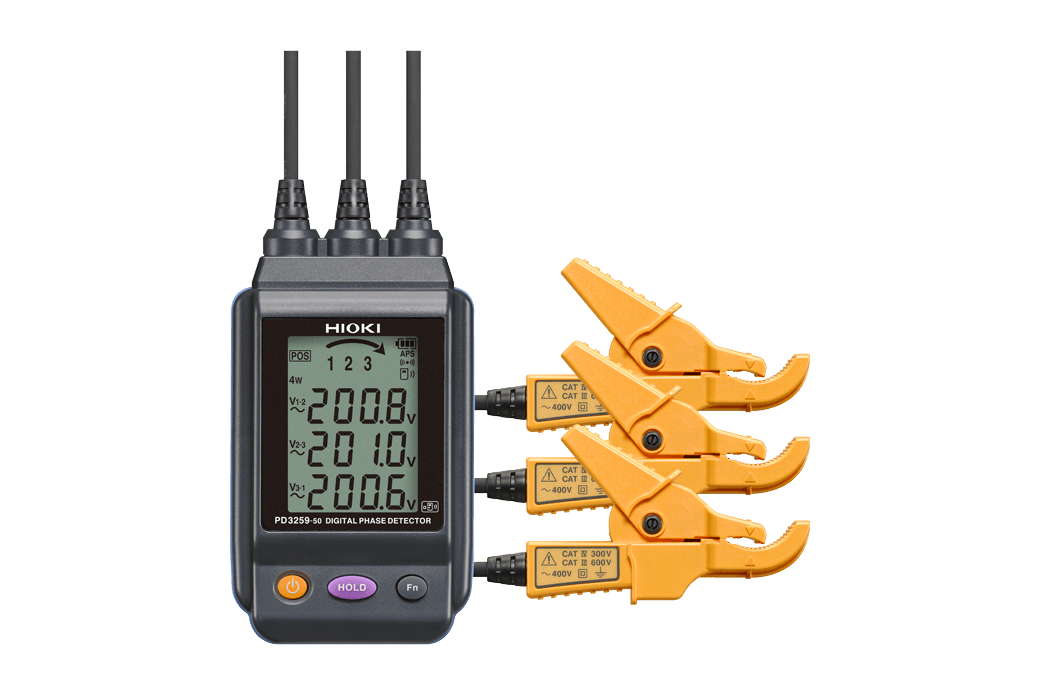

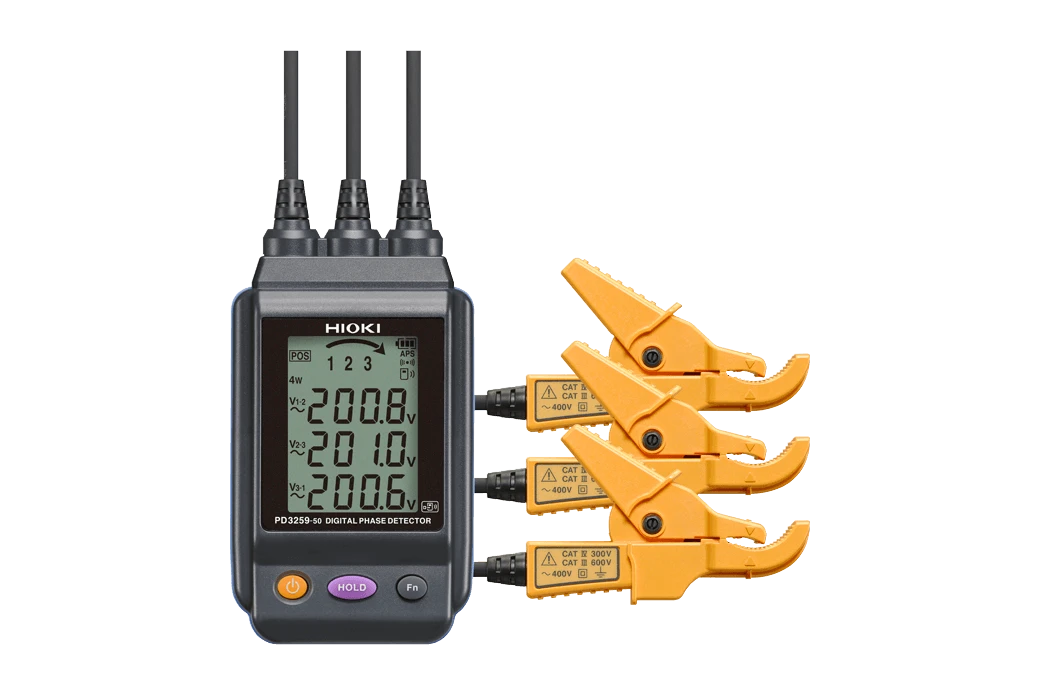

HIOKI PD3259-50 DIGITAL PHASE DETECTOR

Home › Hioki
Thumbnail
Shop : Tools Bangladesh
Product ID : 4539
Brand : Hioki
Availability : Out of Stock
Price BDT : 0.00 BDT
Reviews :
Share :
Ask Special Price Request Quote

  • Customer Support

    +8801965656380

  • Cash One Delivery

    Pay after getting the product on hand

  • Warranty

    1 Year warranty by manufacturer

  • Secured Payment Method

    Your cart is always secure to shop

  • Easy Return Policy

    24 hours return without physical defect.

Hioki’s non-contact voltage detection and measurement technology places efficiency and safety as priority considerations with the goal of protecting customers that need to conduct on-site electrical work as part of renovations and expansions of manufacturing plants and buildings.
The PD3259-50 Digital Phase Detector lets you to measure three-phase voltage and detect phase sequence simultaneously by just clipping onto covered cables, ensuring absolutely no contact with metal parts for maximum safety.

CAT IV 600 V

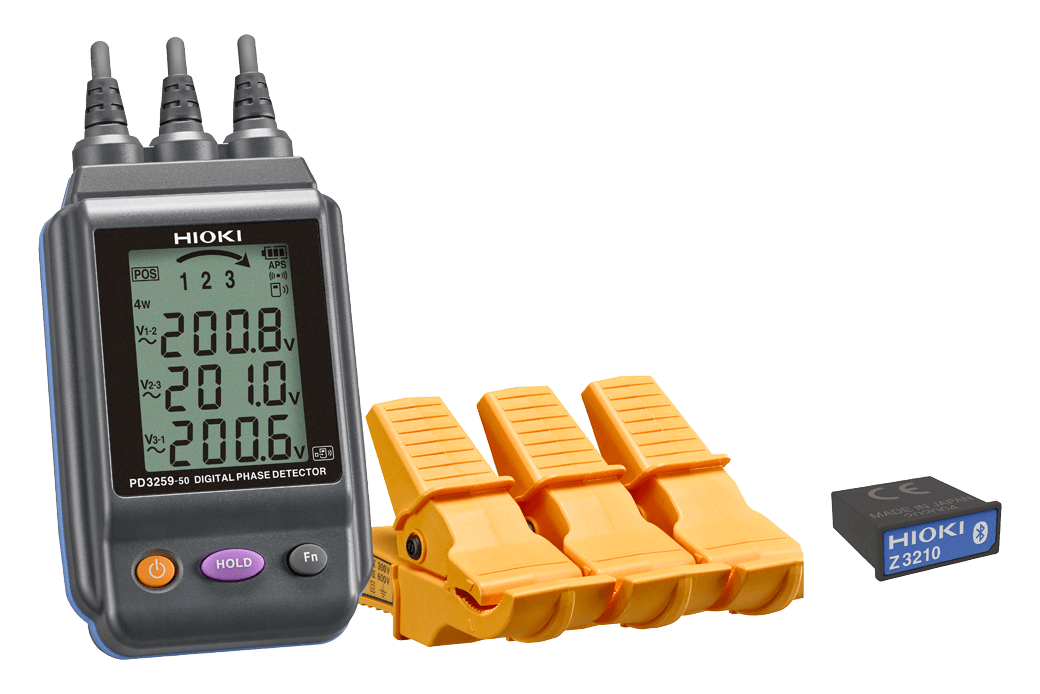

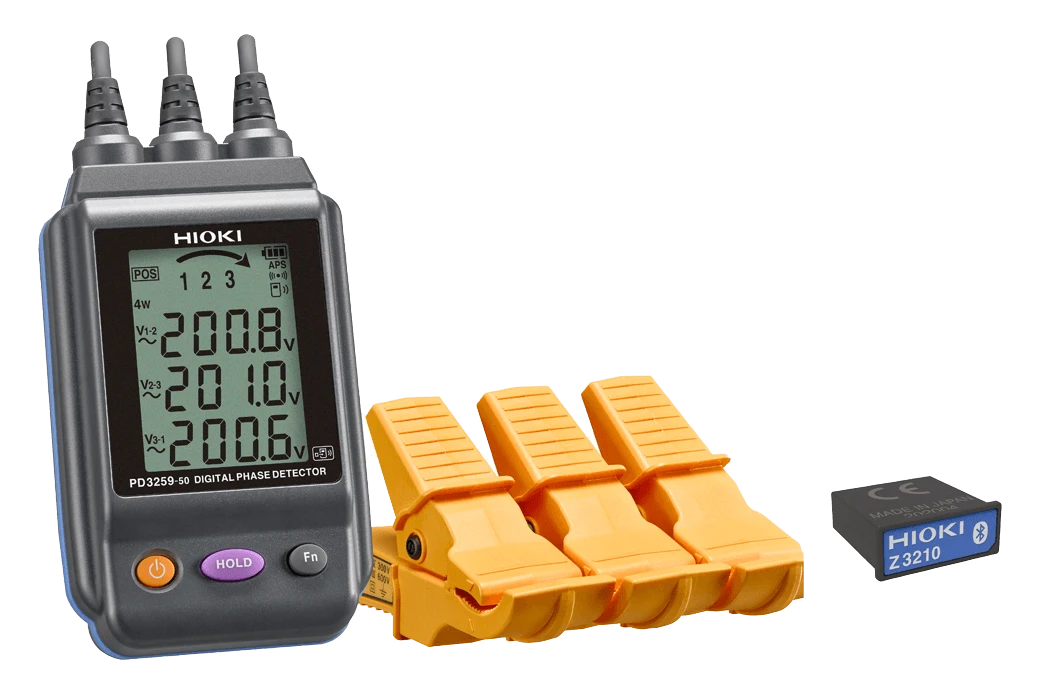

Easy! Just connect the optional Z3210 Wireless Adapter to your Hioki compatible instrument, to make it Bluetooth® ready.

Wirelessly connect Hioki-compliant instruments with a simple connection.
Transmit measured values to your tablet or smartphone.

Key Features

  • Easily transfer measurement data to your smartphone or tablet by using our free app GENNECT Cross or to an Excel® file. (Wireless Adapter Z3210 is necessary)
  • Available to check the unbalance rate and vector diagram in our free app GENNECT Cross
  • World’s first non-metallic contact voltage detection and testing
  • Simply clip onto wire insulation
  • Phase detection check and line-to-line voltage inspection at the same time
  • Easy and intuitive phase detection check with backlight and buzzer
  • Ideal for work certification photos, offering simultaneous display of phase sequence and 3-phase voltage

The HIOKI PD3259-50 Digital Phase Detector is a high-precision tool designed for safe and accurate phase detection in electrical systems. Widely used by engineers and technicians, this device ensures reliable performance in power distribution and maintenance tasks. In Bangladesh, professionals prefer the HIOKI PD3259-50 for its advanced technology, user-friendly design, and durable build quality. If you are searching for the HIOKI PD3259-50 Digital Phase Detector price in Bangladesh, you will find it available at competitive rates from trusted suppliers. Investing in this phase detector guarantees accuracy, safety, and long-term value for all your electrical measurement needs.

Wireless support Wireless communication capability for even greater convenience than PD3259 (legacy model)

Compatible with Wireless Adapter Z3210.
When the wireless adapter Z3210 is attached to the instrument, you can use Bluetooth® wireless communication.
By using the free app GENNECT Cross, you can check the measurement value, manage the data and create the report on smartphones and tablets easily.

Instantly create reports by a free app (GENNECT Cross)

GENNECT Cross, a free app designed specifically for use with Hioki measuring instruments, lets you check and manage measurement results and create reports.
The software provides a range of functionality that helps manage data in the field, including photographing measurement sites, placing measurement results on photographs, and saving hand written memos.

Can also check the unbalance rate and vector diagram from the measurement data of PD3259-50.

(Wireless Adapter Z3210 is necessary)

Easily transfer measurement data to an Excel® file: Excel® Direct Input Function

Excel® Direct Input function allows you to input measurement values directly and automatically into an Excel® file once the instrument's auto-hold function is activated. (Wireless Adapter Z3210 is necessary)

How to Use the Hioki Digital Phase Detector PD3259-50

In the past, four steps have been necessary in order to check a 3-phase power circuit: one set of measurements to check the phases with a phase detector, and three line-voltage measurements (one for each phase) made with a tester. The Digital Phase Detector PD3259-50 replaces this process with a single, no-metal-contact measurement step that can be made simply by affixing three clamp sensors. The instrument quickly displays the phase detection results and three phase voltage values.

Just clip the wire

The measurement can be taken simply by cliping the wire.

Safe measurement without contact with metal

There is no metal exposure on the sensor.
You can measure safely without touching metal.

Display on a large screen

Phase detection check and line-to-line voltage inspection at the same time.

Light and sound notification

A red light and a continuous buzzer sounds to indicate the Negative phase.

You can switch screens and check the frequency.

Place the instrument to the wall

The Magnetic Strap Z5020 (optional) can be used to hang and fix the instrument to the wall.

Color clips are included to help identify the code

Basic specifications

Accuracy guaranteed: 1 year
Note: Multi-core cables, thick cables, and dirty cables may not be measured accurately.

Detection functions Positive phase, negative phase (Three-phase 3-wire, Three-phase 4-wire),
open phase, prediction of ground phase (Three-phase 3-wire)
Measurement parameters Three-phase AC voltage (line-to-line voltage and voltage to ground), Frequency
• Voltage measurement accuracy: ±2.0% rdg. ±8 dgt.,
• Frequency measurement accuracy: ±0.5% rdg. ±1 dgt.,
• Response time: 3 s or less, Display update rate: 500 ms
Measurement targets Covered cables, Metal portions
*Use on shielded cables not supported
Three-phase 90.0 to 520.0 V AC (45 to 66 Hz)
Diameter of measurable conductors Finished outer diameter: 6 to 30 mm (0.24 to 1.18 in)
Maximum rated voltage to earth 600 V AC (CAT IV)
Environmental protection Main unit (excluding voltage sensors): IP54 (EN60529) dustproof and waterproof
Other functions Hold function, Backlight, Buzzer, Auto power-off, Low battery warning, Drop proof (on concrete, 1 m/ 1 time)
Power supply AA alkaline batteries (LR6) ×4, Maximum rated power: 3 VA, Continuous operating time: 5 hours (Backlight off, standby state, Without Z3210)
Dimensions and mass 84 mm (3.31 in)W × 146 mm (5.75 in)H × 46 mm (1.81 in)D, 590 g (20.8 oz, including batteries), cord length: 0.5 m (1.64 ft)
Included accessories AA alkaline batteries (LR6) ×4, Instruction manual ×1, Carrying case C0203 ×1, Color clip (White ×2, red ×2, blue ×2, yellow ×2), Spiral tubes (black ×1)
Included accessories AA alkaline batteries (LR6) ×4, Instruction manual ×1, Carrying case C0203 ×1, Color clip (White ×2, red ×2, blue ×2, yellow ×2), Spiral tubes (black ×1)
Included accessories AA alkaline batteries (LR6) ×4, Instruction manual ×1, Carrying case C0203 ×1, Color clip (White ×2, red ×2, blue ×2, yellow ×2), Spiral tubes (black ×1)

Hioki’s non-contact voltage detection and measurement technology places efficiency and safety as priority considerations with the goal of protecting customers that need to conduct on-site electrical work as part of renovations and expansions of manufacturing plants and buildings.
The PD3259-50 Digital Phase Detector lets you to measure three-phase voltage and detect phase sequence simultaneously by just clipping onto covered cables, ensuring absolutely no contact with metal parts for maximum safety.

CAT IV 600 V

Easy! Just connect the optional Z3210 Wireless Adapter to your Hioki compatible instrument, to make it Bluetooth® ready.

Wirelessly connect Hioki-compliant instruments with a simple connection.
Transmit measured values to your tablet or smartphone.

Key Features

  • Easily transfer measurement data to your smartphone or tablet by using our free app GENNECT Cross or to an Excel® file. (Wireless Adapter Z3210 is necessary)
  • Available to check the unbalance rate and vector diagram in our free app GENNECT Cross
  • World’s first non-metallic contact voltage detection and testing
  • Simply clip onto wire insulation
  • Phase detection check and line-to-line voltage inspection at the same time
  • Easy and intuitive phase detection check with backlight and buzzer
  • Ideal for work certification photos, offering simultaneous display of phase sequence and 3-phase voltage

The HIOKI PD3259-50 Digital Phase Detector is a high-precision tool designed for safe and accurate phase detection in electrical systems. Widely used by engineers and technicians, this device ensures reliable performance in power distribution and maintenance tasks. In Bangladesh, professionals prefer the HIOKI PD3259-50 for its advanced technology, user-friendly design, and durable build quality. If you are searching for the HIOKI PD3259-50 Digital Phase Detector price in Bangladesh, you will find it available at competitive rates from trusted suppliers. Investing in this phase detector guarantees accuracy, safety, and long-term value for all your electrical measurement needs.

Wireless support Wireless communication capability for even greater convenience than PD3259 (legacy model)

Compatible with Wireless Adapter Z3210.
When the wireless adapter Z3210 is attached to the instrument, you can use Bluetooth® wireless communication.
By using the free app GENNECT Cross, you can check the measurement value, manage the data and create the report on smartphones and tablets easily.

Instantly create reports by a free app (GENNECT Cross)

GENNECT Cross, a free app designed specifically for use with Hioki measuring instruments, lets you check and manage measurement results and create reports.
The software provides a range of functionality that helps manage data in the field, including photographing measurement sites, placing measurement results on photographs, and saving hand written memos.

Can also check the unbalance rate and vector diagram from the measurement data of PD3259-50.

(Wireless Adapter Z3210 is necessary)

Easily transfer measurement data to an Excel® file: Excel® Direct Input Function

Excel® Direct Input function allows you to input measurement values directly and automatically into an Excel® file once the instrument's auto-hold function is activated. (Wireless Adapter Z3210 is necessary)

How to Use the Hioki Digital Phase Detector PD3259-50

In the past, four steps have been necessary in order to check a 3-phase power circuit: one set of measurements to check the phases with a phase detector, and three line-voltage measurements (one for each phase) made with a tester. The Digital Phase Detector PD3259-50 replaces this process with a single, no-metal-contact measurement step that can be made simply by affixing three clamp sensors. The instrument quickly displays the phase detection results and three phase voltage values.

Just clip the wire

The measurement can be taken simply by cliping the wire.

Safe measurement without contact with metal

There is no metal exposure on the sensor.
You can measure safely without touching metal.

Display on a large screen

Phase detection check and line-to-line voltage inspection at the same time.

Light and sound notification

A red light and a continuous buzzer sounds to indicate the Negative phase.

You can switch screens and check the frequency.

Place the instrument to the wall

The Magnetic Strap Z5020 (optional) can be used to hang and fix the instrument to the wall.

Color clips are included to help identify the code

Basic specifications

Accuracy guaranteed: 1 year
Note: Multi-core cables, thick cables, and dirty cables may not be measured accurately.

Detection functions Positive phase, negative phase (Three-phase 3-wire, Three-phase 4-wire),
open phase, prediction of ground phase (Three-phase 3-wire)
Measurement parameters Three-phase AC voltage (line-to-line voltage and voltage to ground), Frequency
• Voltage measurement accuracy: ±2.0% rdg. ±8 dgt.,
• Frequency measurement accuracy: ±0.5% rdg. ±1 dgt.,
• Response time: 3 s or less, Display update rate: 500 ms
Measurement targets Covered cables, Metal portions
*Use on shielded cables not supported
Three-phase 90.0 to 520.0 V AC (45 to 66 Hz)
Diameter of measurable conductors Finished outer diameter: 6 to 30 mm (0.24 to 1.18 in)
Maximum rated voltage to earth 600 V AC (CAT IV)
Environmental protection Main unit (excluding voltage sensors): IP54 (EN60529) dustproof and waterproof
Other functions Hold function, Backlight, Buzzer, Auto power-off, Low battery warning, Drop proof (on concrete, 1 m/ 1 time)
Power supply AA alkaline batteries (LR6) ×4, Maximum rated power: 3 VA, Continuous operating time: 5 hours (Backlight off, standby state, Without Z3210)
Dimensions and mass 84 mm (3.31 in)W × 146 mm (5.75 in)H × 46 mm (1.81 in)D, 590 g (20.8 oz, including batteries), cord length: 0.5 m (1.64 ft)
Included accessories AA alkaline batteries (LR6) ×4, Instruction manual ×1, Carrying case C0203 ×1, Color clip (White ×2, red ×2, blue ×2, yellow ×2), Spiral tubes (black ×1)

Included accessories AA alkaline batteries (LR6) ×4, Instruction manual ×1, Carrying case C0203 ×1, Color clip (White ×2, red ×2, blue ×2, yellow ×2), Spiral tubes (black ×1)

Included accessories AA alkaline batteries (LR6) ×4, Instruction manual ×1, Carrying case C0203 ×1, Color clip (White ×2, red ×2, blue ×2, yellow ×2), Spiral tubes (black ×1)
