Sturdy High-Speed DAQ System

The Memory HiCorder MR8848 is a recording device used in fields such as power plants, railways, and industrial plants to measure transient phenomena.
The robust housing design has passed rigorous tests such as drop tests and vibration tests.
With high-speed sampling that captures the voltage and current waveforms of inverters, large-capacity memory that stores entire events, and multi-channel measurements that allow for the verification of correlations between multiple signals, it ensures that you won't miss critical waveforms. Discover the HIOKI MEMORY HiCORDER MR8848 at the best price in Bangladesh. Ideal for high-speed, multi-channel waveform recording.

Key Features

  • Work anywhere with a durable, shock-resistant, portable design
  • Safely measure with isolated channels
  • Handle complex tasks using 32 analog & 64 logic channels
  • Record for extended periods with high-capacity memory
  • Make pass/fail judgments with waveform & numerical analysis
  • Check printed waveforms on-site using a built-in printer (optional)

Basic specifications

Accuracy guaranteed: 1 year

Measurement functions Memory function (waveform recording), Recorder function (peak/trough recording), X-Y Recorder function, FFT function
Max. number of channels 16 ch analog + 16 ch logic
32 ch analog + 16 ch logic (when U8975 or U8978 × 8 is attached)
10 ch analog + 64 ch logic (when main unit logic + Logic Unit 8973 × 3 is attached)
20 ch analog + 64 ch logic (when U8975 or U8978 × 5 + main unit logic + Logic Unit 8973 × 3 is attached)

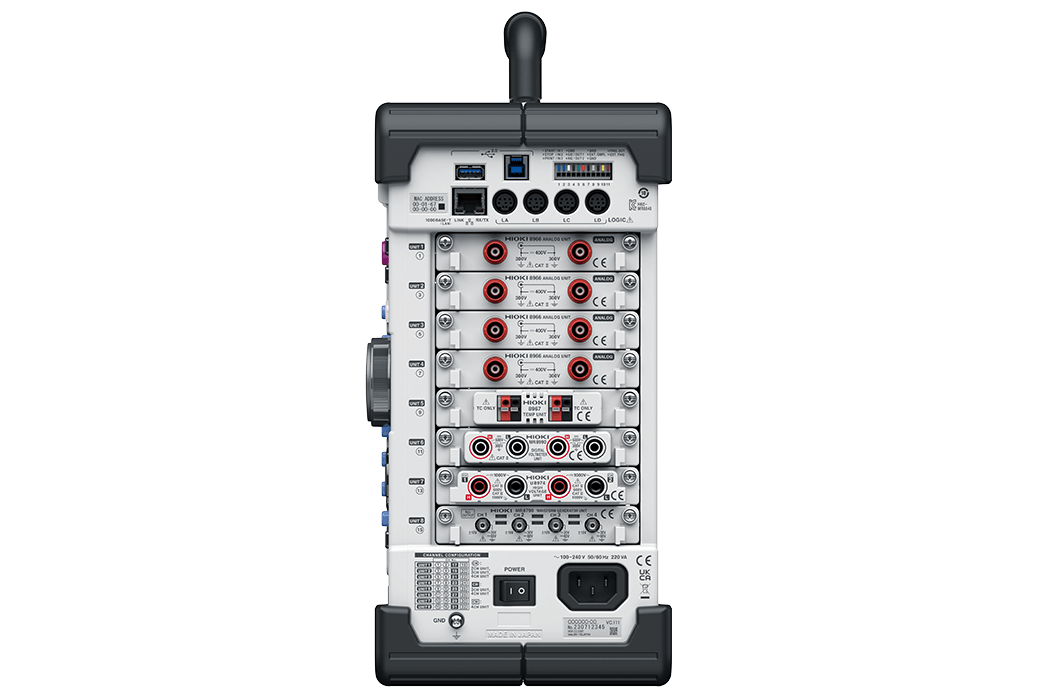

Module slots Up to 8 modules

Restrictions:
Current Unit 8971: up to 4 modules can be installed.
Logic Unit 8973: up to 3 modules can be installed.
3CH Current Unit U8977: up to 3 modules can be installed.
Number of main unit logic channels 16 (The GND of the logic probe input connector is common with the main unit GND)
When the Digital Voltmeter Unit MR8990 is installed in Unit 1 and 2, the main unit logic cannot be used.
Following restrictions when using the main unit logic (when logic measurement is turned ON):
- The measurement resolution of the modules installed in Unit 1 and 2 will be limited to 12 bits.
- Frequency modules installed in Unit 1 and 2 cannot be used.
Max. sampling speed 20 MS/s for simultaneous use of all channels (when using the Analog Unit 8966)
10 MS/s for external sampling
Memory capacity Total 512 megawords (no memory expansion)
(16 megawords/ch using 32 analog channels, 256 megawords/ch using 2 analog channels)
Power supply 100 V to 240 V AC, 50/60 Hz, 10 V to 28 V DC (when using the DC Power Unit 9784)
Max. rated power 130 VA (220 VA when using the Printer Unit U8351)
External interfaces LAN, USB, external control terminals
External storage SD card slot, built-in drive (1 TB, factory-installed option), USB flash drive

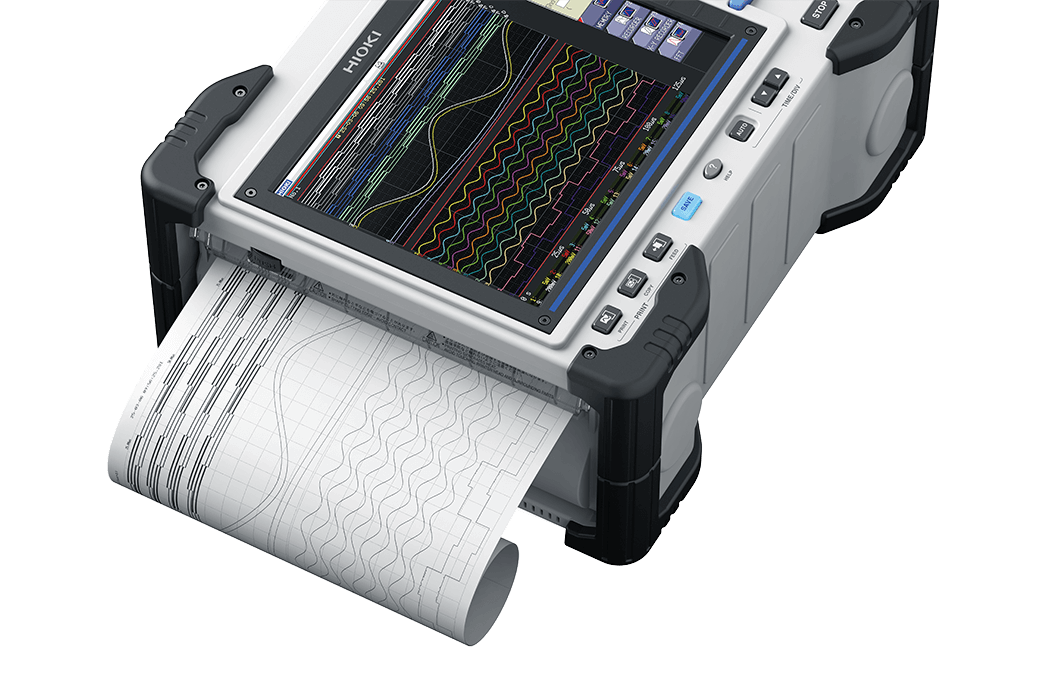

Printer When the factory-installed option Printer Unit U8351 is installed.
Thermal recording method, use the Recording Paper 9231, recording speed 50 mm/s
Other functions Trigger, numerical calculation, waveform calculation, storage partitioning, cursor measurement, monitor, position display (VIEW), waveform evaluation, waveform generation
Dimensions and weight Approx. 351W × 261H × 140D mm (13.8W × 10.3H × 5.5D in.) (excluding protrusions)
Approx. 365W × 307H × 160D mm (14.4W × 12.1H × 6.3D in.) (including protrusions)
Approx. 6.9 kg (15.2 lbs.) (main unit only)
Approx. 7.4 kg (16.3 lbs.) (when the Printer Unit U8351 is installed)
Included accessories Startup Guide × 1, Operating Precautions × 1, input cord label × 1, power cord × 1, Recording Paper 9231 (when Printer Unit U8351 is installed) × 1, roll paper attachment (when Printer Unit U8351 is installed) × 1
