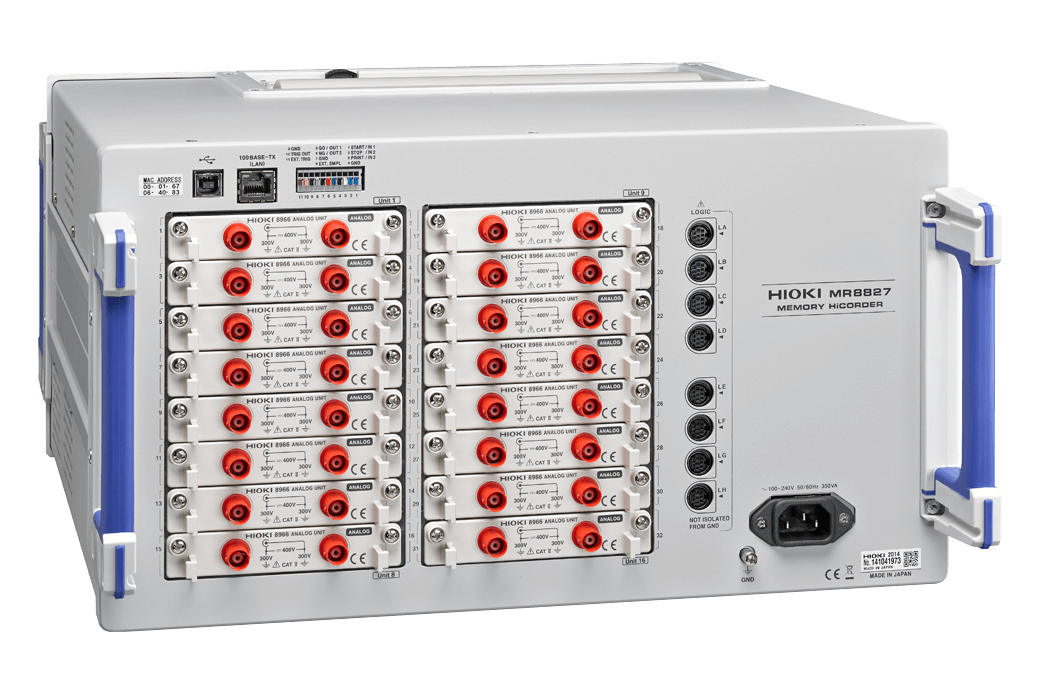

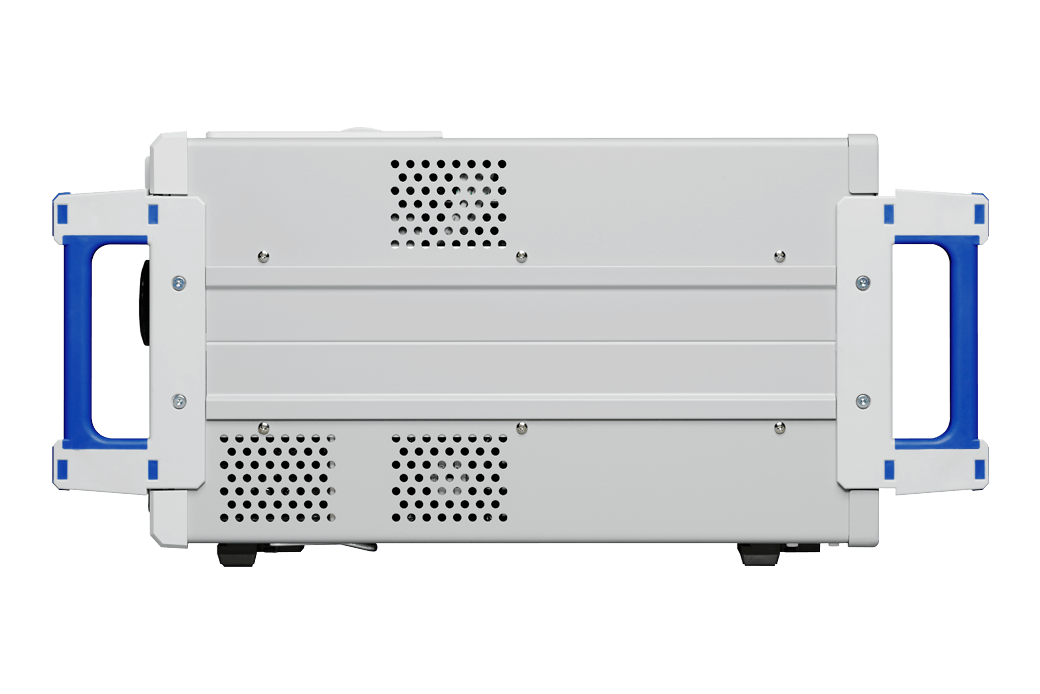

HIOKI MEMORY HiCORDER MR8827

Home › Hioki
Thumbnail
Shop : Tools Bangladesh
Product ID : 4107
Brand : Hioki
Availability : Out of Stock
Price BDT : Ask for Price
Reviews :
Share :
Request Quote

  • Customer Support

    +8801965656380

  • Cash One Delivery

    Pay after getting the product on hand

  • Warranty

    1 Year warranty by manufacturer

  • Secured Payment Method

    Your cart is always secure to shop

  • Easy Return Policy

    24 hours return without physical defect.

Hioki Memory HiCorders are high-speed waveform monitoring and recording devices that can simultaneously measure multiple physical phenomena such as voltage, current, temperature, vibration, weight, acceleration, and rotation due to complete isolation between channels and from each channel to the ground. More than just a digital oscilloscope, the MR8827 data acquisition (DAQ) recorder accommodates plug-and-play input modules to meet applications such as trial runs after the scheduled maintenance of railway cars to verify voltage command signals, motor current, car speed, and brake pressure. Discover the HIOKI MEMORY HiCORDER MR8827 Price in Bangladesh high-speed, multi-channel data recorder for advanced analysis.

Key Features

  • Generate and record waveforms with a single unit
  • Output previously recorded problematic waveforms and apply to devices under test to simulate potential issues
  • 32 analog + 32 logic channels to 28 analog + 64 logic channels
  • High-speed sampling up to 20MS/s with fully isolated inputs
  • Safe measurement with all isolated analog inputs
  • Large capacity memory of total 512M-words
  • Measure various system signals from high voltage to ultra low voltage simultaneously

Basic specifications

Accuracy guaranteed: 1 year

Max. Number of channels 32 ch analog + 32 ch logic, or 28 ch analog + 64 ch logic (when use with built-in logic input + plug-in logic unit 8973 × 2)
Number of slots 16 slots (Max. 16)
Number of logic channels 32 ch logic (logic probe terminal GND share a common GND with chassis) Built-in logic input not available when using DVM Unit MR8990 on slots 1, 2, 9, or 10.

[Limitation on using built-in logic input] (with logic measurement ON)
• Measurement resolution on slots 1, 2, 9, and slot 10 is limited up to 12 bits
• Cannot use Frequency Unit 8970 on slots 1, 2, 9, or 10
Measurement ranges (20 div full-scale) [Analog Unit 8966]: 5 mV/div to 20 V/div, 12 ranges, resolution : 1/100 of range (using 12-bit A/D)
[High Resolution Unit 8968]: 5 mV/div to 20 V/div, 12 ranges, resolution : 1/1600 of range (using 16-bit A/D)
Max. allowable input 400 V DC (using the 8966/8968)
Frequency characteristics DC to 5 MHz (-3 dB, using the 8966), DC to 100 kHz (-3 dB, using the 8968)
Time axis (Memory function) 5 µs to 5 min/div, 26 ranges, at 100 points/div resolution
Measurement functions Memory (high-speed recording), Recorder (real-time recording), X-Y recorder, FFT
Other functions Numerical calculation, Waveform processing, Waveform judgment (at Memory, or FFT function)
Memory capacity 128M-words/ch (using 4 Analog channels) to 16M-words/ch (using 32 Analog channels), Total capacity 512MW memory
Data storage media USB memory stick, CF card, Built-in SSD unit (option, 128GB) *Approx. 125 sec. when saving 100 MB of data
*Data of 100 MB in size can record 16,000 div waveforms across 32 channels.
Printing [Built-in A4-size printer option]: 216 mm (8.50 in) × 30 m (98.43 ft), thermal paper roll, Recording speed : Max. 50 mm (1.97 in)/s
Display 10.4 inch TFT color LCD (SVGA, 800 × 600 dots)
External interfaces LAN: 100BASE-TX, USB 2.0 series A receptacle 2 port (for USB memory, mouse)
USB 2.0 series B receptacle (for communication with PC, mass storage)
Power supply 100 V to 240 V AC, 50/60 Hz (220 VA max., when using printer: 350 VA max.)
Dimensions and mass 401 mm (15.79 in)W × 233 mm (9.17 in)H × 388 mm (15.28 in)D (including protruding parts except handle), 12.6 kg (444.4 oz) (main unit only)
Included accessories Instruction manual ×1, Power cord ×1, Application disk (CD-R) ×1, Input cord label ×1, Printer paper ×1 (when ordering printer unit), Roll paper attachment ×2 (when ordering printer unit)

LabVIEW and MATLAB support

Compatible models LabVIEW MATLAB script
MR8827 Available Available

N/A

N/A

Hioki Memory HiCorders are high-speed waveform monitoring and recording devices that can simultaneously measure multiple physical phenomena such as voltage, current, temperature, vibration, weight, acceleration, and rotation due to complete isolation between channels and from each channel to the ground. More than just a digital oscilloscope, the MR8827 data acquisition (DAQ) recorder accommodates plug-and-play input modules to meet applications such as trial runs after the scheduled maintenance of railway cars to verify voltage command signals, motor current, car speed, and brake pressure. Discover the HIOKI MEMORY HiCORDER MR8827 Price in Bangladesh high-speed, multi-channel data recorder for advanced analysis.

Key Features

  • Generate and record waveforms with a single unit
  • Output previously recorded problematic waveforms and apply to devices under test to simulate potential issues
  • 32 analog + 32 logic channels to 28 analog + 64 logic channels
  • High-speed sampling up to 20MS/s with fully isolated inputs
  • Safe measurement with all isolated analog inputs
  • Large capacity memory of total 512M-words
  • Measure various system signals from high voltage to ultra low voltage simultaneously

Basic specifications

Accuracy guaranteed: 1 year

Max. Number of channels 32 ch analog + 32 ch logic, or 28 ch analog + 64 ch logic (when use with built-in logic input + plug-in logic unit 8973 × 2)
Number of slots 16 slots (Max. 16)
Number of logic channels 32 ch logic (logic probe terminal GND share a common GND with chassis) Built-in logic input not available when using DVM Unit MR8990 on slots 1, 2, 9, or 10.

[Limitation on using built-in logic input] (with logic measurement ON)
• Measurement resolution on slots 1, 2, 9, and slot 10 is limited up to 12 bits
• Cannot use Frequency Unit 8970 on slots 1, 2, 9, or 10
Measurement ranges (20 div full-scale) [Analog Unit 8966]: 5 mV/div to 20 V/div, 12 ranges, resolution : 1/100 of range (using 12-bit A/D)
[High Resolution Unit 8968]: 5 mV/div to 20 V/div, 12 ranges, resolution : 1/1600 of range (using 16-bit A/D)
Max. allowable input 400 V DC (using the 8966/8968)
Frequency characteristics DC to 5 MHz (-3 dB, using the 8966), DC to 100 kHz (-3 dB, using the 8968)
Time axis (Memory function) 5 µs to 5 min/div, 26 ranges, at 100 points/div resolution
Measurement functions Memory (high-speed recording), Recorder (real-time recording), X-Y recorder, FFT
Other functions Numerical calculation, Waveform processing, Waveform judgment (at Memory, or FFT function)
Memory capacity 128M-words/ch (using 4 Analog channels) to 16M-words/ch (using 32 Analog channels), Total capacity 512MW memory
Data storage media USB memory stick, CF card, Built-in SSD unit (option, 128GB) *Approx. 125 sec. when saving 100 MB of data
*Data of 100 MB in size can record 16,000 div waveforms across 32 channels.
Printing [Built-in A4-size printer option]: 216 mm (8.50 in) × 30 m (98.43 ft), thermal paper roll, Recording speed : Max. 50 mm (1.97 in)/s
Display 10.4 inch TFT color LCD (SVGA, 800 × 600 dots)
External interfaces LAN: 100BASE-TX, USB 2.0 series A receptacle 2 port (for USB memory, mouse)
USB 2.0 series B receptacle (for communication with PC, mass storage)
Power supply 100 V to 240 V AC, 50/60 Hz (220 VA max., when using printer: 350 VA max.)
Dimensions and mass 401 mm (15.79 in)W × 233 mm (9.17 in)H × 388 mm (15.28 in)D (including protruding parts except handle), 12.6 kg (444.4 oz) (main unit only)
Included accessories Instruction manual ×1, Power cord ×1, Application disk (CD-R) ×1, Input cord label ×1, Printer paper ×1 (when ordering printer unit), Roll paper attachment ×2 (when ordering printer unit)

LabVIEW and MATLAB support

Compatible models LabVIEW MATLAB script
MR8827 Available Available

N/A

N/A
