HIOKI IMPEDANCE ANALYZER IM7581

Home › Hioki
Thumbnail
Shop : Tools Bangladesh
Product ID : 4180
Brand : Hioki
Availability : Out of Stock
Price BDT : Ask for Price
Reviews :
Share :
Request Quote

  • Customer Support

    +8801965656380

  • Cash One Delivery

    Pay after getting the product on hand

  • Warranty

    1 Year warranty by manufacturer

  • Secured Payment Method

    Your cart is always secure to shop

  • Easy Return Policy

    24 hours return without physical defect.

Hioki LCR Meters and Impedance Analyzers range from 1 mHz to 3 GHz devices to suit a wide range of applications in the testing of electronic components. The IM7581 offers a top measurement time of 0.5 ms over a 100 kHz to 300 MHz frequency range, making it ideal for high volume production of ferrite chip beads and chip inductors.

The HIOKI IMPEDANCE ANALYZER IM7581 offers precise measurement for advanced testing needs. If you’re searching for reliable performance and accuracy, check out the HIOKI IMPEDANCE ANALYZER IM7581 Price in Bangladesh, providing excellent value for professionals in electronics and engineering fields.

Key Features

  • 100 kHz to 300 MHz testing source frequency
  • Fastest test speed of 0.5 msec (Analog measurement time)
  • ±0.72% rdg. basic accuracy
  • RF I-V method
  • Half-rack size body and palm-sized test head
  • Comprehensive contact check (via DCR testing, Hi-Z reject or waveform judgment)
  • Make frequency sweeps, level sweeps and time interval measurements in Analyzer Mode

Basic specifications

Accuracy guaranteed: 1 year

Measurement modes LCR mode, Analyzer mode (Sweeps with measurement frequency and measurement level), Continuous measurement mode
Measurement parameters Z, Y, θ, Rs (ESR), Rp, X, G, B, Cs, Cp, Ls, Lp, D (tanδ), Q
Measurable range 100 mΩ to 5 kΩ
Display range Z: 0.00 m to 9.99999 GΩ / Rs, Rp, X: ± (0.00 m to 9.99999 GΩ)
Ls, Lp: ± (0.00000 n to 9.99999 GH) / Q: ± (0.00 to 9999.99)
θ: ± (0.000° to 180.000°), Cs, Cp: ± (0.00000 p to 9.99999 GF)
D: ± (0.00000 to 9.99999), Y: (0.000 n to 9.99999 GS)
G, B: ± (0.000 n to 9.99999 GS), Δ%: ± (0.000 % to 999.999 %)
Basic accuracy Z: ±0.72 % rdg. θ: ±0.41°
Measurement frequency 100.00 kHz to 300.00 MHz (5 digits resolution)
Measurement signal level Power: -40.0 dBm to +7.0 dBm
Voltage: 4 mV to 1001 mVrms
Current: 0.09 mA to 20.02 mArms
User-configured power, voltage, and current
Output impedance 50 Ω
Display 8.4-inch color TFT with touch screen
Measurement speeds *1 FAST: 0.5 ms / MED: 0.9 ms / SLOW: 2.1 ms / SLOW2: 3.7 ms
*1 Analog measurement time
Functions Contact check, Comparator, BIN measurement (classification), Panel loading/saving, Memory function, Equivalent circuit analysis, Correlation compensation
Interfaces Handler, USB, LAN, GP-IB (optional), RS-232C (optional)
Power supply 100 to 240 V AC, 50/60 Hz, 70 VA max.

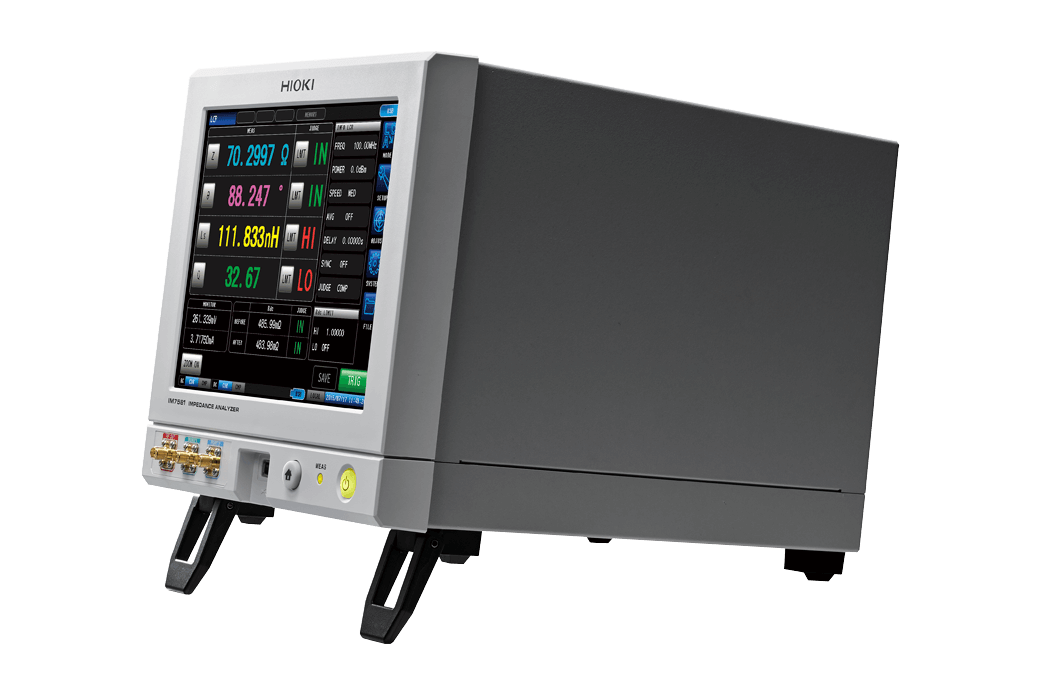

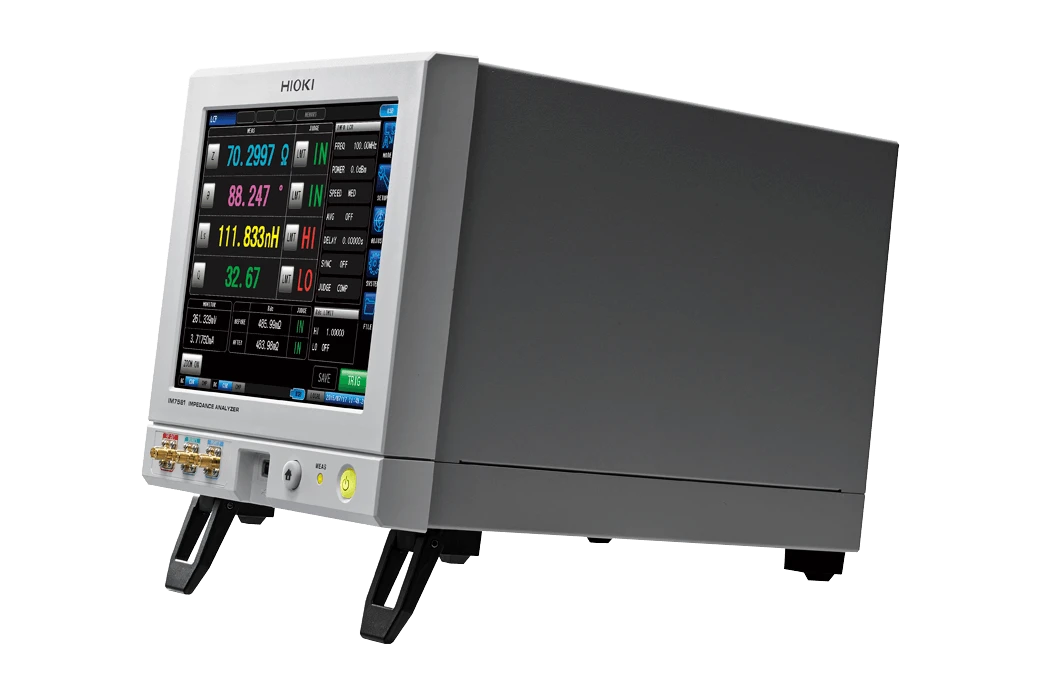

Dimensions and mass Main unit: 215 mm (8.46 in) W × 200 mm (7.87 in) H × 268 mm (10.55 in) D, 6.5 kg (229.3 oz)

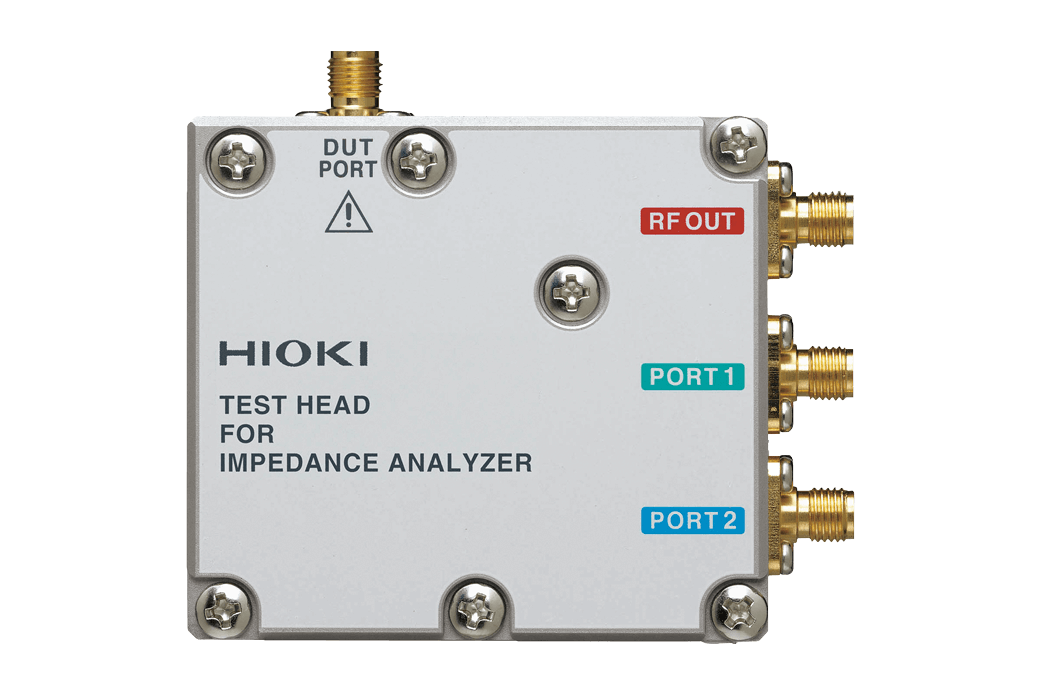

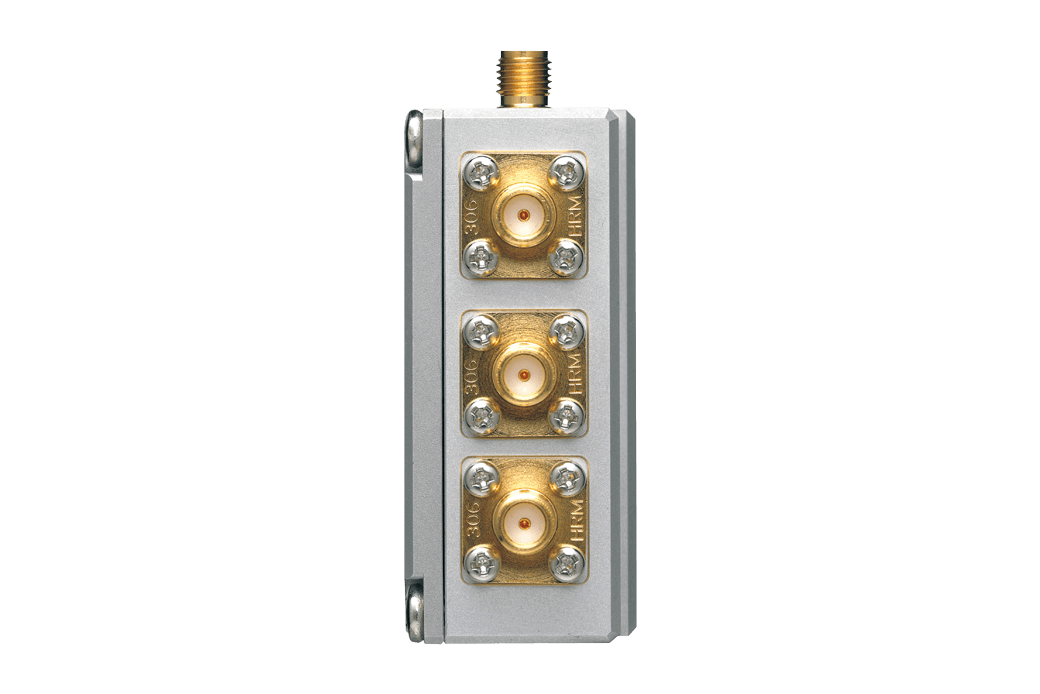

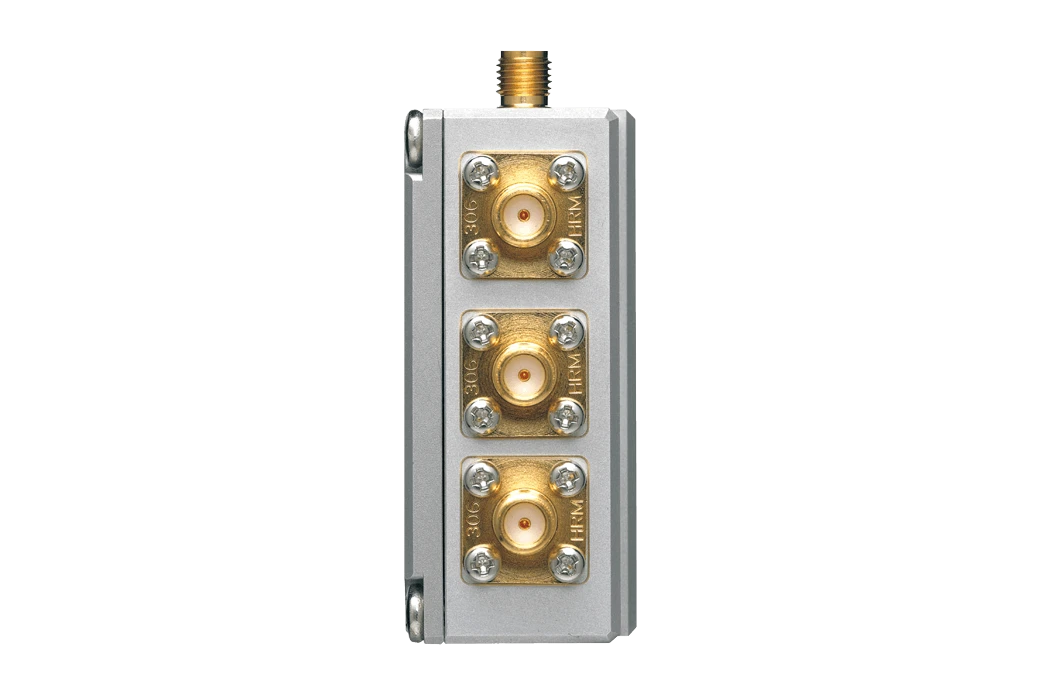

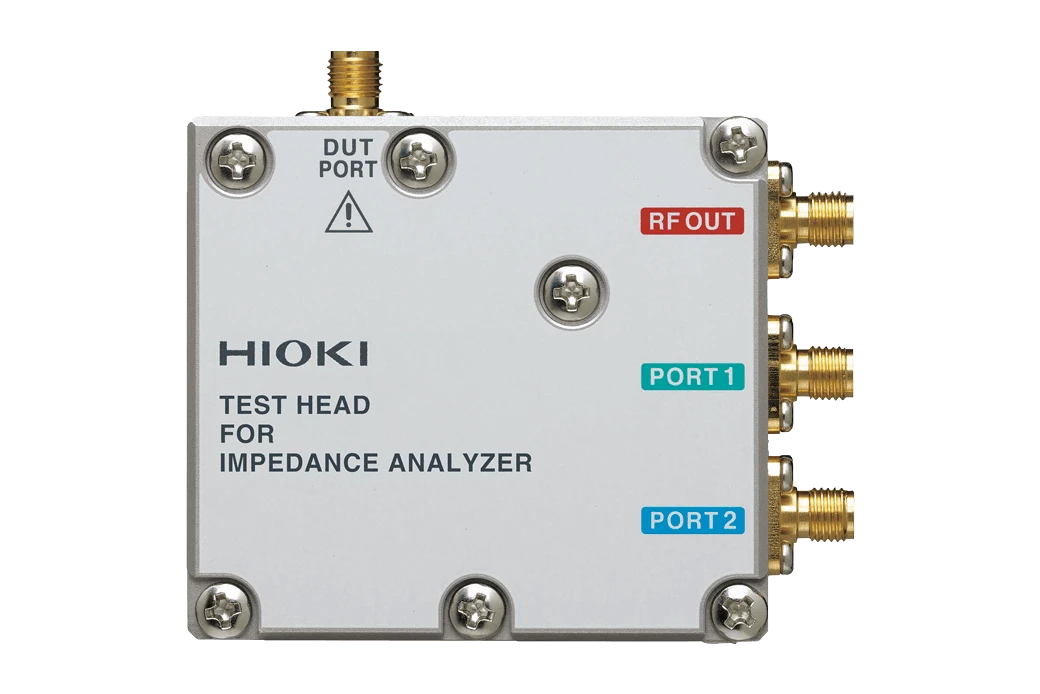

Test head: 61 mm (2.40 in) W × 55 mm (2.17 in) H × 24 mm (0.94 in) D, 175 g (6.2 oz)

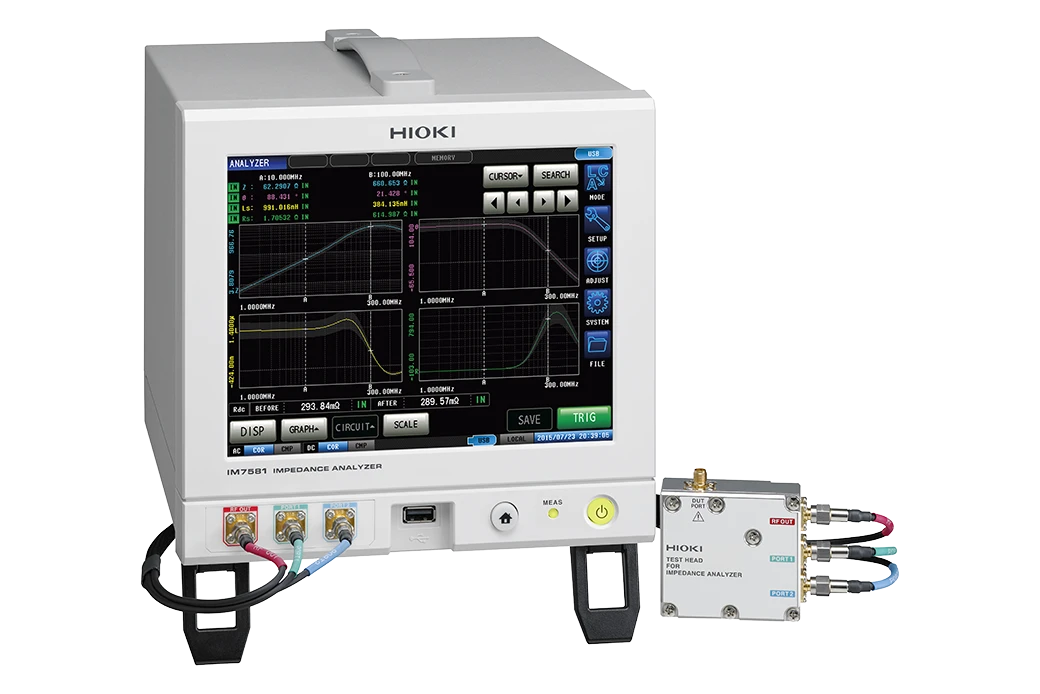

Included accessories Test head ×1, Connection cable ×1, Power cord ×1, Instruction manual ×1, LCR application disc (Communications user manual) ×1

Included accessories

Test head ×1, Connection cable ×1, Power cord ×1, Instruction manual ×1, LCR application disc (Communications user manual) ×1

Included accessories

Test head ×1, Connection cable ×1, Power cord ×1, Instruction manual ×1, LCR application disc (Communications user manual) ×1

Hioki LCR Meters and Impedance Analyzers range from 1 mHz to 3 GHz devices to suit a wide range of applications in the testing of electronic components. The IM7581 offers a top measurement time of 0.5 ms over a 100 kHz to 300 MHz frequency range, making it ideal for high volume production of ferrite chip beads and chip inductors.

The HIOKI IMPEDANCE ANALYZER IM7581 offers precise measurement for advanced testing needs. If you’re searching for reliable performance and accuracy, check out the HIOKI IMPEDANCE ANALYZER IM7581 Price in Bangladesh, providing excellent value for professionals in electronics and engineering fields.

Key Features

  • 100 kHz to 300 MHz testing source frequency
  • Fastest test speed of 0.5 msec (Analog measurement time)
  • ±0.72% rdg. basic accuracy
  • RF I-V method
  • Half-rack size body and palm-sized test head
  • Comprehensive contact check (via DCR testing, Hi-Z reject or waveform judgment)
  • Make frequency sweeps, level sweeps and time interval measurements in Analyzer Mode

Basic specifications

Accuracy guaranteed: 1 year

Measurement modes LCR mode, Analyzer mode (Sweeps with measurement frequency and measurement level), Continuous measurement mode
Measurement parameters Z, Y, θ, Rs (ESR), Rp, X, G, B, Cs, Cp, Ls, Lp, D (tanδ), Q
Measurable range 100 mΩ to 5 kΩ
Display range Z: 0.00 m to 9.99999 GΩ / Rs, Rp, X: ± (0.00 m to 9.99999 GΩ)
Ls, Lp: ± (0.00000 n to 9.99999 GH) / Q: ± (0.00 to 9999.99)
θ: ± (0.000° to 180.000°), Cs, Cp: ± (0.00000 p to 9.99999 GF)
D: ± (0.00000 to 9.99999), Y: (0.000 n to 9.99999 GS)
G, B: ± (0.000 n to 9.99999 GS), Δ%: ± (0.000 % to 999.999 %)
Basic accuracy Z: ±0.72 % rdg. θ: ±0.41°
Measurement frequency 100.00 kHz to 300.00 MHz (5 digits resolution)
Measurement signal level Power: -40.0 dBm to +7.0 dBm
Voltage: 4 mV to 1001 mVrms
Current: 0.09 mA to 20.02 mArms
User-configured power, voltage, and current
Output impedance 50 Ω
Display 8.4-inch color TFT with touch screen
Measurement speeds *1 FAST: 0.5 ms / MED: 0.9 ms / SLOW: 2.1 ms / SLOW2: 3.7 ms
*1 Analog measurement time
Functions Contact check, Comparator, BIN measurement (classification), Panel loading/saving, Memory function, Equivalent circuit analysis, Correlation compensation
Interfaces Handler, USB, LAN, GP-IB (optional), RS-232C (optional)
Power supply 100 to 240 V AC, 50/60 Hz, 70 VA max.
Dimensions and mass Main unit: 215 mm (8.46 in) W × 200 mm (7.87 in) H × 268 mm (10.55 in) D, 6.5 kg (229.3 oz)
Test head: 61 mm (2.40 in) W × 55 mm (2.17 in) H × 24 mm (0.94 in) D, 175 g (6.2 oz)
Included accessories Test head ×1, Connection cable ×1, Power cord ×1, Instruction manual ×1, LCR application disc (Communications user manual) ×1

Included accessories

Test head ×1, Connection cable ×1, Power cord ×1, Instruction manual ×1, LCR application disc (Communications user manual) ×1

Included accessories

Test head ×1, Connection cable ×1, Power cord ×1, Instruction manual ×1, LCR application disc (Communications user manual) ×1
