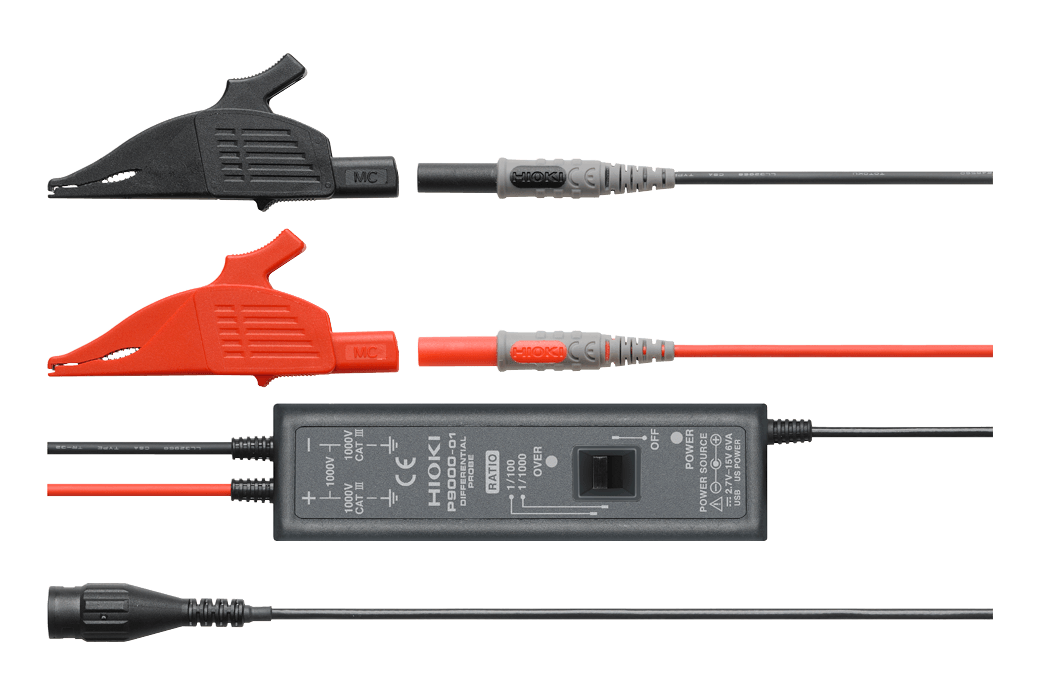

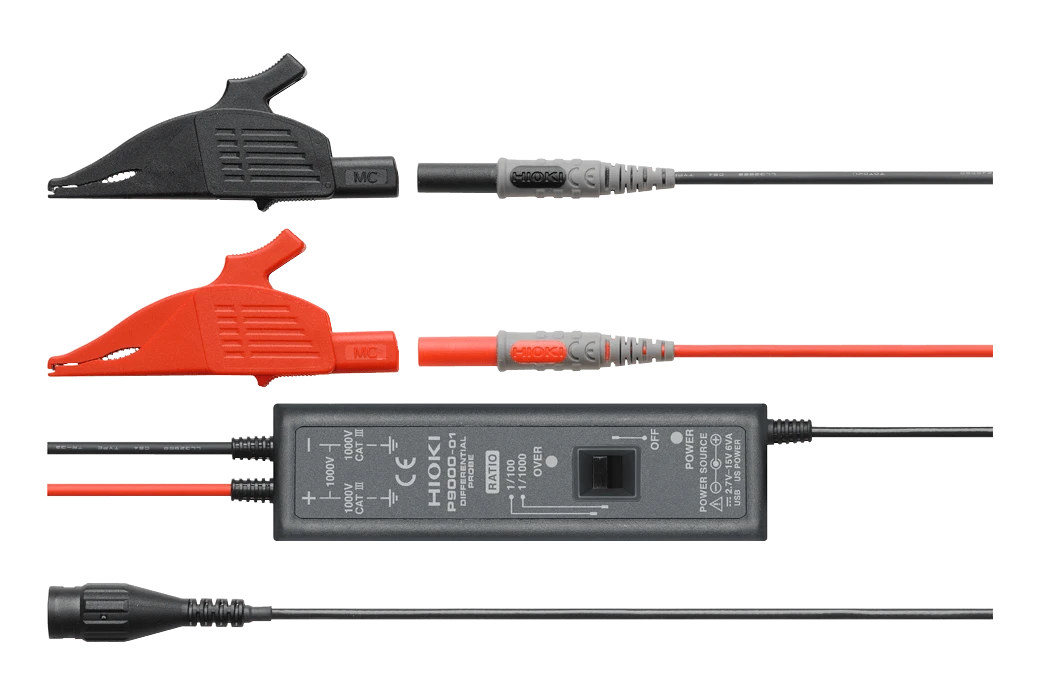

The Hioki P9000 series (models P9000‑01 and P9000‑02) is a compact, lightweight differential probe designed for CAT III 1000 V AC/DC measurements. It connects to Memory HiCorder and HiLogger units via their analog input terminals for high‑voltage waveform analysis. Discover the HIOKI DIFFERENTIAL PROBE P9000 price in Bangladesh. Accurate signal testing for advanced measurement needs.
Key Features
- Compact probe for CAT III 1000 V environments
- Wave mode: Observe instantaneous waveforms
- RMS mode: Observe RMS value waveforms
Basic specifications
Accuracy guaranteed: 1 year
| |
P9000-01 |
P9000-02 |
| Measurement functions |
Waveform monitor output only
Frequency characteristics: DC to 100 kHz, -3 dB |
Waveform monitor output/AC RMS value output (switchable)
Wave mode frequency characteristics: DC to 100 kHz, -3 dB
RMS mode frequency characteristics: 30 Hz to 10 kHz; response time: 300 ms (rising) or 500 ms (falling) |
| Division ratio |
1000:1 or 100:1 (user selectable) |
| DC amplitude accuracy |
±0.5% f.s. (f.s. = 1.0 V; voltage division ratio: 1000:1) (f.s. = 3.5 V; voltage division ratio: 100:1) |
| RMS amplitude accuracy |
n/a |
±1% f.s. (30 Hz to 1 kHz non-inclusive, sine wave), ±3% f.s. (1 kHz to 10 kHz, sine wave) |
| Input resistance, capacity |
Between H and L: 10.5 MΩ, 5 pF or less (at 100 kHz) |
| Max. allowable input |
1000 V AC/DC |
| Max. rated voltage to earth |
1000 V AC/DC (CAT III) |
| Operating temperature |
-40˚C (-40˚F) to 80˚C (176˚F) |
| Power supply |
(1) AC Adapter Z1008 (100 to 240 V AC, 50/60 Hz), 6 VA (including AC adapter) or 0.9 VA (probe only)
(2) USB bus power (5 V DC, USB Micro-B receptacle), 0.8 VA
To prevent an electric shock, when supplying power from the USB-microB terminal, please supply from a device which USB's GND terminal of the source device is grounded.
(3) External power supply (2.7 V to 15 V DC) |
| Dimensions and mass |
128 mm (5.04 in)W × 36 mm (1.42 in)H × 22 mm (0.87 in)D, 170 g (6.0 oz), Cord length: Input: 70 cm (2.30 ft) ; output: 1.5 m (4.92 ft) |
| Included accessories |
Instruction manual ×1, alligator clips ×2, carrying case ×1 |
Number of P9000 probes that can be used when power is supplied from the standard USB terminal of the Memory HiCorder
(Caution 1) To prevent an electric shock, connect the power cord supplied with the main unit (Memory HiCorder or AC adapter for the P9000) to a grounded 2-pole outlet.
(Caution 2) Custom-order 3-branch cable cannot be used with the standard USB terminal of the main unit (Memory HiCorder).
| Main unit |
Number of the P9000-01, P9000-02 connections |
| MR8880 |
1 |
| MR8875 |
1 |
| MR8847A |
1 |
| MR8827 |
2 |
| MR8740 |
2 |
| MR8741 |
2 |
| MR8740T |
8 |
| MR6000, MR6000-01 |
6
(The USB terminal in the media box of MR6000 cannot be used) |
| Instruction manual ×1, alligator clips ×2, carrying case ×1 |
| Instruction manual ×1, alligator clips ×2, carrying case ×1 |
