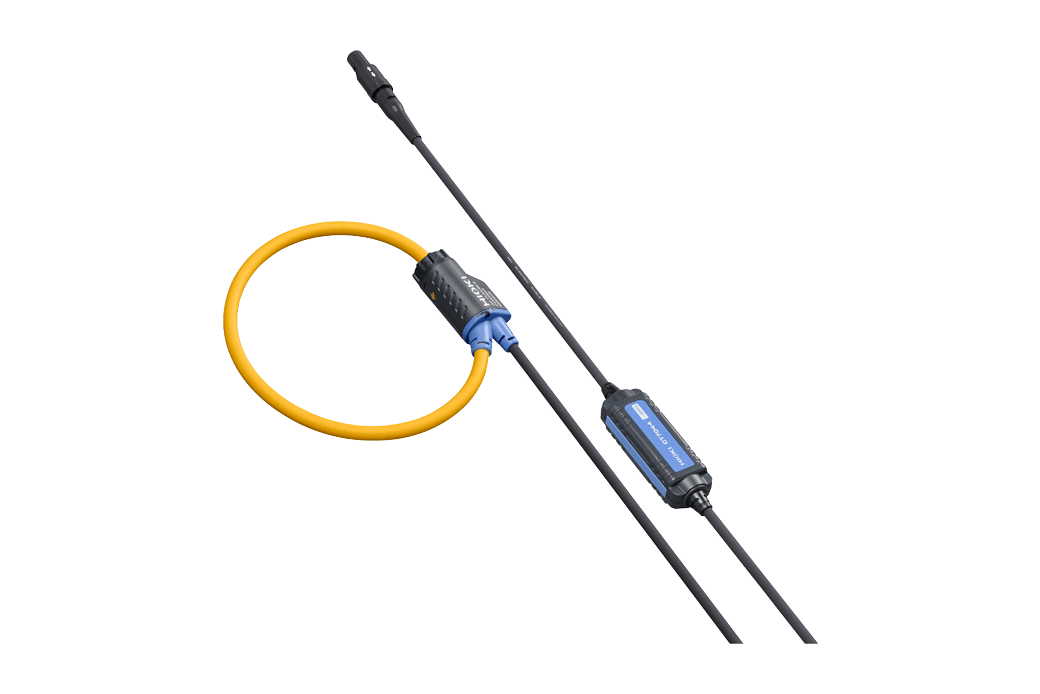

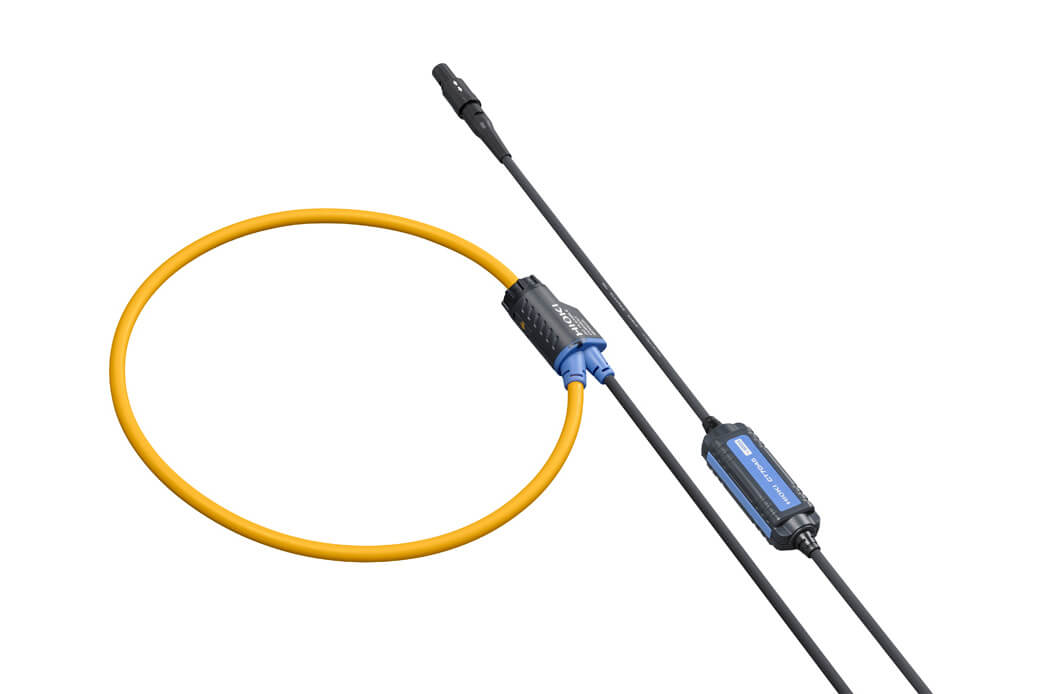

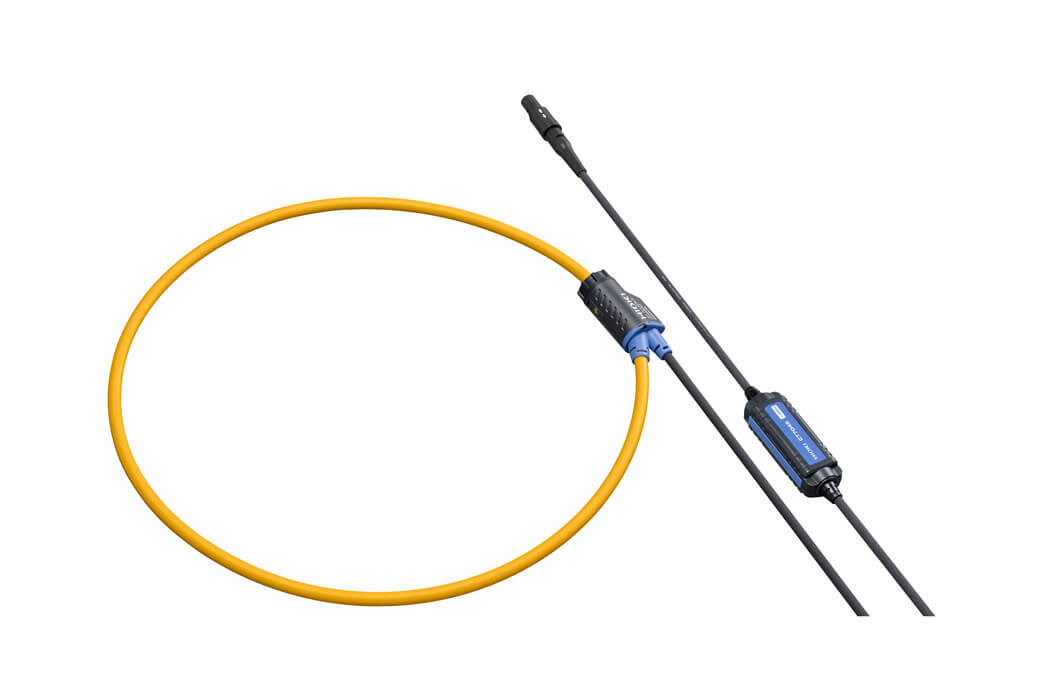

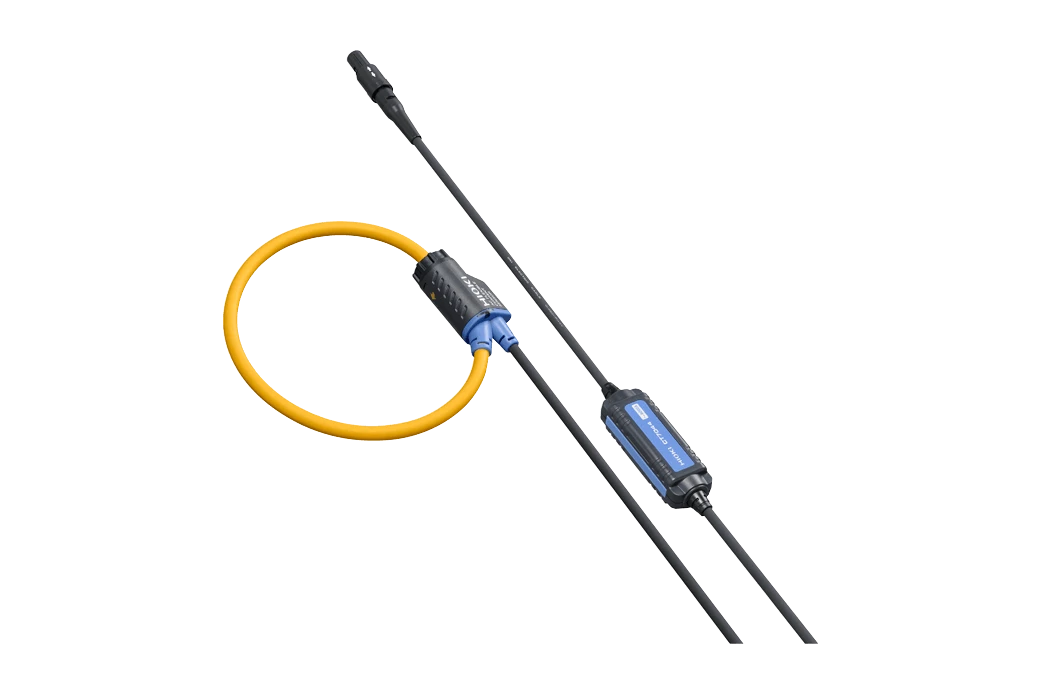

Hioki clamp sensors are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. The CT7040 Series compromise of 600A/6000A AC flexible current sensors in three different loop sizes that pair with the detachable Display Unit to measure large currents in crowded wiring and confined spaces. Safety CAT IV 600 V, CAT III 1000 V. HIOKI AC FLEXIBLE CURRENT SENSOR CT7040 Price in Bangladesh offers accurate and flexible current measurement for industrial applications. This sensor ensures safety and efficiency with easy installation and high precision. Get the best deals and reliable performance with the HIOKI AC FLEXIBLE CURRENT SENSOR CT7040 Price in Bangladesh.
Key Features
- Thinner cables are easier to use in confined spaces and with complicated wiring
- Supports large current measurements up to 6000 A
- Wide 10 Hz to 50 kHz band with excellent frequency characteristics
- Choose from three conductor diameter sizes
- Ideal for site inspections by using detachable Display Unit
- Four output formats to output data to loggers or other devices (via Display Unit): WAVE, RMS, PEAK, Hz
Basic specifications
Accuracy guaranteed: 1 year
Waterproof characteristics intended to maintain measurement function; measuring energized parts while instrument is wet will increase risk of electric shock.
| |
CT7046 |
CT7045 |
CT7044 |
| Rated measurement current |
6000 A AC |
| Internal Measurement range |
600A AC/ 6000A AC (Range is controlled by main device) |
| Max. allowable input |
10000 A continuous (at 6000 A range, 45 to 66 Hz, requires derating ) |
| Bandwidth |
10 Hz to 50 kHz (±3dB)
(When used in combination with CM7290 or CM7291: 10 Hz to 1 kHz) |
| Amplitude and phase accuracy |
±1.5 % rdg. ±0.25 % f.s. (f.s. is internal range, 45 to 66 Hz) ±1 deg |
| Output rate |
1 mV/A (600 A*), 0.1 mV/A (6000 A)
*Selectable only when used with CM7290, CM7291, PQ3100 |
| Max. rated voltage to earth |
AC 600 V (CAT IV), AC 1000 V (CAT III) |
| Loop diameter |
φ 254 mm (10.00 in) or less |
φ 180 mm (7.09 in) or less |
φ 100 mm (3.94 in) or less |
| Dust and water resistance * |
IP54 (when connected to a supported instrument, Do not make measurements when wet.) |
| Output connectors |
HIOKI PL 14 |
| Operating temperature range |
-25 °C to 65 °C (-13 °F to 149 °F) |
| Dimensions |
Flexible loop cable diameter: φ7.4 mm (0.29 in), Cable length: Between flexible loop and battery box: 2.3 m (7.55 ft), Output cable: 20 cm (0.66 ft), Battery box25 mm (0.98 in)W × 72 mm (2.83 in)H × 20 mm (0.79 in)D |
| Mass |
186 g (6.6 oz) |
174 g (6.1 oz) |
160 g (5.6 oz) |
| Included accessories |
Instruction manual ×1 |
| Included accessories |
Instruction manual ×1 |
| Included accessories |
Instruction manual ×1 |
