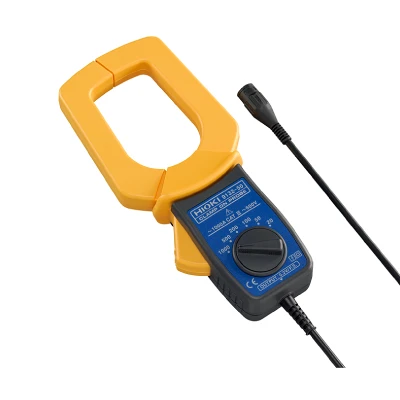

Hioki current sensors are best-in-class devices for accurately capturing a wide range of current levels. The 9132-50 is a multi-range 1000 A AC voltage output clamp sensor for capturing waveforms with DMMs and Memory HiCorders. Measure AC current on live power lines without needing to cut the wire. CAT III 600 V. HIOKI CLAMP ON PROBE 9132-50 Price in Bangladesh offers accurate and reliable current measurement for professionals. Designed for ease of use and durability, it ensures precise readings in various electrical applications. Find the best deals and genuine products with competitive HIOKI CLAMP ON PROBE 9132-50 Price in Bangladesh.

Key Features

  • Economical clamp sensor for waveform recording with Memory HiCorders
  • Choose from up to six general-purpose ranges

Basic specifications

Accuracy guaranteed: 1 year

Rated current 20 A to 1000 A AC, 6 ranges
Accuracy ±3 % rdg. ±0.2 % f.s. (45 to 66 Hz)
Frequency characteristics Add to amplitude accuracy for frequencies from 40 to 1 kHz: ± 1 % rdg.
Output rate 0.2 V AC f.s. (f.s. = setting rage)
(Connect to a voltage input device providing a high input impedance of 1 MΩ)
Max. allowable input 1000 A rms continuous (all ranges)
(For 40 Hz to 500 Hz: 100 %, and for 500 Hz to 1 kHz: within 90 % of derating)
Max. rated voltage to earth 600 Vrms (50/60 Hz, CAT III)
Core diameter φ55 mm (2.17 in), or 20 mm (0.79 in) × 80 mm (3.15 in) busbar
Dimensions and mass 100 mm (3.94 in)W × 224 mm (8.82 in)H × 35 mm (1.38 in)D, 600 g (21.2 oz), cord length: 3 m (9.84 ft)
Included accessories Instruction manual ×1
Included accessories Instruction manual ×1
Included accessories Instruction manual ×1
