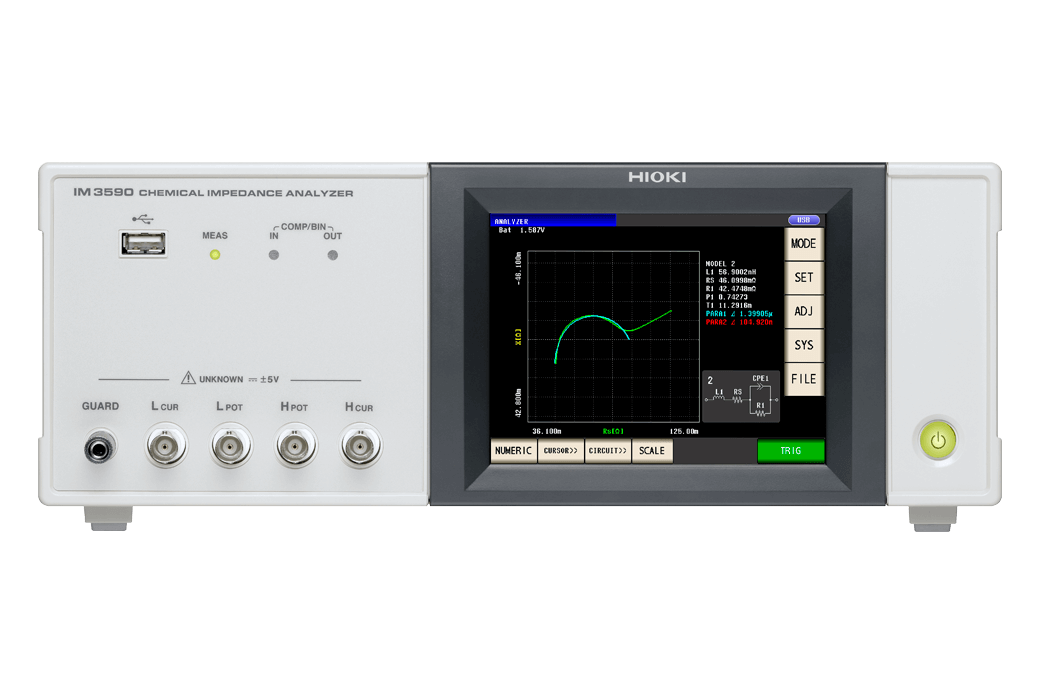

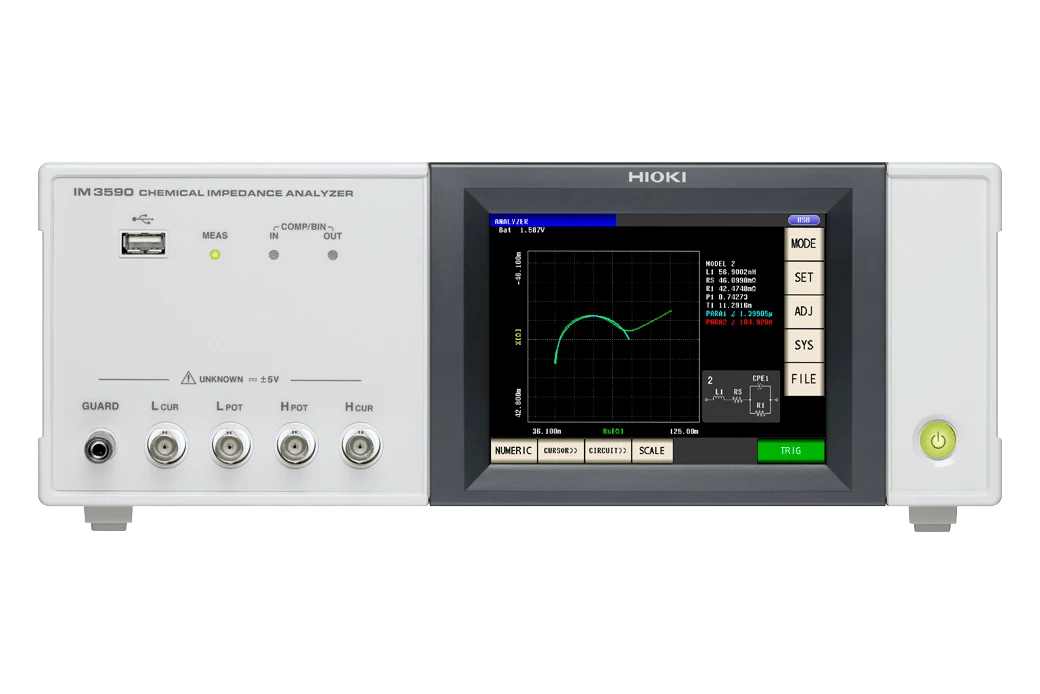

Measurement modes |
LCR mode, Continuous measurement mode (LCR mode / Analyzer mode), Analyzer mode (Sweeps with measurement frequency and measurement level, temperature characteristics, equivalent circuit analysis) |
Measurement parameters |
Z, Y, θ, Rs (ESR), Rp, Rdc (DC resistance), X, G, B, Cs, Cp, Ls, Lp,
D (tanδ), Q, T, σ (conductivity), ε (dielectric constant) |
Measurement range |
100 mΩ to 100 MΩ, 10 ranges (All parameters are determined according to Z) |
Display range |
Z, Y, Rs, Rp, Rdc, X, G, B, Ls, Lp, Cs, Cp, σ, ε :
±(0.00000 [unit] to 9.99999G [unit], Absolute value display for Z and Y only
θ : ±(0.000° to 180.000°), D : ±(0.00000 to 9.99999)
Q : ±(0.00 to 99999.9), Δ % : ±(0.0000% to 999.999%)
T : -10.0°C to 99.9°C
σ, ε :±(0.00000f [unit] to 999.999G [unit] |
Basic accuracy |
Z: ±0.05% rdg. θ: ±0.03° |
Measurement frequency |
1 mHz to 200 kHz (5 digits setting resolution, minimum resolution 1 mHz) |
Measurement signal level |
Normal mode:
V mode/CV mode: 5 mV to 5 Vrms, 1 mVrms steps
CC mode: 10 μA to 50 mArms, 10 μArms steps
Low impedance high accuracy mode:
V mode/CV mode: 5 mV to 2.5 Vrms, 1 mVrms steps
CC mode:10 μA to 100 mArms, 10 μArms steps |
Output impedance |
Normal mode: 100 Ω, Low impedance high accuracy mode: 25 Ω |
Display |
5.7-inch color TFT, display can be set to ON/OFF |
Measurement time |
2 ms (1 kHz, FAST, display OFF, representative value) |
Functions |
DC bias measurement, DC resistance temperature compensation (converted reference temperature is displayed), Temperature measurement, Battery mesurement (Automatic DC biasing system), Comparator, BIN measurement (classification), Panel loading/saving, Memory function |
Interfaces |
EXT I/O (Handler), USB communication (high-speed), USB memory
Optional: Choose 1 from RS-232C, GP-IB, or LAN |
Power supply |
100 to 240 V AC, 50/60 Hz, 50 VA max. |
Dimensions and mass |
330 mm (12.99 in) W × 119 mm (4.69 in) H × 168 mm (6.61 in) D, 3.1 kg (109.3 oz) |
Included accessories |
Power cord ×1, Instruction manual ×1, CD-R (Communication instruction manual and sample software [Communications control, accuracy calculation, and screen capture functionality] ) ×1 |
