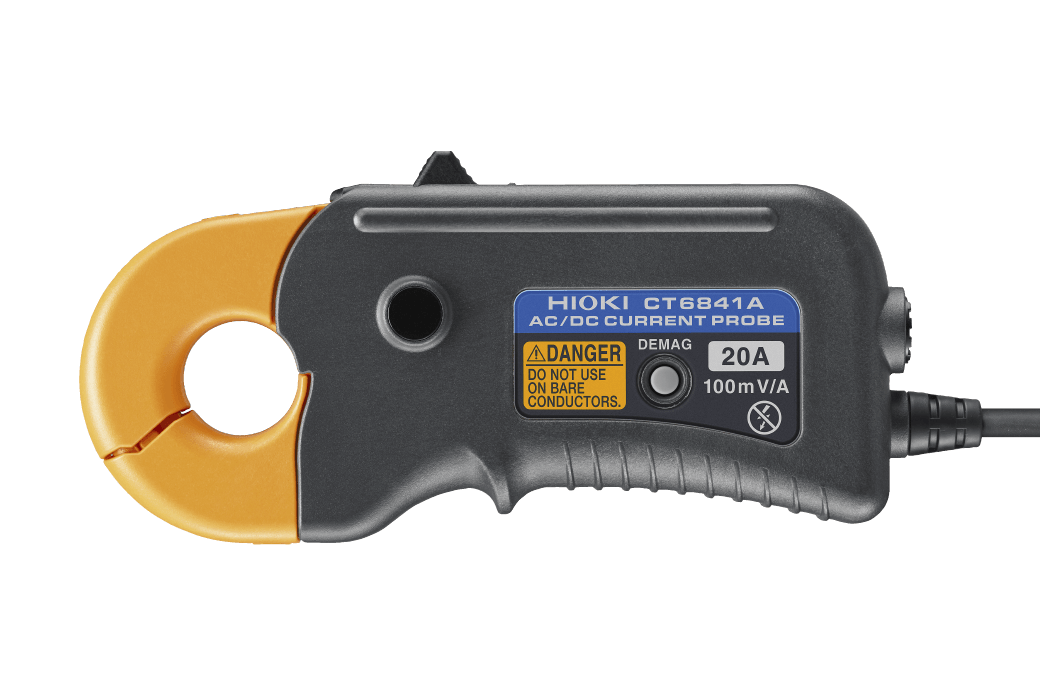

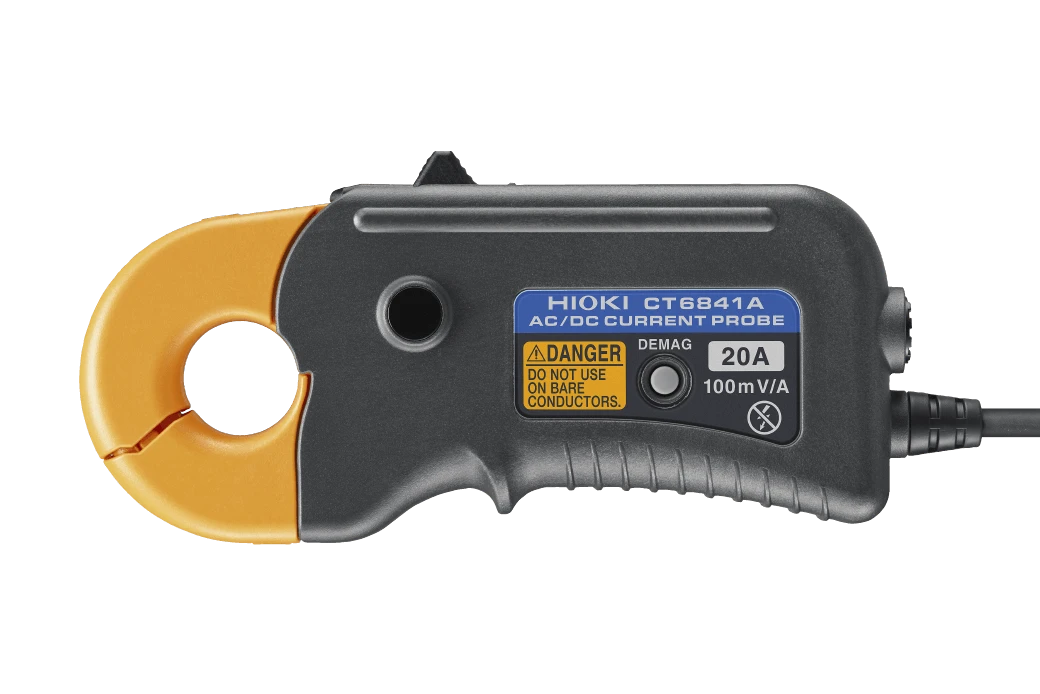

HIOKI AC, DC CURRENT PROBE CT6841A

Home › Hioki
Thumbnail
Shop : Tools Bangladesh
Product ID : 4322
Brand : Hioki
Availability : Out of Stock
Price BDT : Ask for Price
Reviews :
Share :
Request Quote

  • Customer Support

    +8801965656380

  • Cash One Delivery

    Pay after getting the product on hand

  • Warranty

    1 Year warranty by manufacturer

  • Secured Payment Method

    Your cart is always secure to shop

  • Easy Return Policy

    24 hours return without physical defect.

Hioki's clamp type AC/DC current sensors can be connected directly to Hioki Power Analyzers and Memory HiCorders. Also, it can be connected to Power Meters, Oscilloscopes, DMMs, etc. by using an optional sensor unit. HIOKI AC, DC CURRENT PROBE CT6841A Price in Bangladesh offers accurate and reliable current measurements for both AC and DC applications. This high-performance probe is designed for professional engineers and technicians who require precision in their electrical testing. Featuring a wide measurement range and excellent noise immunity, the CT6841A ensures consistent and safe operation. Its ergonomic design makes it easy to handle during complex diagnostics. For those seeking quality and durability, the HIOKI CT6841A is an ideal choice. Check the latest HIOKI AC, DC CURRENT PROBE CT6841A Price in Bangladesh to get the best deal from trusted suppliers.

Key Features

  • Frequency bandwidth DC to 2 MHz
  • Rated current 20 A AC/DC
  • Power supplied via the measurement instrument (when connecting Hioki Power Analyzer or Memory HiCorder)
  • Ideal for use in environmental testing with broad -40°C to 85°C temperature range
  • Ideal for EV inverter evaluation and PV power generation PCS evaluation
  • Single-handed operation and robust locking mechanism

Basic specifications

Accuracy guaranteed: 1 year

Rated current 20 A AC/DC
Frequency bandwidth DC to 2 MHz
Diameter of measurable conductors Max. φ 20 mm (0.79 in.)
Max. allowable input ±60 A peak
(Within 20 ms in an environment of 40°C/104°F or less)
Output voltage 100 mV/A
Output resistance 50 Ω ± 10 Ω
Accuracy (amplitude)
±(% of reading + % of full scale)		 DC: 0.2% + 0.05%
DC < f ≤ 100 Hz: 0.2% + 0.01%
Linearity ±20 ppm Typical
Common-Mode Voltage Rejection Ratio
(CMRR)		 DC to 1 kHz：140 dB or greater
1 kHz to 10 kHz：125 dB or greater
10 kHz to 100 kHz：100 dB or greater
100 kHz to 1 MHz：80 dB or greater
(effect on output voltage and common mode voltage)
Automatic phase correction Automatically performs phase correction when connected to PW8001
Operating temperature, humidity -40°C to 85°C (-40°F to 185°F), 80% RH or less
Withstand voltage AC 4260 V
Power supply Power suppled via the Power Analyzer PW8001, PW6001, PW3390, Sensor Unit CT9555, CT9556, CT9557, or 3CH CURRENT UNIT U8977
Max. rated power 5 VA or less (When measuring 20 A/55 Hz with ±12 V power supply)
Dimensions and mass Approx. 153 mm W × 67 mm H × 25 mm D
(approx. 6.02 in. W × 2.64 in. H × 0.98 in. D), 370 g (13.1 oz.)
Cable length Approx. 3 m (9.84 ft.)
Included accessories Markup bands ×6, Carrying Case, Instruction Manual
Included accessories Markup bands ×6, Carrying Case, Instruction Manual
Included accessories Markup bands ×6, Carrying Case, Instruction Manual

Hioki's clamp type AC/DC current sensors can be connected directly to Hioki Power Analyzers and Memory HiCorders. Also, it can be connected to Power Meters, Oscilloscopes, DMMs, etc. by using an optional sensor unit. HIOKI AC, DC CURRENT PROBE CT6841A Price in Bangladesh offers accurate and reliable current measurements for both AC and DC applications. This high-performance probe is designed for professional engineers and technicians who require precision in their electrical testing. Featuring a wide measurement range and excellent noise immunity, the CT6841A ensures consistent and safe operation. Its ergonomic design makes it easy to handle during complex diagnostics. For those seeking quality and durability, the HIOKI CT6841A is an ideal choice. Check the latest HIOKI AC, DC CURRENT PROBE CT6841A Price in Bangladesh to get the best deal from trusted suppliers.

Key Features

  • Frequency bandwidth DC to 2 MHz
  • Rated current 20 A AC/DC
  • Power supplied via the measurement instrument (when connecting Hioki Power Analyzer or Memory HiCorder)
  • Ideal for use in environmental testing with broad -40°C to 85°C temperature range
  • Ideal for EV inverter evaluation and PV power generation PCS evaluation
  • Single-handed operation and robust locking mechanism

Basic specifications

Accuracy guaranteed: 1 year

Rated current 20 A AC/DC
Frequency bandwidth DC to 2 MHz
Diameter of measurable conductors Max. φ 20 mm (0.79 in.)
Max. allowable input ±60 A peak
(Within 20 ms in an environment of 40°C/104°F or less)
Output voltage 100 mV/A
Output resistance 50 Ω ± 10 Ω
Accuracy (amplitude)
±(% of reading + % of full scale)		 DC: 0.2% + 0.05%
DC < f ≤ 100 Hz: 0.2% + 0.01%
Linearity ±20 ppm Typical
Common-Mode Voltage Rejection Ratio
(CMRR)		 DC to 1 kHz：140 dB or greater
1 kHz to 10 kHz：125 dB or greater
10 kHz to 100 kHz：100 dB or greater
100 kHz to 1 MHz：80 dB or greater
(effect on output voltage and common mode voltage)
Automatic phase correction Automatically performs phase correction when connected to PW8001
Operating temperature, humidity -40°C to 85°C (-40°F to 185°F), 80% RH or less
Withstand voltage AC 4260 V
Power supply Power suppled via the Power Analyzer PW8001, PW6001, PW3390, Sensor Unit CT9555, CT9556, CT9557, or 3CH CURRENT UNIT U8977
Max. rated power 5 VA or less (When measuring 20 A/55 Hz with ±12 V power supply)
Dimensions and mass Approx. 153 mm W × 67 mm H × 25 mm D
(approx. 6.02 in. W × 2.64 in. H × 0.98 in. D), 370 g (13.1 oz.)
Cable length Approx. 3 m (9.84 ft.)
Included accessories Markup bands ×6, Carrying Case, Instruction Manual

Included accessories Markup bands ×6, Carrying Case, Instruction Manual

Included accessories Markup bands ×6, Carrying Case, Instruction Manual
