HIOKI AC, DC CURRENT PROBE CT6834, CT6834-01

Home › Hioki
Thumbnail
Shop : Tools Bangladesh
Product ID : 4317
Brand : Hioki
Availability : Out of Stock
Price BDT : Ask for Price
Reviews :
Share :
Request Quote

  • Customer Support

    +8801965656380

  • Cash One Delivery

    Pay after getting the product on hand

  • Warranty

    1 Year warranty by manufacturer

  • Secured Payment Method

    Your cart is always secure to shop

  • Easy Return Policy

    24 hours return without physical defect.

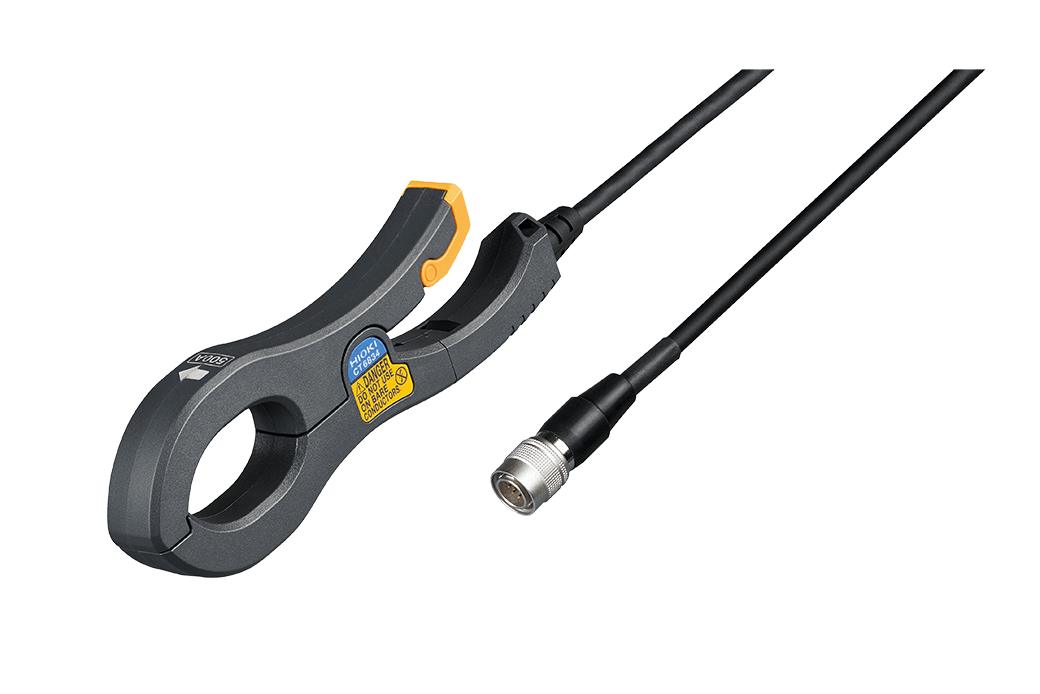

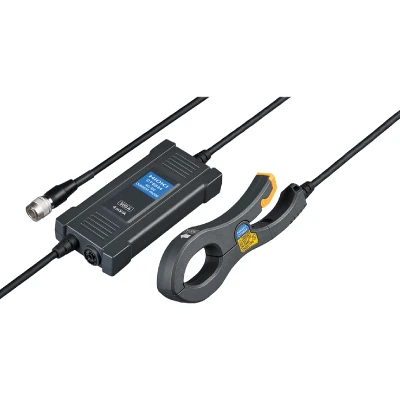

The AC/DC Current Probe CT6834 features a 50% smaller size while delivering precise and reliable performance across a wide temperature range. Perfect for automotive testing, it simplifies installation in tight spaces, enhances measurement accuracy, and improves testing efficiency. Experience innovation that saves time and increases accuracy!

Half the Size, Maximum Precision

The slim design ensures easy installation even in tight spaces.
Complex tasks in the engine room become simple and efficient, dramatically reducing preparation time for fuel efficiency and performance testing. Not only does it reduce setup time, but it also minimizes the risk of sensor damage from forced clamping between narrow spaces.
Fully compliant with the WLTP and SAE J1634 standards, it provides precise AC/DC current measurements up to 500 A with an impressive DC accuracy of 0.07%.

HIOKI AC, DC CURRENT PROBE CT6834, CT6834-01 Price in Bangladesh reflects its premium quality and precision in measuring wide-range current signals. Ideal for high-accuracy testing in power electronics and automotive fields, this probe ensures reliable performance. Discover dependable results with the CT6834 series at the best price in Bangladesh.

Key Features

  • Rated current: 500 A AC/DC
  • Frequency bandwidth: DC to 50 kHz
  • Measurement accuracy DC: ±0.07% rdg. ±0.01% f.s.
  • Operating temp range: −40°C to 85°C, perfect for vehicle testing
  • Clamp conductor diameter: φ20 mm
  • Choose from 5 m/10 m cable length

Basic specification

Accuracy guaranteed: 1 year

Rated current 500 A AC/DC
Frequency bandwidth DC to 50 kHz
Diameter of measurable conductor Max. φ20 mm (0.79 in.)
Maximum peak current Up to ±800 A peak are permitted at a temperature of 40°C (104°F) or less and within 1 period of a periodic waveform of 10 ms or more (design value, out of guaranteed accuracy range)
Output voltage 4 mV/A
Measurement accuracy DC : ±0.07% rdg. ±0.01% f.s.
16 Hz ≤ f ≤ 66 Hz : ±0.07% rdg. ±0.007% f.s.
Up to 20 kHz specified
Operating temperature and humidity range Sensor, cable: −40°C to 85°C (−40°F to 185°F), 80% RH or less (non-condensing)
Relay box: −25°C to 50°C (−13°F to 122°F), 80% RH or less (non-condensing)
Temperature coefficient The following numerical values are added to the measurement accuracy according to the temperature difference with the upper and lower limits of the guaranteed accuracy temperature range (18°C or 28°C [64°F or 82°F]) if operating temperatures are outside the guaranteed accuracy temperature range (23°C±5°C [73°F±9°F]).

- Sensor
Amplitude accuracy: ±4 ppm of reading/°C (±0.8 ppm of reading/°C Typical)
Offset voltage: ±3 ppm of full scale/°C (±0.5 ppm of full scale/°C Typical)

- Relay box
Amplitude accuracy: ±15 ppm of reading/°C (±5 ppm of reading/°C Typical)
Offset voltage: ±1 ppm of full scale/°C (±0.3 ppm of full scale/°C Typical)
Effects of conductor position (For a conductor with an outer diameter of 10 mm)
DC: ±0.03% of reading or less (±0.01% of reading Typical)
50 Hz/60 Hz: ±0.04% of reading or less (±0.015% of reading Typical)
1 kHz: ±0.1% of reading or less (±0.04% of reading Typical)
10 kHz: ±1% of reading or less (±0.3% of reading Typical)
Power supply Use Hioki instruments with an ME15W connector
Dimensions Sensor: approx. 149W × 46H × 16.5D mm (5.9W × 1.8H × 0.6D in.)
Relay box: approx. 126W × 57H × 20.5D mm (5.0W × 2.2H × 0.8D in.)
(excluding protrusions and cable)
Weight CT6834: approx. 500 g (17.6 oz.)
CT6834-01: approx. 710 g (25.0 oz.)
Output cable length CT6834: approx. 5 m ([16.4 ft.] including relay box)
CT6834-01: approx. 10 m ([32.8 ft.] including relay box)
Included accessories Color labels (for channel identification) ×1, Carrying Case ×1, Instruction Manual ×1, Current Sensor Operating Precautions ×1
Included accessories Color labels (for channel identification) ×1, Carrying Case ×1, Instruction Manual ×1, Current Sensor Operating Precautions ×1
Included accessories Color labels (for channel identification) ×1, Carrying Case ×1, Instruction Manual ×1, Current Sensor Operating Precautions ×1

The AC/DC Current Probe CT6834 features a 50% smaller size while delivering precise and reliable performance across a wide temperature range. Perfect for automotive testing, it simplifies installation in tight spaces, enhances measurement accuracy, and improves testing efficiency. Experience innovation that saves time and increases accuracy!

Half the Size, Maximum Precision

The slim design ensures easy installation even in tight spaces.
Complex tasks in the engine room become simple and efficient, dramatically reducing preparation time for fuel efficiency and performance testing. Not only does it reduce setup time, but it also minimizes the risk of sensor damage from forced clamping between narrow spaces.
Fully compliant with the WLTP and SAE J1634 standards, it provides precise AC/DC current measurements up to 500 A with an impressive DC accuracy of 0.07%.

HIOKI AC, DC CURRENT PROBE CT6834, CT6834-01 Price in Bangladesh reflects its premium quality and precision in measuring wide-range current signals. Ideal for high-accuracy testing in power electronics and automotive fields, this probe ensures reliable performance. Discover dependable results with the CT6834 series at the best price in Bangladesh.

Key Features

  • Rated current: 500 A AC/DC
  • Frequency bandwidth: DC to 50 kHz
  • Measurement accuracy DC: ±0.07% rdg. ±0.01% f.s.
  • Operating temp range: −40°C to 85°C, perfect for vehicle testing
  • Clamp conductor diameter: φ20 mm
  • Choose from 5 m/10 m cable length

Basic specification

Accuracy guaranteed: 1 year

Rated current 500 A AC/DC
Frequency bandwidth DC to 50 kHz
Diameter of measurable conductor Max. φ20 mm (0.79 in.)
Maximum peak current Up to ±800 A peak are permitted at a temperature of 40°C (104°F) or less and within 1 period of a periodic waveform of 10 ms or more (design value, out of guaranteed accuracy range)
Output voltage 4 mV/A
Measurement accuracy DC : ±0.07% rdg. ±0.01% f.s.
16 Hz ≤ f ≤ 66 Hz : ±0.07% rdg. ±0.007% f.s.
Up to 20 kHz specified
Operating temperature and humidity range Sensor, cable: −40°C to 85°C (−40°F to 185°F), 80% RH or less (non-condensing)
Relay box: −25°C to 50°C (−13°F to 122°F), 80% RH or less (non-condensing)
Temperature coefficient The following numerical values are added to the measurement accuracy according to the temperature difference with the upper and lower limits of the guaranteed accuracy temperature range (18°C or 28°C [64°F or 82°F]) if operating temperatures are outside the guaranteed accuracy temperature range (23°C±5°C [73°F±9°F]).

- Sensor
Amplitude accuracy: ±4 ppm of reading/°C (±0.8 ppm of reading/°C Typical)
Offset voltage: ±3 ppm of full scale/°C (±0.5 ppm of full scale/°C Typical)

- Relay box
Amplitude accuracy: ±15 ppm of reading/°C (±5 ppm of reading/°C Typical)
Offset voltage: ±1 ppm of full scale/°C (±0.3 ppm of full scale/°C Typical)
Effects of conductor position (For a conductor with an outer diameter of 10 mm)
DC: ±0.03% of reading or less (±0.01% of reading Typical)
50 Hz/60 Hz: ±0.04% of reading or less (±0.015% of reading Typical)
1 kHz: ±0.1% of reading or less (±0.04% of reading Typical)
10 kHz: ±1% of reading or less (±0.3% of reading Typical)
Power supply Use Hioki instruments with an ME15W connector
Dimensions Sensor: approx. 149W × 46H × 16.5D mm (5.9W × 1.8H × 0.6D in.)
Relay box: approx. 126W × 57H × 20.5D mm (5.0W × 2.2H × 0.8D in.)
(excluding protrusions and cable)
Weight CT6834: approx. 500 g (17.6 oz.)
CT6834-01: approx. 710 g (25.0 oz.)
Output cable length CT6834: approx. 5 m ([16.4 ft.] including relay box)
CT6834-01: approx. 10 m ([32.8 ft.] including relay box)
Included accessories Color labels (for channel identification) ×1, Carrying Case ×1, Instruction Manual ×1, Current Sensor Operating Precautions ×1

Included accessories Color labels (for channel identification) ×1, Carrying Case ×1, Instruction Manual ×1, Current Sensor Operating Precautions ×1

Included accessories Color labels (for channel identification) ×1, Carrying Case ×1, Instruction Manual ×1, Current Sensor Operating Precautions ×1
