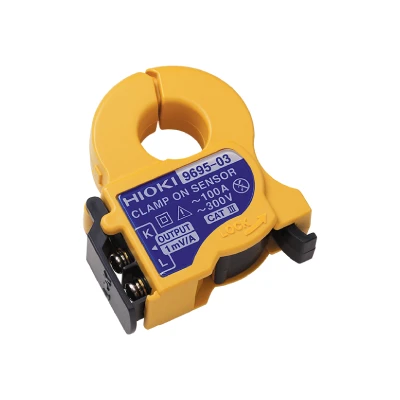

HIOKI 9695-03 CLAMP ON SENSOR

Home › Hioki
Thumbnail
Shop : Tools Bangladesh
Product ID : 4356
Brand : Hioki
Availability : Out of Stock
Price BDT : Ask for Price
Reviews :
Share :
Request Quote

  • Customer Support

    +8801965656380

  • Cash One Delivery

    Pay after getting the product on hand

  • Warranty

    1 Year warranty by manufacturer

  • Secured Payment Method

    Your cart is always secure to shop

  • Easy Return Policy

    24 hours return without physical defect.

Hioki current sensors are best-in-class devices for use with power meters, and PQAs. The 9695-03 is a 100 A AC clamp sensor with voltage output for measuring load current. Safety CAT III 300 V. HIOKI CLAMP ON SENSOR 9695-03 Price in Bangladesh offers accurate and reliable current measurement for professionals. Designed for easy use and durability, it suits various electrical testing needs. Get the best value with competitive HIOKI 9695-03 CLAMP ON SENSOR Price in Bangladesh for quality and performance.

Key Features

  • High ±0.3% accuracy
  • For inverter devices or commercial power lines
  • For power meters and power loggers (may require the 9219)
  • Fits in narrow spaces due to compact design

Basic specifications

Accuracy guaranteed: 1 year

Rated measurement current 100 A AC
Max. measurement current Continuous 130 A (45 to 66 Hz)
Output rate 1 mV AC/ A
Amplitude accuracy
(45 to 66 Hz)		 ±0.3 % rdg. ±0.02 % f.s. (*1)
Phase accuracy ±1° (45 Hz to 5 kHz)
Amplitude frequency characteristics Within ±1% at 40 Hz - 5 kHz (deviation from amplitude accuracy)
Max. rated voltage to earth 300 V AC rms or less (Insulated conductor)
Measurable conductor diameter φ 15 mm (0.59 in) or less
Operating temperature and humidity 0°C to 50°C (32°F to 122°F), 80% RH or less (no condensation)
Dimensions and mass 50.5 mm (1.99 in)W × 58 mm (2.28 in)H × 18.7 mm (0.74 in)D, 50 g (1.8 oz)
Output terminal : M3 terminal (outside 3 mm, 0.12 inch diameter)
Option: Connection cable 9219 (3 m, 9.84 ft length)

N/A

N/A

Hioki current sensors are best-in-class devices for use with power meters, and PQAs. The 9695-03 is a 100 A AC clamp sensor with voltage output for measuring load current. Safety CAT III 300 V. HIOKI CLAMP ON SENSOR 9695-03 Price in Bangladesh offers accurate and reliable current measurement for professionals. Designed for easy use and durability, it suits various electrical testing needs. Get the best value with competitive HIOKI 9695-03 CLAMP ON SENSOR Price in Bangladesh for quality and performance.

Key Features

  • High ±0.3% accuracy
  • For inverter devices or commercial power lines
  • For power meters and power loggers (may require the 9219)
  • Fits in narrow spaces due to compact design

Basic specifications

Accuracy guaranteed: 1 year

Rated measurement current 100 A AC
Max. measurement current Continuous 130 A (45 to 66 Hz)
Output rate 1 mV AC/ A
Amplitude accuracy
(45 to 66 Hz)		 ±0.3 % rdg. ±0.02 % f.s. (*1)
Phase accuracy ±1° (45 Hz to 5 kHz)
Amplitude frequency characteristics Within ±1% at 40 Hz - 5 kHz (deviation from amplitude accuracy)
Max. rated voltage to earth 300 V AC rms or less (Insulated conductor)
Measurable conductor diameter φ 15 mm (0.59 in) or less
Operating temperature and humidity 0°C to 50°C (32°F to 122°F), 80% RH or less (no condensation)
Dimensions and mass 50.5 mm (1.99 in)W × 58 mm (2.28 in)H × 18.7 mm (0.74 in)D, 50 g (1.8 oz)
Output terminal : M3 terminal (outside 3 mm, 0.12 inch diameter)
Option: Connection cable 9219 (3 m, 9.84 ft length)

N/A

N/A
