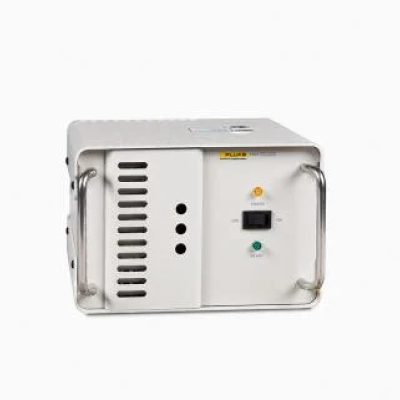

Product overview: 9101 Zero-Point Dry-Well
The Model 9101 takes advantage of the latest solid-state cooling technology rather than relying on older, less reliable sealed-water-cell devices. This eliminates the possibility that the sealed water cell will freeze and burst while transporting the unit to field locations. And our solid-state cooler is run by an adjustable electronic controller that can be recalibrated in your lab for convenient recertification. Simply place a certified standards thermometer in one of the wells and, if needed, tweak the 9101 controller until the standards thermometer reaches equilibrium at 0 °C.
Since the unit is completely self-contained and doesn’t require any user settings, you can run it on demand for instant access to an accurate, traceable zero point. Set it up with the reference junction of a thermocouple for high-accuracy thermocouple measurements.
Less costly than refrigerated baths, more accurate and less problematic than ice baths, and more durable and better looking than competitive units using sealed-water cells, the 9101 Fluke Calibration Zero-Point Dry-Well is a great choice for any calibration lab!
Key Features
- Ice-point reference without the ice
- Bath-quality stability in a portable ice-point reference
- Solid-state cooling technology.
- Comes with three test wells for multiple probe insertions, all stable to ±0.005 °C.
- One well can accommodate changeable inserts for different probe diameters.
Specifications: 9101 Zero-Point Dry-Well
| Specifications |
| Temperature Range |
0 °C (32 °F) |
| Stability |
±0.005 °C |
| Total Instrument Error |
±0.02 °C, typical; ±0.05 °C max. (18–25 °C ambient) |
| Stabilization Time |
Approx. 30 minutes (the ready lamp indicates stable control at 0 °C) |
| Temperature Coefficient |
±0.005 °C/ °C amb. |
| Size (HxWxD) |
311 x 216 x 150 mm (12.25 x 8.5 x 6 in) |
| Power |
115 VAC (±10 %), 1 A or 230 VAC (±10 %), 0.5 A, specify, 50/60 Hz, 125 W |
| Well Dimensions |
2 wells 6.4 mm dia. x 152 mm D (0.25 x 6 in), 1 well 7 mm dia. x 152 mm D (0.28 x 6 in). Includes one set of telescoping inserts to provide various smaller diameters |
| Weight |
5.4 kg (12 lb.) |
| NIST-Traceable Calibration |
Data at 0 °C |
Accessories: 9101 Zero-Point Dry-Well
Calibration accessories (1)
- 2130 | Spare Well-Sizing Tube Set
Cases and holsters (1)
- 9325 | Rugged Carrying Case
Accessories: 9101 Zero-Point Dry-Well
Calibration accessories (1)
- 2130 | Spare Well-Sizing Tube Set
Cases and holsters (1)
- 9325 | Rugged Carrying Case
