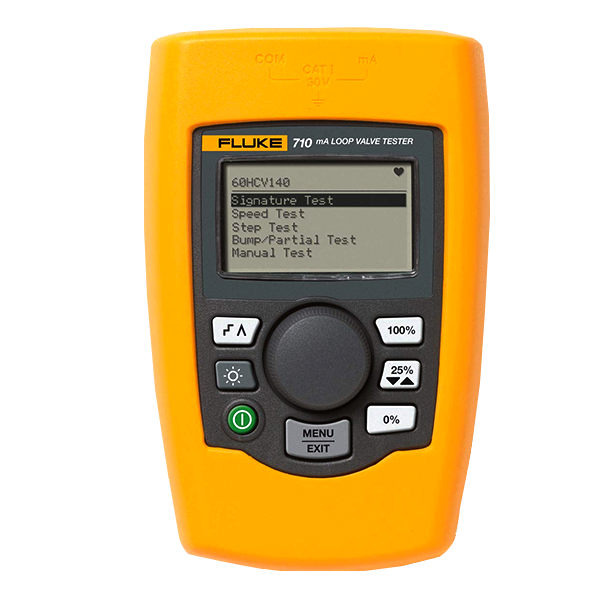

Model: Fluke 710 mA Loop Valve Tester
Fluke 710 valve Testing Loop Calibrator is designed to enable users to perform quick, easy tests on HART smart control valves. Featuring built-in test procedures and an intuitive user interface, the Fluke 710 allows users to quickly and easily perform valve tests, while the valve test quick-check results provide at-a-glance diagnostics help you make maintenance decisions faster than ever. The valve health quick-check results let you know whether your valve is in good, marginal or in the bad operating condition so you can quickly decide whether additional maintenance is necessary.
Valve testing and HART communication in a precision loop calibrator
With Fluke 710 Valve Testing Loop Calibrator’s built-in HART communication function, users can source a 4-20 mA signal to cause the smart control valve to move, while simultaneously interpreting the valve’s HART feedback signal to determine whether the valve is moving to the expected position. In addition to positional information, the measured pressure delivered from the valve’s internal I/P (which moves the valve) can be determined through the HART communication protocol.
Fluke 710 has built-in test procedures that automatically increase and change the mA signal while monitoring the HART position and pressure feedback from the control valve, giving you a better overall picture of valve health at the simple push of a button. Keep it, save it and share it dear Fluke lovers Engineer.
Buy now at Tools Bangladesh and get access to free delivery anywhere in Bangladesh.
Key features: 710 mA Loop Valve Tester
- Key valve testing functions include pre-configured valve signature test, speed test, step test, manual test, and bump/partial stroke test
- Key mA loop calibrator functions include mA source, mA simulate, mA read, mA read/loop power, and volts read
- ValveTrack™ Software enables upload to a PC for further in-depth analysis of valve measurements that are logged and recorded to memory
Specifications: 710 mA Loop Valve Tester
|Functions||mA source, mA simulate, mA read, mA read/loop power, and volts read.|
|Ranges||mA (0 to 24 mA) and Volts (0 to 30 V DC)|
|Resolution||1 µA on mA ranges and 1 mV on voltage range|
|Accuracy||0.01% ± 2 counts, all ranges (@ 23 °C ± 5 °C [73.4 °F ± 41 °F])|
|Operating temperature range||-10°C to 55°C (14°F to 131°F)|
|Humidity range||10 to 95% non-condensing|
|Stability||20 ppm of F.S. /°C from -10°C to 18°C and 28°C to 55°C|
|Display||128 x 64 pixels, LCD Graphic w/backlight, .34 high digits|
|Power||6 AAA alkaline|
|Battery life||40 hours continuous use (measure mode using)|
|Loop compliance voltage||24 V DC @ 20mA|
|Over-voltage protection||240 V AC|
|Overload current protection||28 mA DC|
|EMC||EN61326 Annex A (Portable Instruments)|
|Dimensions (L x W x D)||15 x 9 x 3 cm (6 x 3.6 x 1.3 in)|
|Weight||0.3 kg (9.5 oz)|
|Included accessories||Traceable calibration certificate with data, batteries, test leads, USB upload cable and safety|
Includes: Fluke 710 mA Loop Valve Tester
- Stackable test lead set
- Extended tooth alligator clip set
- TP220 test probes
- AC280 SureGrip™ hook clips
- Lemo to USB upload/download cable
- ValveTrack™ software (free download)
- Six AAA batteries (installed)
- 709/709H/710 Product manual CD-ROM
- 709/709H/710 Quick reference guide
- 709/709H/710 Safety information
