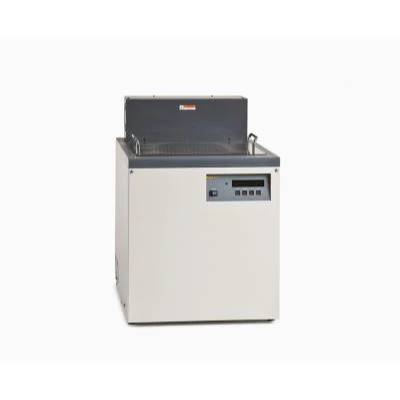

Fluke 7009, 7108, 7015 Resistor Baths

Home › Fluke
Thumbnail
Shop : Tools Bangladesh
Product ID : 4041
Brand : Fluke
Availability : Out of Stock
Price BDT : Ask for Price
Reviews :
Share :
Request Quote

  • Customer Support

    +8801965656380

  • Cash One Delivery

    Pay after getting the product on hand

  • Warranty

    1 Year warranty by manufacturer

  • Secured Payment Method

    Your cart is always secure to shop

  • Easy Return Policy

    24 hours return without physical defect.

Product overview: 7009/7108/7015 Resistor Baths

7015

The 7015 has a 95-liter tank and a temperature range of 0 °C to 50 °C. It’s stable to ±0.0007 °C.

It has a one-piece stainless steel lid designed to drain spills and splashes back into the bath as you remove resistors. It has a large access opening to make handling large resistors, like the Thomas design standard resistors, easier. The tank has an electrically isolated resistor shelf.

This is truly a quality resistor bath, and it’s backed by our industry-leading service.

7009

This is a large bath with a tank 27½ inches long by 22 inches wide. It has a temperature range of 0 °C to 50 °C and a stability of ±0.0007 °C.

For a bath this size and with these specs, it is priced extremely well. The Model 7009’s large tank can handle many resistors of any size.

7108

This is the quietest resistor bath you’ve ever heard. The 7108 uses thermoelectric (Peltier) modules to provide heating and cooling over its range from 20 °C to 30 °C. Without a compressor, noise is dramatically reduced. Power requirements are also lower, so you save money running the bath and add less heat load to your lab.

With a 51-liter (13.2-gal) tank, the 7108 holds plenty of resistors. A large 14" x 14" (356 x 356 mm) access opening allows you to easily move resistors in and out of the bath. A resistor rack comes with each unit that fits across the bottom of the tank. Made from hard-anodized perforated aluminum, this rack maintains the necessary electrical isolation between your resistors.

Key Features

  • Three size options to accommodate any quantity of resistors.
  • High temperature stability to ±0.0007 °C.
  • Includes independent high- and low-temperature cutout circuit.
  • Minimizes long-term drift for consistent performance.
  • Proprietary controller that senses temperature changes as small as 0.00001 °C, improving stability.

Specifications: 7009/7108/7015 Resistor Baths

Specifications 7015 7009 7108
Range 0 °C to 50 °C† 0 °C to 50 °C† 20 °C to 30 °C
Stability at 25 °C ±0.0007 °C (water)
±0.001 °C (mineral oil 5011)		 ±0.002 °C (water)
±0.004 °C (mineral oil 5011)
Uniformity ±0.003 °C at 25 °C (water)
±0.005 °C at 25 °C (mineral oil 5011)		 ±0.005 °C (water)
±0.008 °C (mineral oil 5011)
Temperature Setting Digital display with push-button data entry
Set-Point Resolution 0.002 °C; high-resolution mode, 0.00003 °C
Display Resolution 0.01 °C
Digital Setting Accuracy ±1 °C ±0.5 °C
Digital Setting Repeatability ±0.01 °C
Heaters 500 and 1000 Watts Peltier heating/cooling
Cooling Capacity 100 to 200 Watts 100 W in ambient 23 °C
Access Opening 699 x 279 mm (27.5 x 11 in) 699 x 559 mm (27.5 x 22 in) 356 x 356 mm (14 x 14 in)
Bath Chamber Dimensions (HxWxD) (unobstructed space) 699 x 279 x 330 mm
(27.5 x 11 x 13 in)		 669 x 559 x 330 mm
(27.5 x 22 x 13 in)		 356 x 203 x 355 mm
(14 x 8 x 14 in)
Depth 330 mm (13 in) 203 mm (8 in)
Wetted Parts 304 stainless steel Tank: 304 stainless steel
Resistor rack: hard-anodized, perforated aluminum
Safety Cutout Factory-set high temperature n/a
Power 115 VAC (±10 %), 60 Hz, 15 A or 230 VAC, 50 or 60 Hz, 8 A, specify 230 VAC (±10 %), 50 or 60 Hz, 12 A (specify frequency) 115 VAC (±10 %), 50/60 Hz, 3 A or 230 VAC (±10 %), 50/60 Hz, 1.6 A, specify
Volume 95 liters (25 gallons) 167 liters (44 gallons) 51 liters (13.2 gallons)
Weight 141 kg (310 lb.) 150 kg (330 lb.) 35 kg (75 lb.)
Size (HxWxD) 1219 x 1118 x 559 mm
(48 x 44 x 22 in)		 1092 x 1130 x 864 mm
(43 x 44.5 x 34 in)		 489 x 413 x 559 mm
(19.25 x 22 x 25 in)
Automation Use the 1586A Super-DAQ to automate temperature sensor calibration
†Although the 7015 and 7009 baths are capable of reaching higher temperatures, they are designed for use with standard resistors. Therefore, the soft cutout of the instrument has been set at the factory to 50°C to protect standard resistors placed in the bath.
