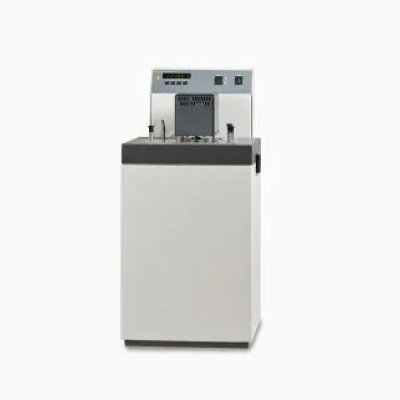

Product overview: 6020 High Temperature Calibration Oil Bath

Comparison calibrations require a heat source that’s stable and uniform, and for moderately high temperatures nothing provides a better heat source than a Fluke Calibration oil bath.

Fluke Calibration oil baths are stable to ±0.001 °C and do not require calibration blocks or use of special calibration techniques to achieve that stability. The specifications of all our baths are “true specifications representing the performance you can expect to achieve in your lab under your operating conditions. Other companies advertise specs that they know you will never see in your lab. When their baths fail to perform, they blame it on you.

Fluke Calibration baths are built using a unique tank design that guarantees the best uniformity possible in a liquid bath. This, coupled with the industry’s best-selling digital bath controller, achieves uncompromised performance and ease of use.

Not only does our digital controller have features like its “Super-Tweak high-resolution mode so you can dial in the exact temperatures you want, it also lets you completely automate the calibration process using your PC and our 9938 MET/TEMP II software.

You’ll love these baths, and once you’ve got one you’ll never buy anything else. There’s a bath to match any temperature range, depth, price, and performance you need.

Key Features

  • Stable, uniform heat sources for calibrations up to 300 °C.
  • Large-capacity tanks for higher productivity.
  • Built-in cooling coils for faster cooling.
  • Stability to ±0.001 °C.
  • High temperature oil bath (300 °C) with high capacity and deep immersion.
  • Excellent temperature stability (±0.003 °C) and uniformity (±0.004 °C).

Specifications: 6020 High Temperature Calibration Oil Bath

Specifications
Range 40 °C to 300 °C†
Stability ±0.001 °C at 40 °C (water)
±0.003 °C at 100 °C (oil 5012)
±0.005 °C at 300 °C (oil 5017)
Uniformity ±0.002 °C at 40 °C (water)
±0.004 °C at 100 °C (oil 5012)
±0.012 °C at 300 °C (oil 5017)
Temperature Setting Digital display with push-button data entry
Set-Point Resolution 0.01 °C; high-resolution mode, 0.00018 °C
Display
Temperature Resolution		 0.01 °C
Digital Setting Accuracy ±1 °C
Digital Setting Repeatability ±0.02 °C
Heaters 350 and 1050 watts
Access Opening
(call for custom openings)		 127 x 254 mm (5 x 10 in)
Depth 305 mm (12 in)
Wetted Parts 304 stainless steel
Power 115 VAC (±10 %), 50/60 Hz, 10 A or 230 VAC (±10 %), 50/60 Hz, 5 A, specify
Volume 27 liters (7.2 gallons)
Weight 32 kg (70 lb.)
Size (HxWxD) 648 x 406 x 508 mm (25.5 x 16 x 20 in)
Automation Package MetTemp II software and RS-232 computer interface are included for setting bath temperature via remote computer. For IEEE-488, add the 2001-IEEE.
†External cooling required for operation below 40 °C. Cooling coils are built into the bath walls. Tubing ports are accessible at the back of the bath for circulating chilled fluid or shop air to boost cooling.

Accessories: 6020 High Temperature Calibration Oil Bath

Calibration accessories (1)

  • 2070 | Bath Cart, 6020, 6022 (312 mm [12.3 in] H)

Other (1)

  • 2007 | Access Cover, 127 x 254 mm (5 x 10 in), Stainless Steel

Temperature probes (1)

  • 2620 |RTD Probe, 280 mm (11 in.)

Accessories: 6020 High Temperature Calibration Oil Bath

Calibration accessories (1)

  • 2070 | Bath Cart, 6020, 6022 (312 mm [12.3 in] H)

Other (1)

  • 2007 | Access Cover, 127 x 254 mm (5 x 10 in), Stainless Steel

Temperature probes (1)

  • 2620 |RTD Probe, 280 mm (11 in.)

Product overview: 6020 High Temperature Calibration Oil Bath

Comparison calibrations require a heat source that’s stable and uniform, and for moderately high temperatures nothing provides a better heat source than a Fluke Calibration oil bath.

Fluke Calibration oil baths are stable to ±0.001 °C and do not require calibration blocks or use of special calibration techniques to achieve that stability. The specifications of all our baths are “true specifications representing the performance you can expect to achieve in your lab under your operating conditions. Other companies advertise specs that they know you will never see in your lab. When their baths fail to perform, they blame it on you.

Fluke Calibration baths are built using a unique tank design that guarantees the best uniformity possible in a liquid bath. This, coupled with the industry’s best-selling digital bath controller, achieves uncompromised performance and ease of use.

Not only does our digital controller have features like its “Super-Tweak high-resolution mode so you can dial in the exact temperatures you want, it also lets you completely automate the calibration process using your PC and our 9938 MET/TEMP II software.

You’ll love these baths, and once you’ve got one you’ll never buy anything else. There’s a bath to match any temperature range, depth, price, and performance you need.

Key Features

  • Stable, uniform heat sources for calibrations up to 300 °C.
  • Large-capacity tanks for higher productivity.
  • Built-in cooling coils for faster cooling.
  • Stability to ±0.001 °C.
  • High temperature oil bath (300 °C) with high capacity and deep immersion.
  • Excellent temperature stability (±0.003 °C) and uniformity (±0.004 °C).

Specifications: 6020 High Temperature Calibration Oil Bath

Specifications
Range 40 °C to 300 °C†
Stability ±0.001 °C at 40 °C (water)
±0.003 °C at 100 °C (oil 5012)
±0.005 °C at 300 °C (oil 5017)
Uniformity ±0.002 °C at 40 °C (water)
±0.004 °C at 100 °C (oil 5012)
±0.012 °C at 300 °C (oil 5017)
Temperature Setting Digital display with push-button data entry
Set-Point Resolution 0.01 °C; high-resolution mode, 0.00018 °C
Display
Temperature Resolution		 0.01 °C
Digital Setting Accuracy ±1 °C
Digital Setting Repeatability ±0.02 °C
Heaters 350 and 1050 watts
Access Opening
(call for custom openings)		 127 x 254 mm (5 x 10 in)
Depth 305 mm (12 in)
Wetted Parts 304 stainless steel
Power 115 VAC (±10 %), 50/60 Hz, 10 A or 230 VAC (±10 %), 50/60 Hz, 5 A, specify
Volume 27 liters (7.2 gallons)
Weight 32 kg (70 lb.)
Size (HxWxD) 648 x 406 x 508 mm (25.5 x 16 x 20 in)
Automation Package MetTemp II software and RS-232 computer interface are included for setting bath temperature via remote computer. For IEEE-488, add the 2001-IEEE.
†External cooling required for operation below 40 °C. Cooling coils are built into the bath walls. Tubing ports are accessible at the back of the bath for circulating chilled fluid or shop air to boost cooling.

Accessories: 6020 High Temperature Calibration Oil Bath

Calibration accessories (1)

  • 2070 | Bath Cart, 6020, 6022 (312 mm [12.3 in] H)

Other (1)

  • 2007 | Access Cover, 127 x 254 mm (5 x 10 in), Stainless Steel

Temperature probes (1)

  • 2620 |RTD Probe, 280 mm (11 in.)

Accessories: 6020 High Temperature Calibration Oil Bath

Calibration accessories (1)

  • 2070 | Bath Cart, 6020, 6022 (312 mm [12.3 in] H)

Other (1)

  • 2007 | Access Cover, 127 x 254 mm (5 x 10 in), Stainless Steel

Temperature probes (1)

  • 2620 |RTD Probe, 280 mm (11 in.)
