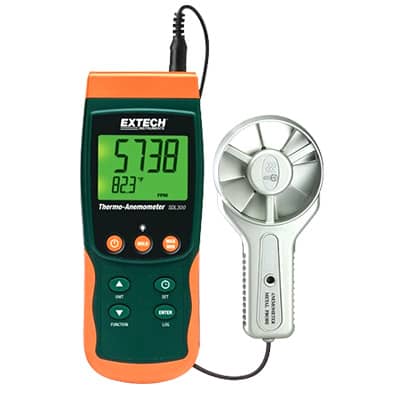

Extech SDL300 Metal Vane Thermo-Anemometer/Datalogger:
The SDL300 records data on an SD card in Excel format. Metal Vane withstands temperatures to 158°F (70°C) and air velocity to 6900ft/min. Datalogger date/time stamps and stores readings on an SD card in Excel format for easy transfer to a PC. Adjustable data sampling rate from 1 to 3600 seconds. Stores 99 readings manually and 20M readings via 2G SD card. Type K/J Thermocouple input for high-temperature measurements. Large (9999 count) LCDs Air Velocity and Temperature simultaneously. 2% velocity accuracy via low friction ball bearing vane wheel on 39" (1m) cable. Record/Recall MIN, MAX, Data Hold, Auto Power Off. Complete with 6 x AA batteries, SD card, metal vane sensor with 3.9ft (120cm) cable, and hard carrying case.
Are you looking for the best Air Flow Meter? Indeed, you are in the right position at this moment. Given that Tools Bangladesh offers testing supplies and testing equipment, As a result, you may affordably get your preferred tool from us in Bangladesh with the best delivery service.
Specifications
General Specifications
Air Velocity (ft/min) 60 to 6900ft/min
Air Velocity (ft/min) Basic Accuracy ±2% of reading
Air Velocity (ft/min) Max Resolution 1ft/min
Air Velocity (km/h) 1.0 to 126.0km/h
Air Velocity (km/h) Basic Accuracy ±2% of reading
Air Velocity (km/h) Max Resolution 0.1km/h
Air Velocity (knots) 0.6 to 68knots
Air Velocity (knots) Basic Accuracy ±2% of reading
Air Velocity (knots) Max Resolution 0.1knots
Air Velocity (m/s) 0.4 to 35m/s
Air Velocity (m/s) Basic Accuracy ±2% of reading
Air Velocity (m/s) Max Resolution 0.1m/s
Air Velocity (mph) 0.7 to 78.2MPH
Air Velocity (mph) Basic Accuracy ±2% of reading
Air Velocity (mph) Max Resolution 0.1MPH
Memory 20M data records using 2G SD card
Temperature (Air) 32 to 158 °F (0 to 70 °C)
Temperature (Air) Basic Accuracy ±1.5°F/0.8°C (<60°C)
Temperature (Air) Max Resolution 0.1 °
Temperature (Type J) Basic Accuracy -148 to 2192 °F (-100 to 1200 °C)
Temperature (Type J) Max Resolution ±(0.4% + 1.8°F/1°C)
Temperature (Type K) Basic Accuracy 0.1°
Temperature (Type K) Max Resolution -148 to 2372 °F (-100 to 1300 °C)
Temperature (Type N) ±(0.4% of reading + 1.8°F/1°C)
Temperature (Type N) Basic Accuracy 0.1°
Additional Details
Certifications CE
Dimensions
7.2 × 2.9 × 1.9" (182 × 73 × 47.5mm)
Power 6 × AA (1.5V) batteries
Warranty 3 years
Weight 17.2oz (487g)
