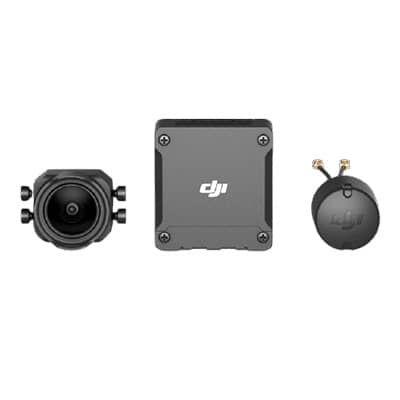

DJI O3 Air Unit

Key Features:

• 30 ms 10 km Digital Video Transmission
• 1080p/100fps H.265 Video Transmission
• 4K/60fps Video
• 155° Super-Wide FOV

Specifications:

Camera

• Sensor

• 1/1.7-inch CMOS
  Effective Pixels: 48 MP

• Lens

• FOV: 155°
  Equivalent Focal Length: 12.7 mm
  Focal Length: 2.34 mm
  Aperture: f/2.8
  Focus Mode: FF
  Focus Range: 0.6 m to ∞

• ISO Range

• 100-6400 (Auto)
  100-25600 (Manual)

• Shutter

• Rolling Shutter

• FOV

• 155°

• Video Resolution

• With DJI Goggles 3/DJI Goggles Integra/DJI Goggles 2:
  4K@30/50/60/100/120fps
  2.7K@30/50/60/100/120fps
  1080p@30/50/60/100/120fps

  With DJI FPV Goggles V2:
  4K@30/50/60/100/120fps
  2.7K@30/50/60/100/120fps
  1080p@30/50/60/100/120fps

• Video Format

• MP4

• EIS

• Supports RockSteady

• Weight

• Approx. 8.3 g (coaxial cable included)

Air Unit

• Weight

• Air Unit (camera module excluded): Approx. 28 g
  Air Unit (camera module included): Approx. 36.4 g
  Antenna: Approx. 3 g

• Dimensions

• Transmission Module (L×W×H): 32.5×30.5×14.5 mm
  Camera Module (L×W×H): 21.2×20×19.5 mm
  Coaxial Cable: 115 mm
  3-in-1 Cable: 100 mm
  Antenna: 85 mm

• Communication Frequency

• 2.400-2.4835 GHz (RX only)
  5.725-5.850 GHz (RX and TX) [1]

• Transmission Power (EIRP)

• FCC: < 33 dBm
  CE: < 14 dBm
  SRRC: < 30 dBm

• End-to-End Latency [2]

• With DJI Goggles 3/DJI Goggles Integra/DJI Goggles 2:
  1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.
  1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.

  With DJI FPV Goggles V2:
  810p/120fps Video Transmission Quality: The latency is lower than 28 ms.
  810p/60fps Video Transmission Quality: The latency is lower than 40 ms.

• Max Video Transmission Range [3]

• 10 km (FCC), 2 km (CE), 6 km (SRRC)

• Supported Flight Control System

• The DJI O3 Air Unit supports Betaflight 4.3.0 and higher versions.

• Input Voltage

• 7.4-26.4 V

• Operating Temperature

• -10º to 40º C (14° to 104° F)

• Channels

• Supports auto mode
  Supports manual mode: 40 MHz: 1 channel; 20 MHz: 3 channels; 10 MHz: 3 channels

• Channels Info

• FCC/SRRC/CE:
  40 MHz:
  Channel 1: 5794.5 MHz

  20 MHz/10 MHz:
  Channel 1: 5768.5 MHz
  Channel 2: 5804.5 MHz
  Channel 3: 5839.5 MHz

• Supported SD Cards

• microSD (up to 256 GB)

• Recommended microSD Cards

• SanDisk Extreme U3 V30 A1 32GB microSDXC
  SanDisk Extreme Pro U3 V30 A1 32GB microSDXC
  Kingston Canvas Go!Plus U3 V30 A2 64GB microSDXC
  Kingston Canvas React Plus U3 V90 A1 64GB microSDXC
  Kingston Canvas React Plus U3 V90 A1 128GB microSDXC
  Kingston Canvas React Plus U3 V90 A1 256GB microSDXC
  Samsung PRO Plus V30 U3 V30 A2 256GB microSDXC

• Supported DJI Goggles

• DJI Goggles 3, DJI Goggles Integra, DJI Goggles 2, and DJI FPV Goggles V2

• Supported DJI Remote Controller

• DJI FPV Remote Controller 3 and DJI FPV Remote Controller 2

DJI Goggles 2

• Model

• RCDS18

• Weight

• Approx. 290 g (headband included)

• Dimensions

• With antennas folded: 167.40×103.90×81.31 mm
  With antennas unfolded: 196.69×103.90×104.61 mm

• Screen Size (single screen)

• 0.49-inch

• Resolution (single screen)

• 1920×1080

• Refresh Rate

• Up to 100 Hz

• Interpupillary Distance Range

• 56-72 mm

• Diopter Adjustment Range

• -8.0 D to +2.0 D

• FOV (single screen)

• 51°

• Communication Frequency

• 2.400-2.4835 GHz
  5.725-5.850 GHz [1]

• Transmission Power (EIRP)

• 2.4 GHz: < 30 dBm (FCC), < 20 dBm (CE/SRRC/KC)
  5.8 GHz [1]: < 30 dBm (FCC), < 23 dBm (SRRC), < 14 dBm (CE/KC)

• Wi-Fi Protocol

• Wi-Fi 802.11b/a/g/n/ac

• Wi-Fi Communication Frequency

• 2.400-2.4835 GHz
  5.150-5.250 GHz (indoor use only) [4]
  5.725-5.850 GHz [1]

• Wi-Fi Transmission Power (EIRP)

• 2.4 GHz: < 20 dBm (FCC/CE/SRRC/KC)
  5.1 GHz [4]: < 20 dBm (FCC/CE/KC)
  5.8 GHz [1]: < 20 dBm (FCC/SRRC/KC), < 14 dBm (CE)

• Bluetooth Protocol

• Bluetooth 5.2

• Bluetooth Communication Frequency

• 2.400-2.4835 GHz

• Bluetooth Transmitter Power (EIRP)

• < 8 dBm

• Max Video Transmission Bitrate [5]

• 50 Mbps

• Video Recording Format

• MOV

• Supported Video and Audio Playback Formats

• MP4 and MOV (video coding formats: H.264 and H.265; audio format: ACC, PCM)

• Wi-Fi Wireless Streaming

• Supports DLNA Protocol

• Operating Temperature

• -10° to 40° C (14° to 104° F)

• Power Input

• DJI Goggles 2 Battery

• Supported SD Cards

• microSD (up to 256 GB)

DJI Goggles 2 Battery

• Capacity

• 1800 mAh

• Voltage

• 7-9 V (1.5 A)

• Type

• Li-ion

• Chemical System

• LiNiMnCoO2

• Energy

• 18 Wh

• Charging Temperature

• 0° to 45° C (32° to 113° F)

• Max Charging Power

• 12.6 W (5 V/2 A, 9 V/1.4 A)

• Weight

• Approx. 122 g

• Dimensions (L×W×H)

• 73.04×40.96×26 mm

• Operating Time

• Approx. 2 hours

DJI FPV Goggles V2

• Model

• FGDB28
