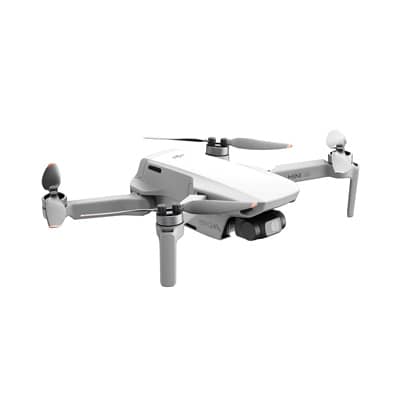

DJI Mini 4K

Key Features:

• Under 249 g
• 4K/30fps Video
• 4× Digital Zoom
• 10km Video Transmission
• 31-Min Max Flight Time
• Stable Hovering
• Return to Home
• Beginner Guide
• QuickShots, Panorama
• 38kph (Level 5) Wind Resistance

Specifications:

Aircraft

• Takeoff Weight

• 246 g

  ‌Standard aircraft weight (including the Intelligent Flight Battery, propellers, and a microSD card). The actual product weight may vary due to differences in batch materials and external factors. Training or examination is not required for flying this product in most countries and regions. Always check local laws and regulations before use.‌‌‌‌‌

• Dimensions

• Folded (without propellers): 138×81×58 mm (L×W×H)
  Unfolded (with propellers): 245×289×56 mm (L×W×H)

• Max Flight Distance

• 15.7 km

• Max Ascent Speed

• 5 m/s

• Max Descent Speed

• 3.5 m/s

• Max Horizontal Speed (at sea level, no wind)

• 16 m/s

  The max horizontal speed is subject to dynamic local restrictions. Please abide by local laws and regulations when flying.

• Max Takeoff Altitude

• 4000 m

  2000 m when taking off with propeller guards.

• Max Flight Time

• 31 minutes

  Measured in a controlled test environment. Specific test conditions are as follows: flying forward at a constant speed of 17 kph in a windless laboratory environment, in photo mode (without photo taking operation during flight), and from 100% battery level until 0%. Results may vary depending on the environment, actual use, and firmware version.

• Max Wind Speed Resistance

• 10.7 m/s (Level 5)

• Max Pitch Angle

• 40°

• Operating Temperature

• 0° to 40° C (32° to 104° F)

• Global Navigation Satellite System

• GPS + GLONASS + Galileo

• Hovering Accuracy Range

• Vertical:
  ±0.1 m (with vision positioning)
  ±0.5 m (with GNSS positioning)

  Horizontal:
  ±0.3 m (with vision positioning)
  ±1.5 m (with GNSS positioning)

• Internal Storage

• N/A

• Class

• C0 (EU)

Camera

• Image Sensor

• 1/2.3-inch CMOS, Effective Pixels: 12 MP

• Lens

• FOV: 83°
  Format Equivalent: 24 mm
  Aperture: f/2.8
  Focus: 1 m to ∞

• ISO Range

• Video:
  100-3200

  Photo:
  100-3200

• Shutter Speed

• Electronic Shutter: 4-1/8000 s

• Max Image Size

• 4000×3000

• Still Photography Modes

• Single Shot: 12 MP
  Timed: 12 MP
  JPEG: 2/3/5/7/10/15/20/30/60 s
  JPEG + RAW: 5/7/10/15/20/30/60 s
  Automatic Exposure Bracketing (AEB): 12 MP, 3 frames at 2/3 EV step
  Panorama: Sphere, 180°, and Wide Angle

• Photo Format

• JPEG/DNG (RAW)

• Video Resolution

• DJI Mini 4K:
  4K: 3840×2160@24/25/30fps
  2.7K: 2720×1530@24/25/30/48/50/60fps
  FHD: 1920×1080@24/25/30/48/50/60fps

  DJI Mini 2 SE:
  2.7K: 2720×1530@24/25/30fps
  FHD: 1920×1080@24/25/30/48/50/60fps

• Video Format

• MP4 (MPEG-4 AVC/H.264)

• Max Video Bitrate

• DJI Mini 4K: 100Mbps
  DJI Mini 2 SE: 40Mbps

• Supported File System

• FAT32 (≤ 32 GB)
  exFAT (> 32 GB)

• Digital Zoom

• DJI Mini 4K:
  4K: 2×
  2.7K: 3×
  FHD: 4×

  DJI Mini 2 SE:
  2.7K: 3×
  FHD: 4×

• Color Mode

• Normal

• QuickShots Modes

• Dronie, Helix, Rocket, Circle, and Boomerang

Gimbal

• Stabilization

• 3-axis mechanical gimbal (tilt, roll, and pan)

• Mechanical Range

• Tilt: -110° to 35°
  Roll: -35° to 35°
  Pan: -20° to 20°

• Controllable Range

• Tilt:
  -90° to 0° (default)
  -90° to 20° (extended)

• Max Control Speed (tilt)

• 100°/s

• Angular Vibration Range

• ±0.01°

Sensing

• Downward

• Precise Hovering Range: 0.5-10 m

• Operating Environment

• Downward:
  surfaces with discernible patterns, diffuse reflectivity >20% (e.g., walls, trees, people), and adequate lighting (lux >15)

Video Transmission

• Video Transmission System

• DJI O2

• Live View Quality

• Remote Controller:
  720p/30fps

• Operating Frequency

• 2.400-2.4835 GHz
  5.725-5.850 GHz

• Transmitter Power (EIRP)

• 2.400-2.4835 GHz:
  < 26 dBm (FCC)
  < 20 dBm (CE/SRRC/MIC)

  5.725-5.850 GHz:
  < 26 dBm (FCC/SRRC)
  < 14 dBm (CE)

• Max Transmission Distance (free of interference)

• FCC: 10 km
  CE: 6 km
  SRRC: 6 km
  MIC: 6 km

  Measured in an unobstructed outdoor environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. During your flight, please pay attention to RTH reminders in the DJI Fly app.

• Max Transmission Distance (with interference)

• Strong Interference: urban landscape, approx. 1.5-3 km
  Medium Interference: suburban landscape, approx. 3-6 km
  Low Interference: suburb/seaside, approx. 6-10 km

  Data tested under FCC standard in unobstructed environments with typical interference. Used for reference purposes only and provides no guarantee for actual flight distance.

• Lowest Latency

• Approx. 200 ms

  Depending on the actual environment and mobile device.

Battery

• Capacity

• 2250 mAh

• Weight

• 82.5 g

• Nominal Voltage

• 7.7 V

• Max Charging Voltage

• 8.8 V

• Type

• Li-ion

• Energy

• 17.32 Wh

• Charging Temperature

• 5° to 40° C (41° to 104° F)

Battery Charging Hub

• Input

• 5 V, 3 A
  9 V, 3 A
  12 V, 3 A

• Output

• USB-A:
  Max Voltage: 5 V; Max Current: 2 A

• Charging Type

• Three batteries charged in sequence

Storage

• Recommended microSD Cards

• 16 GB:
  SanDisk Extreme

  32 GB:
  Samsung PRO Endurance
  Samsung EVO Plus
  SanDisk Industrial
  SanDisk Extreme V30 A2
  SanDisk Extreme Pro V30 A1
  SanDisk Extreme Pro V30 A2
  Lexar 633x
  Lexar 667x

  64 GB:
  Samsung PRO Endurance
  Samsung EVO Plus
  SanDisk Extreme V30 A1
  SanDisk Extreme V30 A2
  Lexar 633x
  Lexar 667x
  Lexar 1000x
  Lexar High Endurance
  Toshiba EXCERIA M303 V30 A1
  Netac Pro V30 A1

  128 GB:
  Samsung EVO Plus
  SanDisk Extreme V30 A2
  SanDisk Extreme Plus V30 A1
  SanDisk Extreme Plus V30 A2
  Lexar 633x
  Lexar 667x
  Lexar 1000x
  Lexar High Endurance
  Toshiba EXCERIA M303 V30 A1
  Netac Pro V30 A1

  256GB:
  SanDisk Extreme V30 A2

Remote Controller

• Max Operating Time

• DJI Mini 2 SE：
  DJI RC-N1 Remote Controller:
  Without Charging Any Mobile Device: 6 hours
  When Charging a Mobile Device: 4 hours

  DJI Mini 4K：
  DJI RC-N1C Remote Controller:
  Without Charging Any Mobile Device: 4 hours
  When Charging a Mobile Device: 2 hours

• Max Supported Mobile Device Size

• DJI RC-N1 Remote Controller, DJI RC-N1C Remote Controller
  180×86×10 mm (L×W×H)

• Operating Temperature

• DJI RC-N1 Remote Controller, DJI RC-N1C Remote Controller
  -10° to 40° C (14° to 104° F)

• Transmitter Power (EIRP)

• DJI RC-N1 Remote Controller, DJI RC-N1C Remote Controller
  2.400-2.4835 GHz:
  < 26 dBm (FCC)
  < 20 dBm (CE/SRRC/MIC)

  5.725-5.850 GHz:
  < 26 dBm (FCC)
  < 23 dBm (SRRC)
  < 14 dBm (CE)
