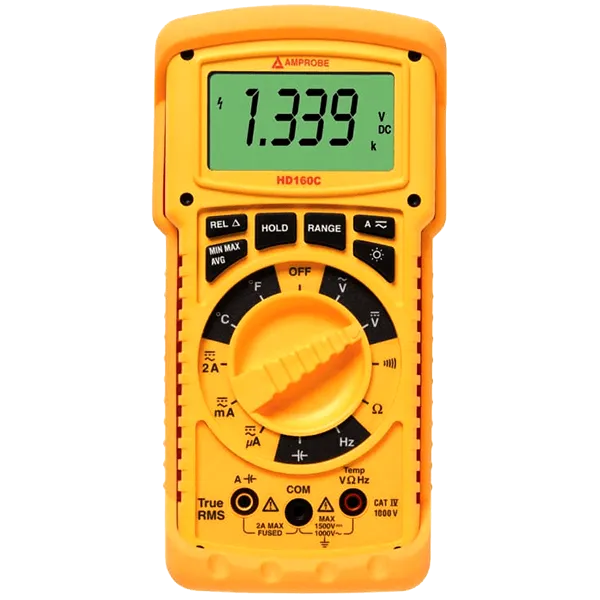

Model: Amprobe HD160C IP67 Heavy-Duty True-RMS Multimeter with Temperature
Amprobe HD160C IP67 Heavy-Duty Multimeter is the best multimeter in the market which is rugged reliable and 100% trusted. Search for the best distributor in Bangladesh.
The Amprobe HD160C Heavy Duty Multimeter is intended for professional use in quick environments. It's made using waterproof construction to prevent dirt, grime, and moisture from entering the battle and causing inaccurate readings or damaging shorts.
Built after a tough, ember-retardant thermoplastic that is resistant to grease and chemical spills and considering astonishment-mounted components that are slip-resistant to at least 8 feet, the Amprobe HD160C is unusually rugged and honourable.
It has a lengthy voltage measurement aptitude of 1500V DC and 1000V AC, unmatched by any supplementary extraction of digital multimeters. The outstretched voltage ranges can withstand transients taking place to 12 kV, and it plus events temperature.
Are you searching for the best distributor for it? The answer is Tools Bangladesh is best.
Key Features: Amprobe HD160C IP67 Heavy Duty True-RMS Multimeter with Temperature
- Highest voltage capability, measuring to 1500V DC and 1000V AC
- CAT IV 1000V rated
- Special sealing for environment and water resistance. IP67 rated
- Constructed with drop-resistant housing and PCB mounting
- Measures capacitance, temperature, and frequency
- Superior 10,000 count resolution with bar graph
- Magne-Grip™ holster frees both hands for work
- Includes high voltage test leads with threaded alligator clips
- Temperature measurement built-in
- Frequency and capacitance
- Digi-Glo™ bright backlight
- Display 4 digit LCD, 9999 counts, with annunciators, menu features and 41 segment bargraph.
- Polarity indication automatic
- Input overload indication OL, -OL.
- Auto power-down
Specifications: Amprobe HD160C IP67 Heavy Duty True-rms Multimeter with Temperature
| FEATURE |
HD-110C |
HD-160C |
| DC Voltage |
200.0 mV, 2.000 V, 20.00 V, 200.0 V, 1500 V |
1000.0 mV, 10.000 V, 100.00 V, 1500.0 V |
| AC Voltage |
200.0 mV, 2.000 V, 20.00 V, 200.0 V, 1000 V |
1000.0 mV, 10.000 V, 100.00 V, 1000.0 V |
| Current |
AC/DC 200.0 µA, 2.000 mA, 20.00 mA, 200.0 mA, 2 A |
100.00 µA, 1000.0 µA, 10.000 mA, 100.00 mA, 400.0 mA, 2.000 A |
| Resistance |
200.0 O, 2.000 kO, 20.00 kO, 200.0 kO, 2.000 MO, 20.00 MO |
1000.0 O, 10.00 kO, 100.00 kO, 1000.0 kO, 10.000 MO, 40.00 MO |
| Diode |
• |
– |
| Continuity |
• |
| Frequency |
– |
100.00 Hz, 1000.0 Hz, 10.000 kHz, 100.00 kHz, 1000.0 kHz, 10.000 M Hz |
| Capacitance |
– |
40.00 nF, 400.0 nF, 4.000 µF, 40.00 µF, 400.0 µF |
| Temperature |
– |
-4 °F → 2372 °F (-20 °C → 1300°C) |
| True-rms |
– |
• |
| Specifications |
| DC Volts range: |
1000 mV, 10 V, 100 V, 1500 V |
| DC Volts resolution: |
0.1 mV in 1000 mV range |
| DC Volts accuracy: |
±(0.1 % rdg + 5 dgt) |
| DC Volts input impedance: |
10 MO |
| DC Volts CMRR: |
>120 dB up to 1500 V dc |
| DC Volts NMRR: |
>60 dB at 50 or 60 Hz |
| DC Volts OL protection: |
1500 V dc or 1000 V ac rms |
| DC Volts transient protection: |
12 kV impulse (1.2 µS/50 µS) based on EN 61010-1:2001 impulse requirement for at CAT IV 1000 V/1500V dc product. This product should not be used in installations |
| AC Volts True-rms range: |
1000 mV, 10 V, 100 V, 1000 V |
| AC Volts True-rms resolution: |
0.1 mV in 1000 mV range |
| AC Volts True-rms accuracy: |
1000 mV (45 Hz to 400 Hz) ± (1.2 % rdg + 10 dgt) |
| AC Volts True-rms accuracy: |
10 V, 100 V (45 Hz to 500 Hz) ± (1.2 % rdg + 10 dgt) |
| AC Volts True-rms accuracy: |
10 V, 100 V (500 Hz to 2 kHz) ± (2.0 % rdg + 10 dgt) |
| AC Volts True-rms accuracy: |
1000 V (45 Hz to 1 kHz) ± (2.0 % rdg + 10 dgt) |
| AC Volts True-rms input impedance: |
10 MO |
| AC Volts True-rms conversion type: |
True-rms, AC coupled 5 % to 100 % of range |
| AC Volts True-rms crest factor: |
= 3 |
| AC Volts True-rms OL protection: |
1500 V dc or 1000 V ac rms |
| Transient protection: |
12 kV impulse (1.2 µS/50 µS) based on EN 61010-1:2001 impulse requirement for at CAT IV 1000 V product. This product should not be used in installations where transients exceed 12 kV |
| DC Current range: |
100 µA, 1000 µA, 10mA, 100mA, 400mA, 2A (Auto/Manual ranging) |
| DC Current resolution: |
0.01µA in 100 µA range |
| DC Current accuracy: |
100 µA range ± (0.5% rdg + 10 dgts) |
| DC Current accuracy: |
1000 µA to 400 mA ranges ± (0.5% rdg + 5 dgts) |
| DC Current accuracy: |
2 A range ± (1.5% rdg + 10 dgts) |
| DC Current input protection: |
2 A/1500 V fast blow ceramic fuse 8×65 mm on A input , FP700 |
For complete specs please download the product datasheet under the “Resources” tab.
Includes: Amprobe HD160C IP67 Heavy Duty True-rms Multimeter with Temperature
- Measures 1500 VDC
- CAT IV 1000 V
- IP67 Rated
- Temperature, Frequency & Capacitance
- Magne-Grip™ holster with magnetic hanging strap
- Rugged autoranging meter with true-rms
- Digi-Glo bright backlight
