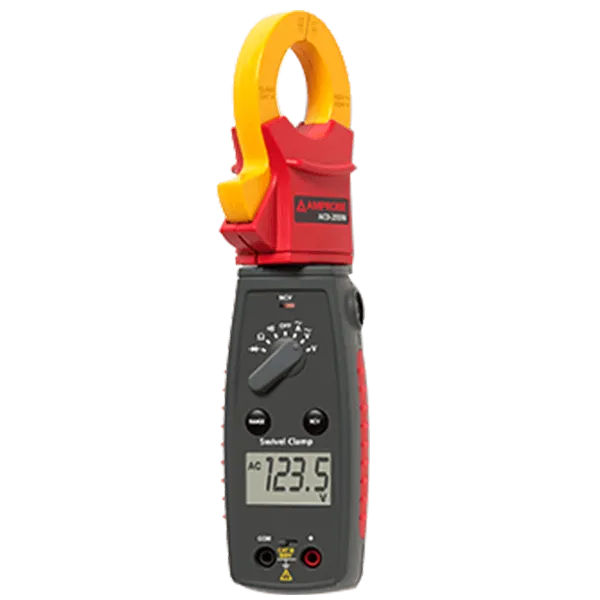

Amprobe ACD-20SW Swivel Clamp Meter with VoltTect trade is 180 degrees rotating head for the perfect display viewing. You can buy it with the lowest price from the best distributor of Bangladesh.
mprobes adding Amprobe ACD-20SW Swivel Clamp Meter features a patented 180-degree rotating head clamp design allowing easy views of measurements in tight or inconvenient to achieve places.
Simply rotate the body of the clamp meter to profit an unobstructed view of the LCD display. Feature active, measuring AC/DC currents, voltage, resistance and capacitance as swiftly as CAT III 600V safety ratings make this clamp not quite meter something you should swivel to see.
Measures AC current up to 400 AC A, AC/DC voltage up to 600V, resistance and capacitance. This demandable product you can find from Iconic Engineering. On-time free delivery in Bangladesh.
Key Features: Amprobe ACD-20SW Swivel Clamp Meter with VoltTect trade
- 180 degree rotating head for the perfect display viewing
- Advanced VoltTect™ non-contact voltage detection
- Slim jaw design with one-hand operation
- Measures AC current up to 400 AC A, AC/DC voltage up to 600V, resistance, and capacitance
- Audible continuity
- Temperature measurement
- Audible continuity
- Auto power off
- Auto and manual ranging respectively for quick checks and precise measurements
- Data hold
- Diode test
- Accommodates conductors up to 1.18 (30mm) in diameter
- Test leads, battery (installed), users manual, carrying case are included with the product
Specifications: Amprobe ACD-20SW Swivel Clamp Meter with VoltTect trade
| FEATURE |
ACD-20SW |
ACD-21SW |
ACD-21SWC* |
ACD-22SW |
ACD-23SW |
BEST ACCURACY |
| TRMS |
– |
– |
– |
• |
• |
– |
| AC Current |
40.00 A , 400.0 A |
+/- (2.0 % rdg + 10 dgts)
50 Hz → 60 Hz |
| AC Voltage |
4.000 V, 40.00 V, 400.0 V, 600.0 V |
+/- (1.2% rdg + 8 dgts)
→ 400 V Hz |
| DC Voltage |
400.0 mV, 4.000 V, 40.00 V, 400.0 V, 600.0 V |
+/- (0.5% rdg + 2 dgts) |
| Resistance |
400.0 ?, 4.000 k?, 40.00 k?, 400.0 k?, 4.000 M?, 40.00 M? |
+/- (1.0% rdg + 4 dgts) at 400 ? → 400 k? ranges |
| Capacitance |
– |
4.000 µF, 40.00 µF,
400.0 µF, 4,000 µF |
– |
4.000 µF, 40.00 µF,
400.0 µF, 4,000 µF |
+/- (3.0 % rdg + 15 dgts)
on 40 µF → 400 µF ranges |
| Temperature |
– |
-30 °F → 400 °F |
-35 °C → 400 °C |
– |
-30 °F →400 °F, (-35 °C → 400 °C) |
+/- (1 % + 2 °F) -4 °F → 400 °F
+/- (1 % + 1 °C) 0 °C → 200 °C |
| Diode test |
• |
– |
– |
– |
– |
– |
| VolTect™ non-contact voltage detection |
70 V → 600 VAC (50 Hz → 60 Hz) |
– |
| Backlight |
– |
– |
– |
• |
• |
– |
| Accommodates conductors |
Up to 1.18″ (30 mm) in diameter |
| Specifications |
| Display: |
3¾ digit liquid crystal display (LCD) with a maximumreading of 3999 |
| Polarity: |
Automatic, positive implied, negative polarityindication |
| Overrange: |
(OL) or (-OL) is displayed |
| Zero: |
Automatic |
| Measurement rate: |
2 times per second, nominal |
| Accuracy: |
Stated accuracy at 74°F ±8°F, <75% relativehumidity. |
| Jaw opening capability: |
30mm (1.18 in) conductor. |
| Power: |
1.5 volt battery x2, R03/SIZE AAA. |
| DC volts ranges: |
400mV, 4V, 40V, 400V, 600V |
| Accuracy: |
±(0.5% rdg + 2 dgts) |
| AC Volts (50hz – 500hz) ranges: |
4V, 40V, 400V, 600V |
| Accuracy: |
±(1.2% rdg + 5 dgts) ±(1.5% rdg + 5 dgts) on 600V range |
| AC Current (50hz – 60hz) ranges: |
40A , 400A |
| Accuracy: |
±(2.0% rdg + 6 dgts) 50 ~ 60Hz |
| Resistance ranges: |
400O, 4kO, 40kO, 400kO, 4MO, 40MO |
| Accuracy: |
±(1.0% rdg + 4 dgts) on 400O to 400kO ranges |
| Accuracy: |
±(1.5% rdg + 4 dgts) on 4MOrange |
| Accuracy: |
±(3.0% rdg + 5 dgts) on 40MO range |
| Continuity range: |
400O |
| Diode test current: |
1.2mA (approximate) |
| Accuracy: |
±(3.0% rdg + 3 dgts) |
| Non-contact voltage indicator: |
Sense voltage 70V to 600VAC (50Hz ~ 60Hz) beeper chirps and big bright red LED comes on, works when meter dial is on any ranges. |
For complete specs please download the product datasheet under the “Resources” tab.
Includes: Amprobe ACD-20SW Swivel Clamp Meter with VoltTect trade
- 180 degree rotating head for the perfect display viewing
- Advanced VoltTect non-contact voltage detection
- Slim jaw design with one-hand operation
Accessories: Amprobe ACD-20SW Swivel Clamp Meter with VoltTect trade
- Test leads,
- Battery (installed),
- Users manual,
- Carrying case
