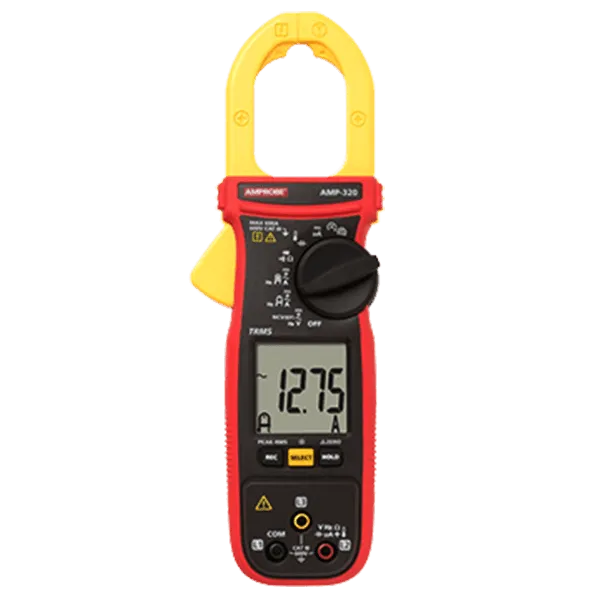

Amprobe-320 600A AC/DC TRMS Motor Maintenance Clamp Meter is Features True-RMS sensing for accurate voltage measurements in noisy electrical environments.
Whether you dependence an amp clamp for HVAC, general electrical or motor psychoanalysis applications, The Amprobe AMP-320 Clamp Meter, gone its large backlit display, has the features you compulsion. HVAC technicians will locate the temperature and capacitance measurements they need toin DC Microamps for breakdown ember sensors.
It had core motor psychotherapy capabilities such as motor rotation, 3-phase sequence psychotherapy, and inrush current measurement for motor begin-taking place monitoring. The low buildup filter allows you to swiftly acquit yourself current and voltage on the subject of modifiable frequency drives.
The Amp-Tip be sprightly allows for precise measurement of current the length of to the tenth of an Amp, enabling accurate, urrent measurement of both large and little diameter wires. It in addition to offers a full range of affable ample multimeter features, including AC/DC current, AC/DC voltage, frequency, True-RMS, non-response voltage detection, resistance, continuity and a CAT III 600 V safety rating.
Iconic Engineering is giving multiple features that are working accurately and it's possible to find out better output.
Key Features: AMP-320 600A AC/DC TRMS Motor Maintenance Clamp Meter
- Measures AC/DC Current to 600 A and AC/DC Voltage to 600 V
- Measures temperature from -40° to 752°F, (-40° to 400°C)
- Measures DC Microamps output to test proper operation of the flame sensor on gas appliances
- Measures capacitance, test diodes, and features a continuity beeper
- Tests 3-phase sequence and motor rotation to ensure proper connection of a motor to a 3-phase system
- Monitors inrush current during motor start-up
- Features True-RMS sensing for accurate voltage measurements in noisy electrical environments
- Amp-Tip function delivers precise low AC current measurements – 0 to 60 A
- Includes a low pass filter to accurately measure voltage and current on variable frequency drives
- Provides resistance and continuity measurement capabilities to verify the quality of electrical connections and the proper operation of motor and transformer coils
- Provides data hold, relative zero, and MAX/MIN/AVG mode for quick analysis
- Maximizes battery life with auto power off and low battery indicator
- Backlit display for easy measurement viewing in bright and dim environments
- CAT III 600 V safety rated
- Accommodates conductors up to 1.37 inches (35 mm)
- Includes test leads, batteries (installed), alligator clip set, banana plug K-type thermocouple, carrying case, and user manual
Specifications: AMP-320 600A AC/DC TRMS Motor Maintenance Clamp Meter
| FEATURE |
AMP-210 |
AMP-220 |
AMP-310 |
AMP-320 |
AMP-330 |
| AC voltage (True-rms) |
Range: |
0 to 600.0 V |
0 to 1000.0 V |
| Accuracy: |
±1.0% + 5LSD (50 to 60 Hz) |
±0.8% + 5LSD (50 to 60 Hz) |
| DC voltage |
Range: |
0 to 600.0 V |
| Accuracy: |
±1.0% + 5LSD |
| AC+DC voltage |
Range: |
– |
0 to 600.0 V |
– |
0 to 600.0 V |
0 to 1000.0 V |
| Accuracy: |
– |
±1.2% + 7LSD (50 to 60 Hz) |
– |
±1.2% + 7LSD (50 to 60 Hz) |
±1.0% + 7LSD (50 to 60 Hz)
±1.8% + 7LSD (DC 40 to 200 Hz)
±1.2% + 7LSD 200 to 400 Hz) |
| AC current |
Range: |
0 to 600.0 A |
| Accuracy: |
±1.8% + 5LSD (50 to 60 Hz)
±2.0% + 5LSD (100 to 400 Hz) |
| DC current |
Range: |
– |
0 to 600.0 A |
– |
0 to 600.0 A |
0 to 1000.0 A |
| Accuracy: |
– |
±2.0% + 5LSD (DC 50 to 100 Hz) |
– |
±2.0% + 5LSD (DC 50 to 100 Hz) |
±1.8% + 5LSD (DC 50 to 100 Hz) |
| AC+DC current |
Range: |
– |
0 to 600.0 A |
– |
0 to 600.0 A |
0 to 1000.0 A |
| Accuracy: |
– |
±2.2% + 7LSD (DC 50 to 100 Hz)
±2.7% + 7LSD (100 to 400 Hz) |
– |
±2.2% + 7LSD (DC 50 to 100 Hz)
±2.7% + 7LSD (100 to 400 Hz) |
±2.2% + 7LSD (40 to 100 Hz)
±2.5% + 7LSD (100 to 400 Hz) |
| Precise low current AC |
Range: |
0 to 60.00 A |
| Accuracy: |
±1.5% + 5LSD (50 to 60 Hz) |
±1.5% + 5LSD (50 to 60 Hz)
±2.0% + 5LSD (0.00 to 20.00 A, 100 to 400 Hz)
±3.0% + 5LSD (>20.00 to 60.00 A, 40 to 100 Hz)
±3.0% + 5LSD (>20.00 to 60.00 A, 100 to 100 Hz) |
| Precise low current DC |
Range: |
– |
0 to 60.0 A |
– |
0 to 60.0 A |
0 to 60.00 A |
| Accuracy: |
– |
±2.0% + 5LSD |
– |
±2.0% + 5LSD |
±1.5% + 5LSD (0.00 to 20.00 A)
±3.0% + 5LSD (>20.00 to 60.00 A) |
| Micro amps |
Range: |
– |
– |
0 to 2000 µA |
| Accuracy: |
– |
– |
±1.0% + 5LSD |
| Frequency |
Range: |
5.00 to 999.9 Hz |
| Accuracy: |
±1.0% + 5LSD (600 V range) |
| Range: |
50.0 to 400.0 Hz |
| Accuracy: |
±2.0% + 4LSD (600 A range) |
| Resistance |
Range: |
0.0 to 60.00 kΩ |
| Accuracy: |
±1.0% + 5LSD |
| Capacitance |
Range: |
0.0 to 2500 µF |
| Accuracy: |
±2.0% + 4LSD |
| Continuity beeper |
ON ≤ 10 Ω |
| Off > 250 Ω |
Temperature*
(Type K thermocouple) |
|
– |
– |
-40.0 to 752 °F
-40.0 to 400 °C |
| |
– |
– |
±1.0% + 3.0 °F (-40.0 to 14.0 °F)
±1.0% + 1.5 °F (>40.0 to 99.9 °F)
±1.0% + 2.0 °F (100 to 752 °F)
±1.0% + 1.5 °C (-40.0 to 10.0 °C)
±1.0% + 0.8 °C (>-10.0 to 99.9 °C)
±1.0% + 1.0 °C (100 to 400 °C) |
| Non-contact voltage |
10 V to 1000 V AC (50 to 60 Hz) |
| Phase rotation indication |
|
– |
– |
Rotation-R for main supply
Rotation-M for motors |
| Diode test |
|
• |
• |
• |
• |
• |
| Jaw opening |
|
1.18 in (30 mm) |
1.37 in (35 mm) |
1.18 in (30 mm) |
1.37 in (35 mm) |
2.0 in (51 mm) |
| Safty rating |
|
CAT III 600 V |
CAT IV 600V
CAT III 1000 V |
| Special Features |
| In-rush current |
|
– |
• |
&bul |
Includes: AMP-320 600A AC/DC TRMS Motor Maintenance Clamp Meter
- True-RMS
- Voltage up to 600 V AC/DC, Current up to 600 A AC/DC, resistance and frequency
- Temperature measurement from -40.0 to 752°F (-40.0 to 400°C)
- Low pass filter for variable frequency drives
- Amp-tip function for precise low current measurements down to the tenth of an Amp
- Capacitance measurement for start and run motor capacitors
- A third input terminal for 3-phase motor and phase rotation tests
- DC Microamps output for measurement of flame sensors
- Inrush current measurement for motor start-up monitoring
- Non-contact voltage detection
- Audible continuity and diode test
- Data hold, relative zero, MAX/MIN/AVG
- Large LCD backlit display
- Accommodates conductors up to 1.37 in (35mm)
- CAT III 600 V safety rated
Accessories: AMP-320 600A AC/DC TRMS Motor Maintenance Clamp Meter
- Banana Plug Type-K Thermocouple,
- Test Leads,
- Alligator Clip Set,
- (2) AAA Batteries (installed),
- User Manual,
- Carrying Case
