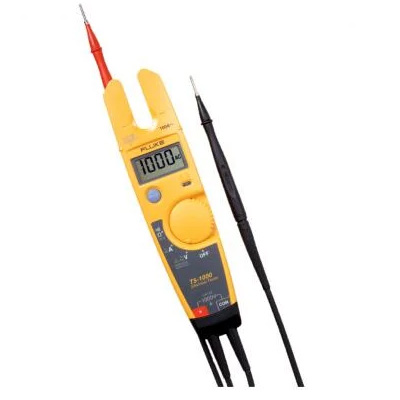

Fluke T5-1000 Voltage, Continuity and Current Tester:
Measure current up to 100 A without breaking the circuit with OpenJaw™ design. The T5-1000 Electrical Tester is a versatile troubleshooting tool to carry to every job site. Use it to check voltage, continuity, and current–all with one compact tool.
How to use the T5-1000
Just select volts, ohms, or current and the tester does the rest. The electrical tester auto-selects between AC and DC voltage up to 1000 V.
Plus, the OpenJaw™ design allows for fast and easy current measurements without making metallic contact, just slide a wire into the open fork. The continuity beeper offers quick go/no-go tests, and resistance measurements to 1000 Ω.
The electrical tester comes with detachable Slim Reach probe tips to work in tight spaces easily. Or hand-free work when you use the test lead holder to make the meter an “extended handle” for the probe.
Are you trying to find a good, electrical tester? Yes, this is the perfect moment and place for you. Tools Bangladesh is offering testing supplies and tools in Bangladesh. As a result, You could be able to purchase the desired tool from us in Bangladesh with the most affordable price and delivery options.
Key Features:
- OpenJaw™ design: measure current without breaking the circuit
- The tester automatically selects AC or DC voltage, up to 1000 V
- Work in tight spaces with detachable Slim Reach probe tips
- An integrated protection circuit allows the tester to stay connected to a voltage source longer than a solenoid tester. The T5-1000 Electrical Tester also boasts:
- A CAT III 1000V, CAT IV 600 V rating
- Withstands a 10 ft. (3 m) drop.
- The T5-1000 has an Auto-off mode to conserve battery life. The unit fits into an optional holster that attaches to a belt and neatly stows test leads.
- Fluke T5-1000 vs T6-1000
- The T5-1000 uses the OpenJaw™ design to measure current without metallic contact, just slide the wire in the open fork and the T5 will do the rest. It also measures voltage and continuity with the test leads. The T6-1000 (https://www.fluke.com/en-us/product/electrical-testing/basic-testers/fluke-t6-1000) is designed to use FieldSense™ technology to display both current and voltage simultaneously.
- “This is a very good meter and I trust my life with it almost every day” - Kevin
Specifications:
Specifications: Fluke T5-1000 Voltage, Continuity and Current Tester
| Specifications |
| Jaw opening |
12.9 mm (0.5 in) |
| Max wire size |
1/0 THHN Cable |
| Current range AC rms |
0 to 100.0 A |
| Accuracy AC current (50/60 Hz) |
3% ± 3 counts |
| AC response |
Averaging |
| Voltage range AC/DC |
0 to 1000 V |
| Voltage accuracy |
| AC |
1.5% ± 2 counts |
| DC |
1% ± 1 count |
| Resistance range |
0 to 1000 Ω |
| Continuity beeper threshold |
On at < 25 Ω, off at > 400 Ω |
| Volts indicator LED threshold |
Guaranteed on by 30 V AC |
| Environmental Specifications |
| Operating temperature |
-10°C to 50°C |
| Storage temperature |
-30°C to 60°C |
| Humidity (without condensation) |
| 0% to 95% (5°C to 30°C); |
| 0% to 75% (30°C to 40°C); |
| 0% to 45% (40°C to 50°C) |
| Dust/water resistance |
Yes |
| Operating altitude |
2000 meters max |
| Temperature coefficient |
0.1 x (specified accuracy)/°C (< 18°C or> 28°C) |
| Safety Specifications |
| Measurement Category |
IEC 61010-2-032, IEC61010-2-033: CAT IV 600 V / CAT III 1000 V, 100 A ac |
| Agency approvals |
CSA, TUV |
| Maximum voltage |
1000 V between any terminal and earth ground |
| Mechanical and General Specifications |
| Size |
30.5 x 51 x 203 mm |
| Weight |
300 g |
| Warranty |
Two-years |
| Battery life |
200 hour zinc chloride, 400 hour alkaline |
| Battery type |
2 x AA |
| Low battery indicator |
Yes |
| Current sensor opening |
12.9 mm |
