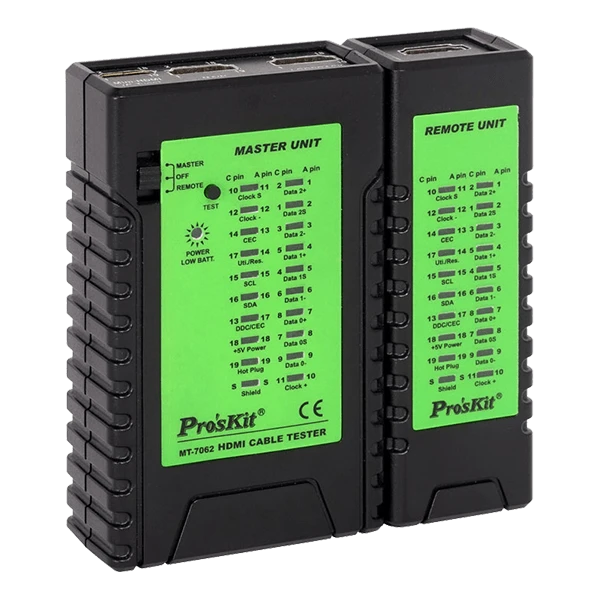

Tester for measuring HDMI cables.
This allows the tester to measure the HDMI cable type A and C. The measurement can be performed automatically or manually. Tester displays the pin configuration including mutual shielding.
Key Features: Proskit MT-7062 HDMI Cable Tester
- Test all HDMI cables with Type A to A, A to C and C to C connectors
- Design with loopback function allows test HDMI type A to A, A to C on main unit.
- Automatically fast & slow-scan for testing all conductors status in a cable, Manual test for step by step detecting individual conductors for intermittent faults.
- Automatically detect wiring on HDMI type A or type C condition in straight, short, open, crossover in all RGB conductors.
- Quickly troubleshoot and verify HDTV installation and DIY termination in the field.
Specifications: Proskit MT-7062 HDMI Cable Tester
| Cable versions support | HDMI Cables with type A & C connectors conforming to 1.0, 1.1, 1.2, 1.3, 1.3a, 1.3b, 1.3c, 1.4, 1.4a, catagory 1 and catagory 2 cables |
| Support test (master unit and remote unit) | 19 pin-to-pin wire map and shielding detection |
| Test interface of Master unit | HDMI (type A) ×2, Mini HDMI (type C) ×1 |
| Test interface of Remote unit | HDMI (type A) ×1, Mini HDMI (type C) ×1 |
| Test Mode | Fast scan / Slow scan / Step by step |
| Beeper indication | Yes |
| Low battery indication | 6.0V |
| Power source | DC 9V ×1 (not included) |
| Dimensions | Master unit: 103×66×27mm, Remote unit: 103×35×27mm |
| Environment | Operation: 0°C to 40°C (32°F to 104°F) <80%RH Storage: -10°C to 50°C (14°F to 122°F) < 70%RH |
| Weight | 130g ( not include battery) |
| Package | Blister Card |
Includes: Proskit MT-7062 HDMI Cable Tester
- Proskit MT-7062 HDMI Cable Tester
- N/A
